Uploaded November 2024 | Updated September 2026, 6 days ago
******STOP PRESS!!****** LED Strip problem FIXED! See : youtu.be/tgdDcaK4k48

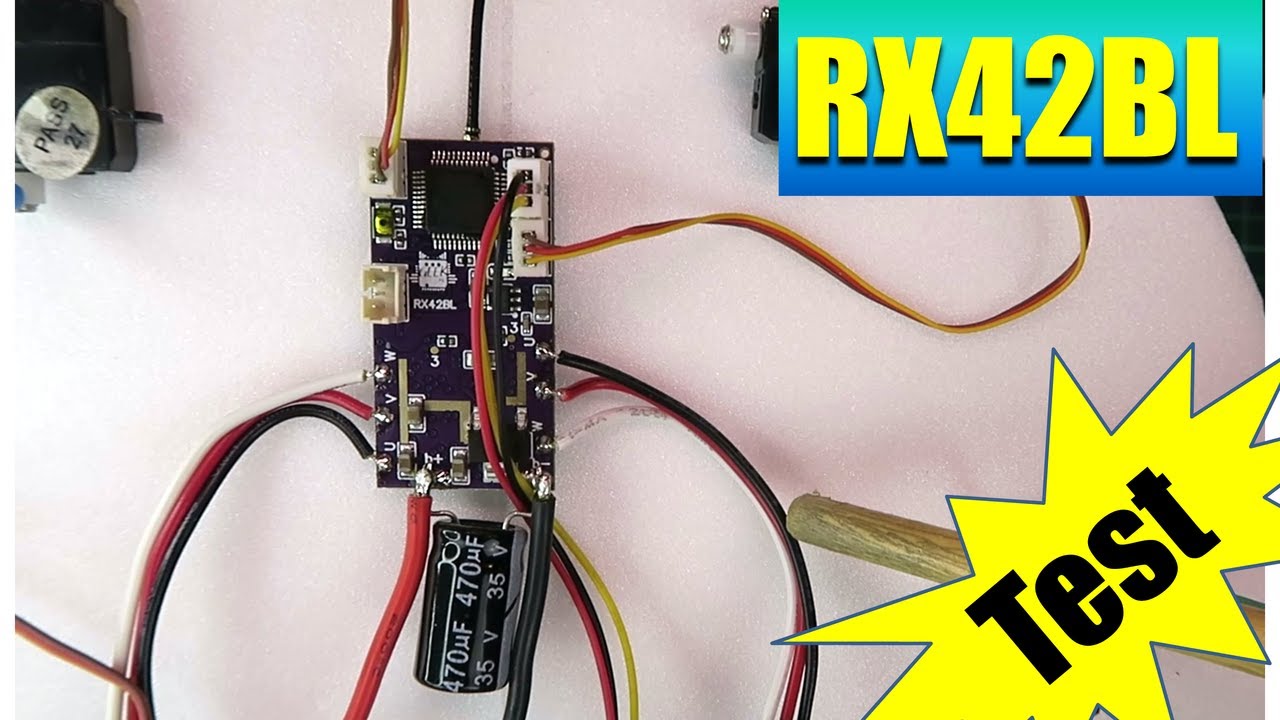

🎛️ Multiprotocol Receiver: The RX42BL receiver supports Fly Sky, WiFly, and Microzone protocols, compatible with the RadioMaster 4-in-1 module.
🔧 Compact Specifications: Measuring 18x35mm and weighing 3.7g, the board integrates five channels and two ESCs running BL Heli firmware, each handling up to 12A.
🚁 Versatility in Craft Usage: Designed primarily for small craft with three operational modes: standard PWM control, differential thrust, and outputting SBUS or PPM signals.
🌐 Telemetry Features: Provides basic telemetry like battery voltage and RSSI, though additional telemetry features depend on the protocol used.
⚡ Power Adjustments: Soldering bridge adjustments enable 1S operations, while decoupling capacitors reduce noise in the system.
🛠️ Assembly and Testing: Offers flexibility with programmable ESC parameters and easily swappable motor wires. Binding the receiver involves a straightforward process using the Fly Sky 2A protocol.
📊 Mode Switching: Modes are altered via button press during receiver power-up, with LED signals indicating the active mode.
🔗 Please tell me if any of the links provided no longer work!!
🛒RX42BL Multi Protocol 5CH Receiver Built-in Dual 12A BLHeli Brushless ESC with BEC banggood.com/custlink/KGvI8EtMhv?title=RX42BL
🛒 A1504 2300kv/2700KV 9G Micro Brushless Motor https://s.click.aliexpress.com/e/_DBwqCAV
🛒 Nazgul Cine 3040 3X4X3 3-Blade Propeller https://s.click.aliexpress.com/e/_DEHv3Vn
🛒 RadioMaster Pocket banggood.com/custlink/KDK9IYPzRi?title=Radiomaster Pocket
🛒 ToolkitRC M8S 400w 18A Balance Charger/Discharger Servo Tester https://s.click.aliexpress.com/e/_Dl9svGN
🛒 RadioMaster Pocket Hall Gimbal Transmitter https://s.click.aliexpress.com/e/_DBpJzqt
🔗 RX42BL Manual : drive.google.com/file/d/1-wA_qEHwwg4aFx_JlcUujcrAcdD37MY6/view?usp=sharing
👀 Click Here to Subscribe bit.ly/1nformatica
🛠 I buy most of my gear from https://s.click.aliexpress.com/e/_APpCVa You can help me by using these links!
👍 Follow on Facebook facebook.com/1nformatica
💲 If you would like to buy me a coffee: paypal.me/1nformatica
00:00: Introduction to the RX42BL receiver and features.
00:32: Overview of multiprotocol support and FlySky compatibility.
01:02: ESC specifications and parameters.
01:57: Explanation of board pinout and ESC wiring.
03:15: Receiver binding process with FlySky protocol.
06:14: Mode 3 configuration and SBUS/PPM demonstration.
08:25: Practical testing of current limits with motors.
10:28: LED strip troubleshooting discussion.
12:46: Final review of the board's capabilities.
13:25: Closing remarks and performance recap.
