A closer look at the Moon Tilt (or Moon Terminator) Illusion digging deep into the math.
Math is the language of science. If I can science that, then I should be able to math it!
skip ahead:
@0:23 Video showing example of the illusion
@1:44 Simulation of the illusion (from my previous video on this)
@2:43 New simulation - this time to scale

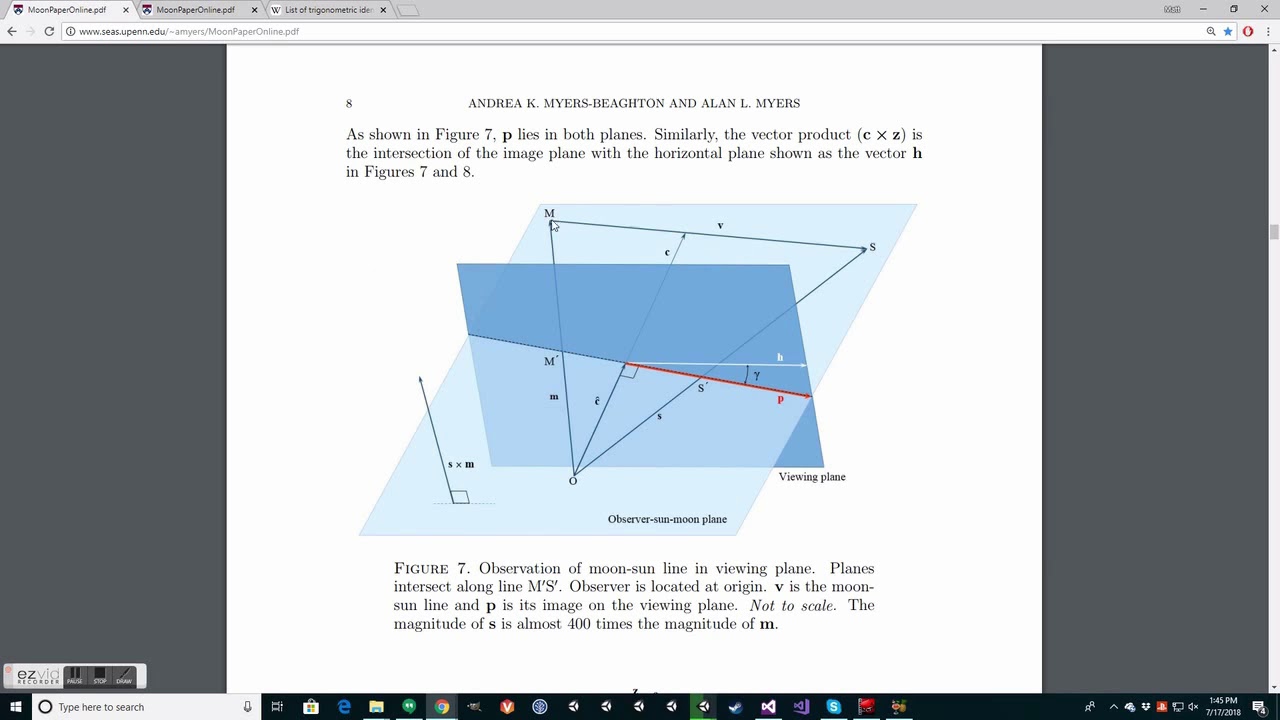

@4:54 Introducing the paper
@5:44 tl;dr just give me the answer please
@8:15 Going through all the math in the paper
@21:20 The first time we see the answer in the paper
@22:04 Reducing and simplifying the equation
@26:41 Going through Appendix A in the paper
@31:31 Putting it in terms of the input angles
@31:56 Going through Appendix B in the paper
@36:56 The final answer for "alpha" - the apparent direction of the light
@37:13 Showing the angle in the 3D sim
@41:09 Demonstrating that the answer is independent of the distances. It is based only on the angles
@42:30 Getting the "beta" from the paper - the expected lighting angle
@45:19 Appendix C from the paper
@47:29 Putting "beta" in terms of the input angles
@47:35 Appendix D from the paper
@48:49 The final form of "beta"
@49:18 A different approach... matrix transformations
@50:30 Looking at the new approach in the 3D sim
@51:14 Why all this math?
@52:19 Summary
