Thought it was about time to finnish up the home made microphone preamp. I got like a billion other things to do and this is REALLY holding me back so I just want to get this done, and out of the way.
0:00 intro and schematic of power supply converter circuit
2:09 test of capacitive divider circuit
3:11 testing the capacitive divider and virtual gorund in the preamp
4:15 audio test of preamp powered on capacitive divider and virtual ground
5:02 supply circuit for level meter
7:02 more rabbiting on
7:36 supply jack and power switch added

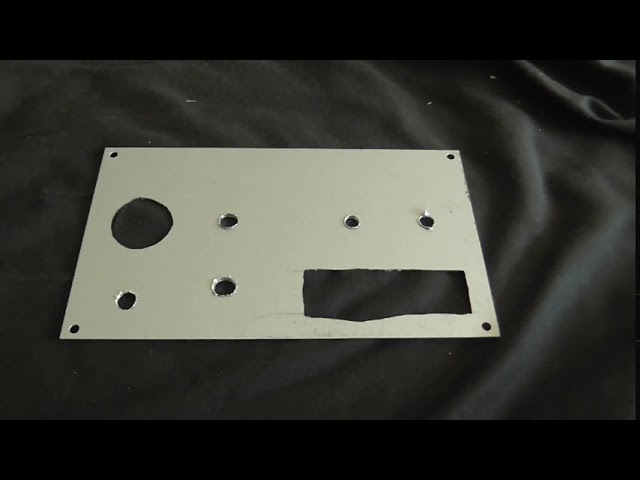

8:05 my failed attampt at metal work
8:21 front cover finnished
8:55 my camera sucks
9:20 the finnished "product"
10:14 talkthrough of final schematic
11:53 audio tests of finnished product
16:12 full schematic
