Uploaded January 2021 | Updated September 2026, 3 weeks ago

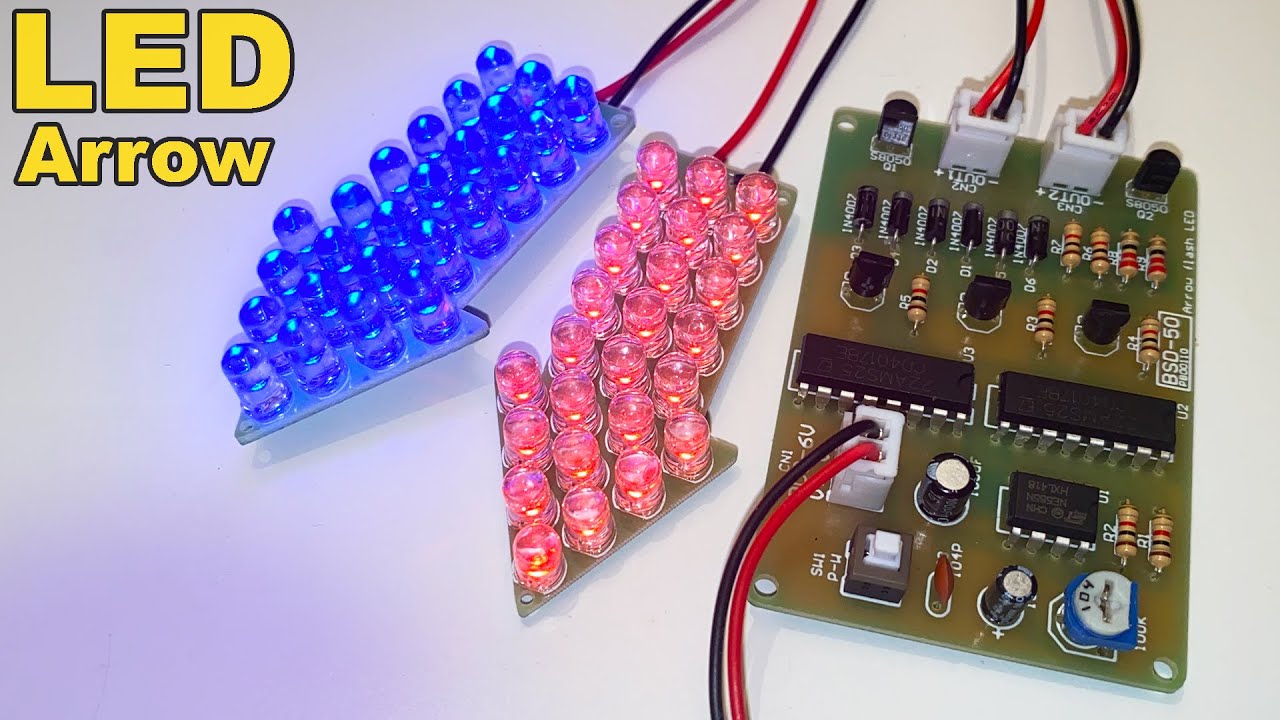

Today I am assembling this KIT with which I can simulate direction indicators, the circuit simulates only direction indicators, always lighting up with the same cycle. Unfortunately it is not possible to use it on the road.
► Buy this KIT: icstation.com/blue-dual-color-flashing-light-analog-traffic-signal-indicator-soldering-practice-tranining-p-15095.html
The circuit works thanks to one NE555 and two CD4017 - Unfortunately the manufacturer of these KIT did not provide the circuit diagram.
Components:
1x NE555 IC
2x CD4017 IC
25x Red LED 5mm
25x Blue LED 5mm
1x Main PCB
2x Arrow PCB
6x 1N4007 Diode
2x 22Ω Resistors
7x 1KΩ Resistors
5x S8050 Transistors
1x 100KΩ Trimmer
1x 104 P Capacitor
1x 10 uF Electrolytic Capacitor
1x 100 uF Electrolytic Capacitor
1x Switch On/Off
3x 2 Pin power connector
3x Couple Wire
Features:
- Work Voltage: DC 3V~6V
- Work Current: 50mA
- LED Color: Red and Blue
- Flashing Speed is Adjustable
- Work Temperature: -40℃~85℃
- Work Humidity: 0%~95%RH
- Main PCB Size(Installed): 66*45*13mm
- LED PCB Size(Installed): 61*29*11mm
Current absorption test:
100mA at 5V (Blue LED Arrow)
130mA at 5V(Red LED Arrow)
160mA at 5V (Both Arrows LED)
TEST: drive.google.com/file/d/1DdtFHHT9nKMb_SmKxbntO4ZedGkwEtoO/view?usp=sharing
✅ Subscribe to my YouTube channel It's FREE!
Chapters:
0:00 - Intro
0:05 - Unboxing
0:47 - Assembly
3:20 - Test
