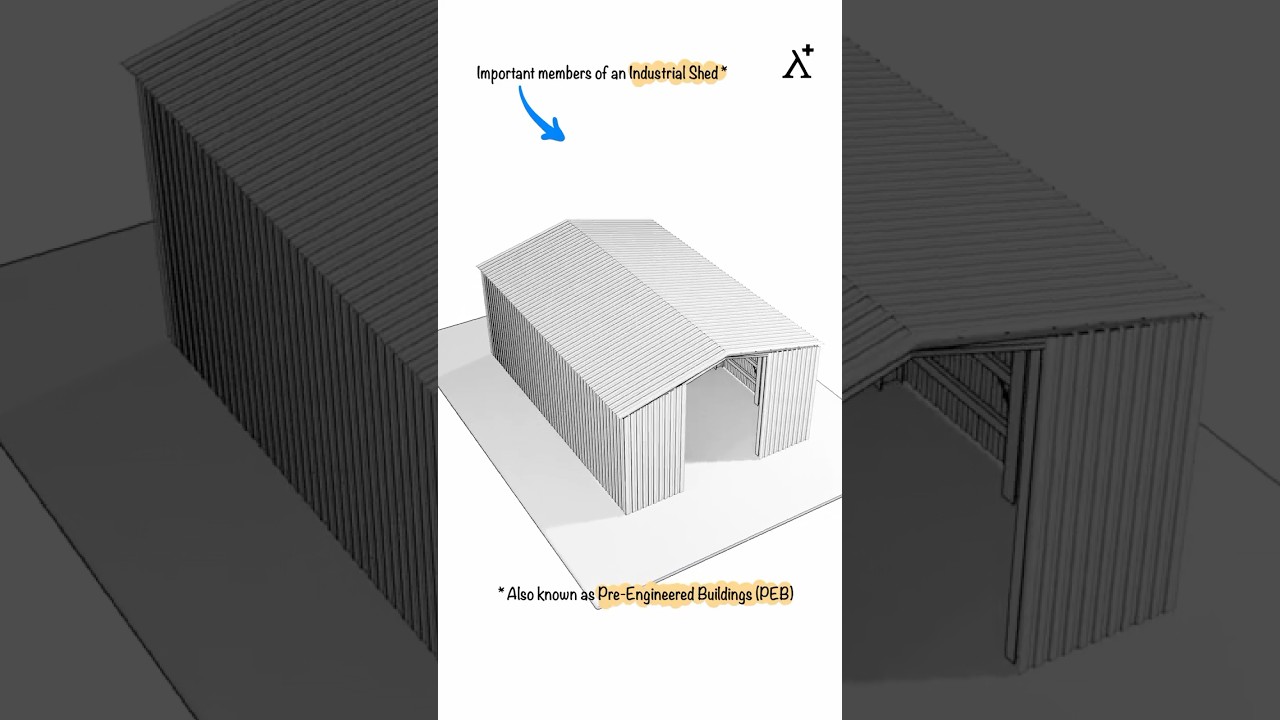

This short video explains the important structural components of an industrial shed, highlighting their roles in stability and load distribution.

Key Elements:

Rafters: Main load-bearing members supporting the roof.

Roof Purlins: Horizontal beams distributing roof loads to rafters.

Eave Purlins: Supporting the overhanging roof edges.

Gable Wall: The triangular portion of the end wall, providing lateral stability.

Gable Frame: Structural frame supporting the gable wall.

Stanchions (Columns): Vertical load-bearing members transferring roof and floor loads to the foundation.

Beams & Channels: Providing additional structural support and load distribution.

Understanding these components is crucial for designing a stable, durable, and efficient industrial shed that can withstand wind, seismic, and live loads.
