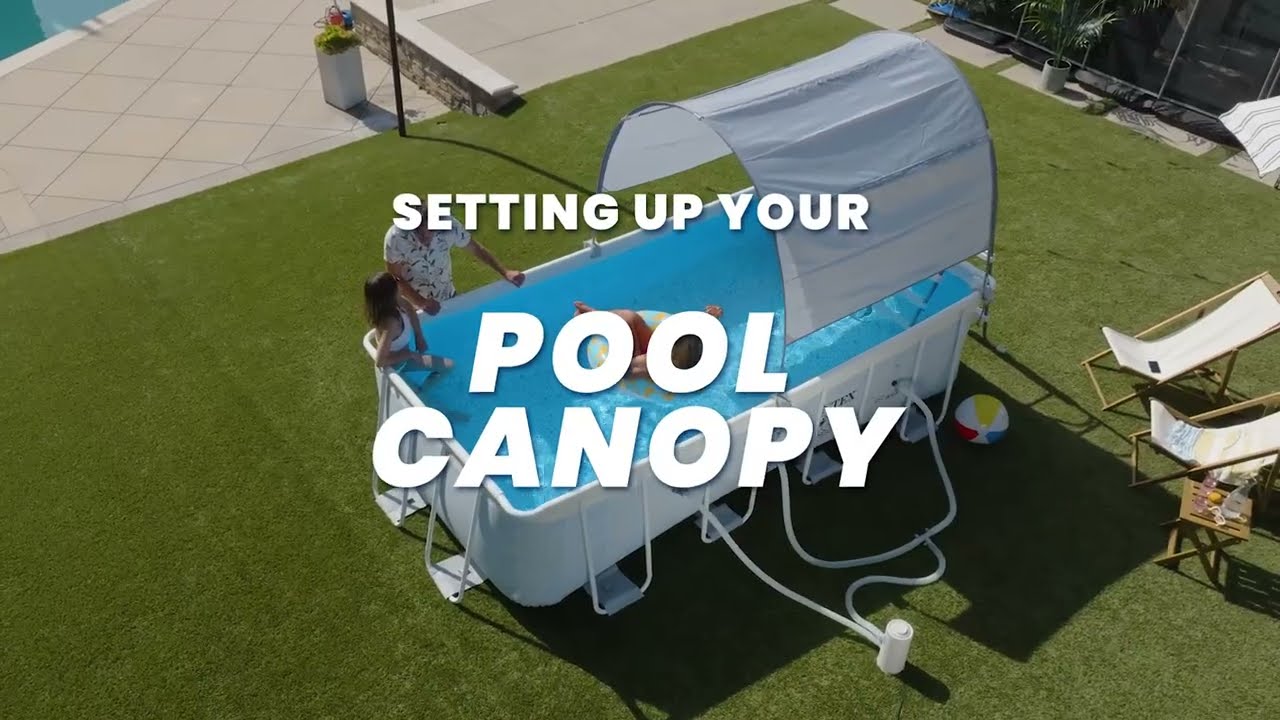

Learn how to set up your Intex Pool Canopy in 10 easy steps:

1. Spread out the canopy with the sleeves facing up – 00:12
2. Insert end of the “A-1” rod without the metal coupling into the canopy sleeve – 00:24
3. Insert the “A-1” rod into a fiberglass rod joint at each sleeve opening, then insert the “A-1” rod into the next sleeve opening – 00:29
4. Connect 3 more “A-1” rods through the canopy sleeve, inserting them into a joint at every sleeve opening – 00:39
5. Connect the “A-2” rod with the las A-1 rod coupling – 00:46
*Repeat steps 2 through 5 for the other side of the canopy sleeve – 00:50
6. Slide the “B” rods through the short sleeves on the canopy – 00:56
7. Insert both ends of the “B” rod into fiber glass rod joints – 01:04
*Repeat steps 7-8 for the rest of the B rods – 01:12
8. Attach the mounting clamps over the horizontal beams of the pool – 01:16
9. Insert both ends of the canopy rods into the mounting clamps. Two people are needed for this step – 01:24
10. Hook the canopy rope under the mounting clamp and tighten it with the rope buckles – 01:43
