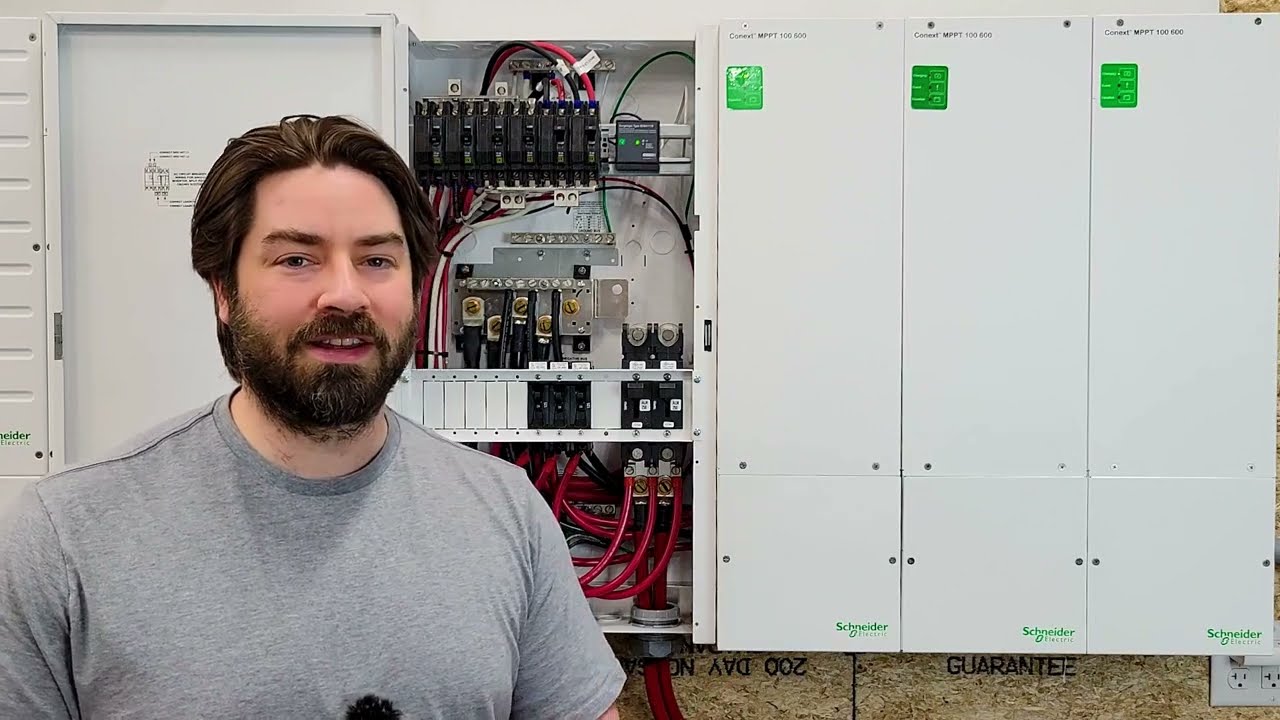

I'm installing 3 solar MPPT charge controllers into my Schneider off grid system. Each of these MPPT charge controllers can accept up to 600 Volts from the PV array, and charge the battery at 100 Amps. Schneider is known for it's industrial equipment, and these charge controllers are no different. These can run at full load (100A) continuous in an environment up to 40°C (104°F).
---------------------------------------------------------------
