Today we will take a look oil system of the A320 CFM engine
few extra informations:
The lubrication system of one engine is completely self-contained and separated from the other engine or aircraft fluid systems.
Oil is distributed to components requiring lubrication and cooling by a lubrication pump element. Distribution is controlled by nozzles which direct oil at each component.
Scavenge pump elements in the pump remove oil from the engine bearing sumps and gearboxes and return the oil to the tank through the servo fuel heater and main oil/fuel heat exchanger to cool the returning oil.
The lubrication system consists of four subsystems, each of which accomplishes a specific function to ensure adequate lubrication for the bearings and gears of the engine :
- the lube supply system
- the lube scavenge system
- the oil seal pressurization system
- the sump venting system.

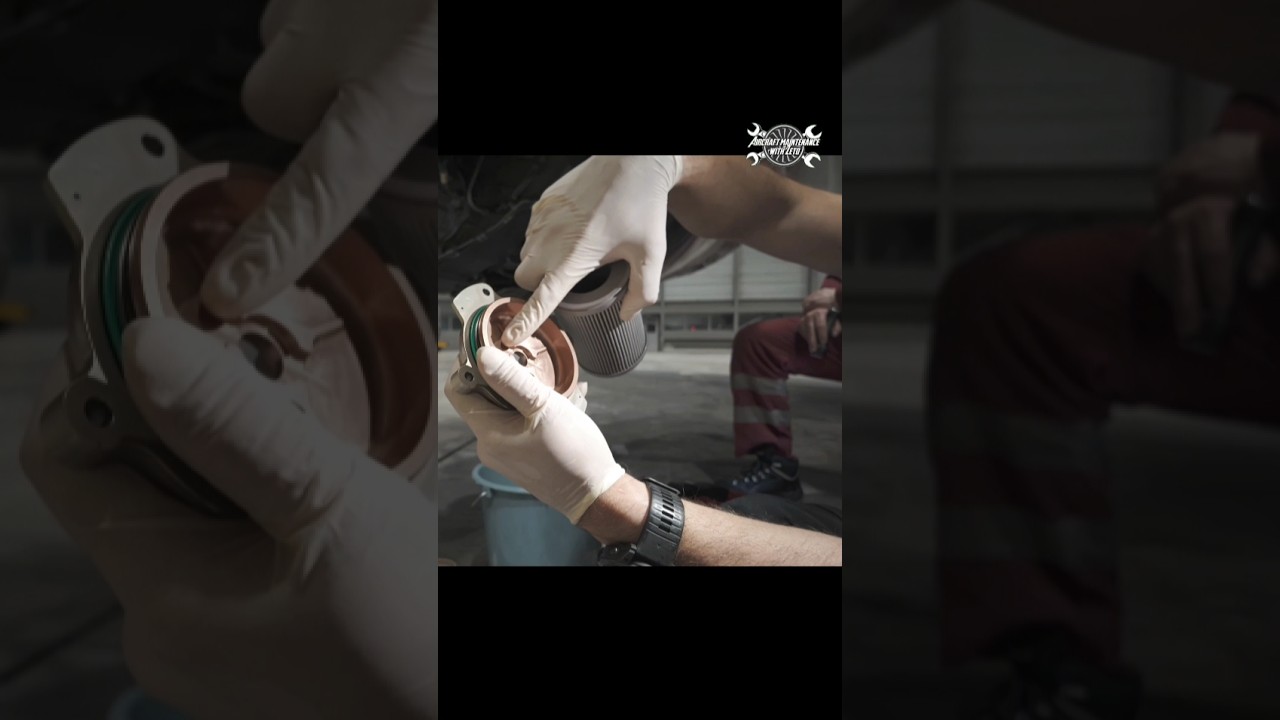

And since you know how this system works, let me show you how to install one of the filter
*********video is just for information purposes always stick to the latest maintenance manual*********
