Our old DELL 1250C color laser printer has been part of our household for years, and when it finally started throwing errors, I wasn't ready to replace it.
The printer initially reported that the CTD sensor needed cleaning. I cleaned the sensor, but that only led to another error: 009-654-0x02110000.
So I had to go much deeper.
After opening the printer, I found that the waste-toner auger leading into the black cartridge was clogged. The black cartridge has a separate waste-toner compartment, and cleaning the blocked mechanism seemed like it might finally solve the problem — but the error remained.
At that point I went after the CTD sensor itself.
The problem? The printer clearly wasn't designed to make this component easy to service. I actually had to cut into the plastic housing to reach the screws and remove the sensor. Once I had it out, I discovered a tiny adjustable potentiometer on its PCB. I carefully adjusted it, presumably changing the sensor's gain or LED drive level, and finally the printer came back to life.

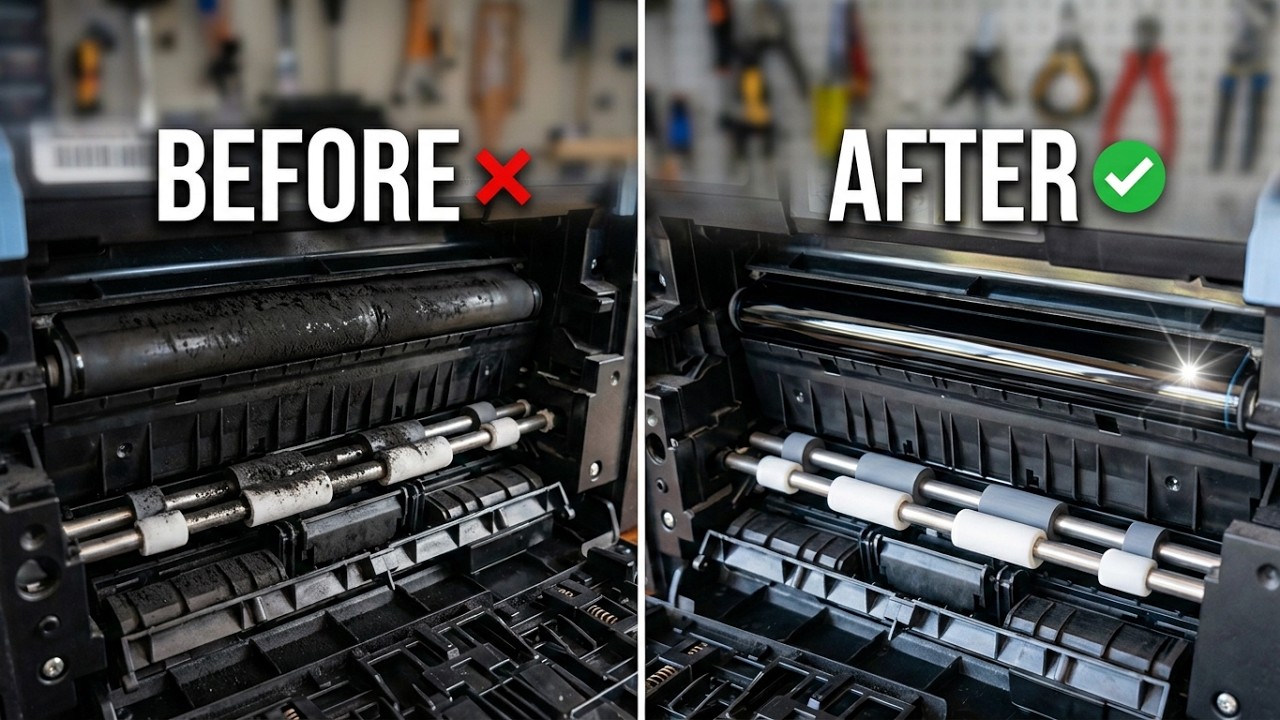

While I had the printer apart, I also treated the rollers with rubber renew to fix an intermittent paper-feeding problem.
And after all that, our old DELL 1250C is working again — 100%.
This repair was a good reminder that many products aren't necessarily impossible to repair. Sometimes they are simply designed in a way that makes repair unnecessarily difficult.
This printer was never really meant to be serviced by the owner, but with some persistence, careful disassembly and a willingness to go further than the service instructions, I managed to bring it back to life.
After so many years of use, I'm really happy we didn't have to throw it away.
