Jarrod G [ImAFutureGuitarHero] | HSC Homemade Guitar Project: All pickup combinations @ImAFutureGuitarHero | Uploaded August 2017 | Updated October 2024, 3 hours ago.
Hello. I made this video as part of my assignment for woodwork in my final year of high school for my guitar, which I will be using in many future videos. This project is the reason I haven't been active for the past 4-5 months on YouTube.

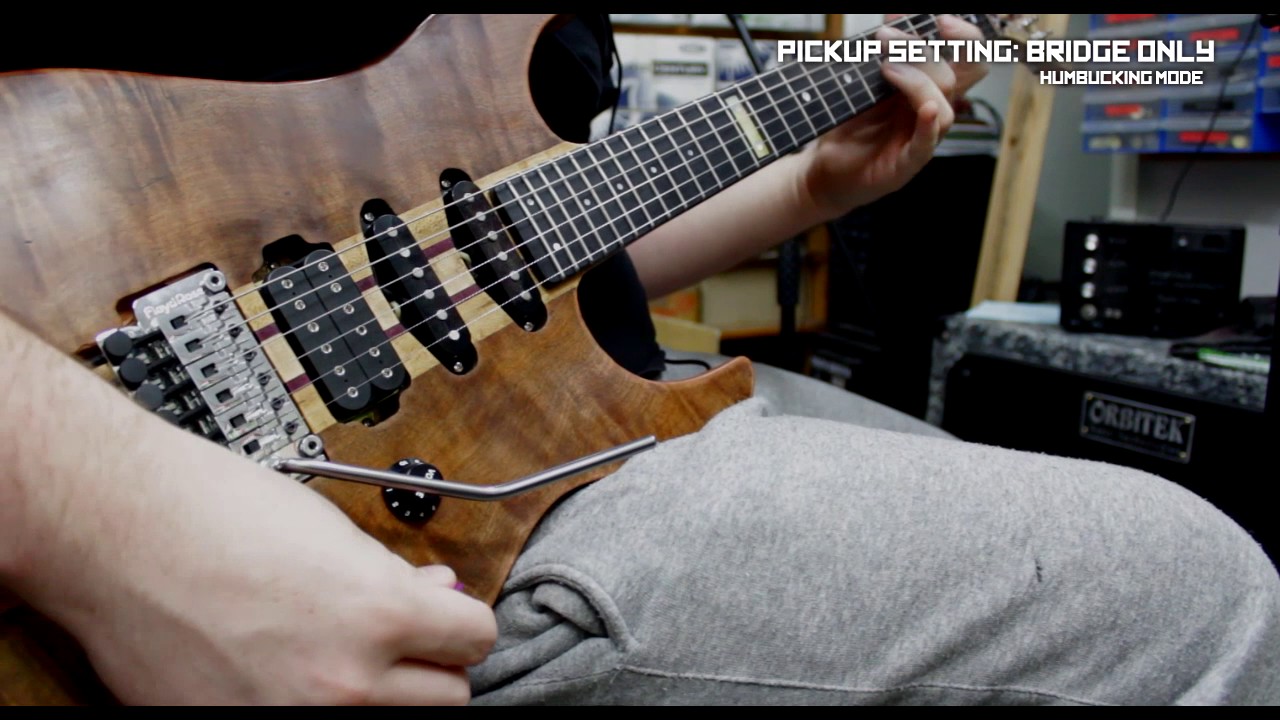

This video shows all pickup combinations possible with a three on/off switch + coil split function array on a guitar.
The bridge pickup seems to be wired out of phase to the other single coil pickups, so when it's used with any other pickup a lot of the output drops, and the sound goes very thin.
The guitar is fully shielded, in the control cavity, around the output jack and in the pickup cavities, as well as the cover plate itself, plus the bridge is grounded. However, the guitar still produces some noise when the strings aren't muted by the hand. This is due to the lack of shielding on the front of the pickups themselves, being plastic covers/no cover at all on the humbucker.
Original song: "Lost In The City" by Mal Eastick/Bluefish Records, from the 2000 album "Spirit"
youtube.com/watch?v=oO7eXB7LAQg
--------------------------
GUITAR SPECS:
Body:
- Birdseye Maple + Purple Heart 5-ply centre stripe
- Australian Blackwood wings
- Figured Australian Cherry top
Neck:
- Birdseye Maple + Jarrah + Blackbutt 5-ply neck
- African Ebony fretboard
Features:
- DiMarzio D Activator (Bridge)
- DiMarzio True Velvet (Middle)
- DiMarzio True Velvet (Neck)
- Floyd Rose Original Tremolo (Chrome)
- Grover Automatic Locking Tuners
- 25.25" scale length
- 24 jumbo stainless frets
- Dot inlays (6mm and 3.175mm)
- Block inlay on 12th fret
- Set-neck design
- 3 separate switches for pickup operation
- Coil-split on tone pot for bridge humbucker
--------------------------
Guitar: Homemade guitar, based on a Jackson SL1 Soloist
Guitar Amplifiers: Two Orbitek amplifiers in stereo, with spring reverb on
Guitar Effects: Line 6 DL4 Delay
Bass Guitar: Hohner Jack Bass Custom V
Bass Amplifier: Peavey Minx 110
Drums: Programmed with Sonoma KitCore
Camera: Canon EOS 1300D
DAW: Sony Acid Pro 7
