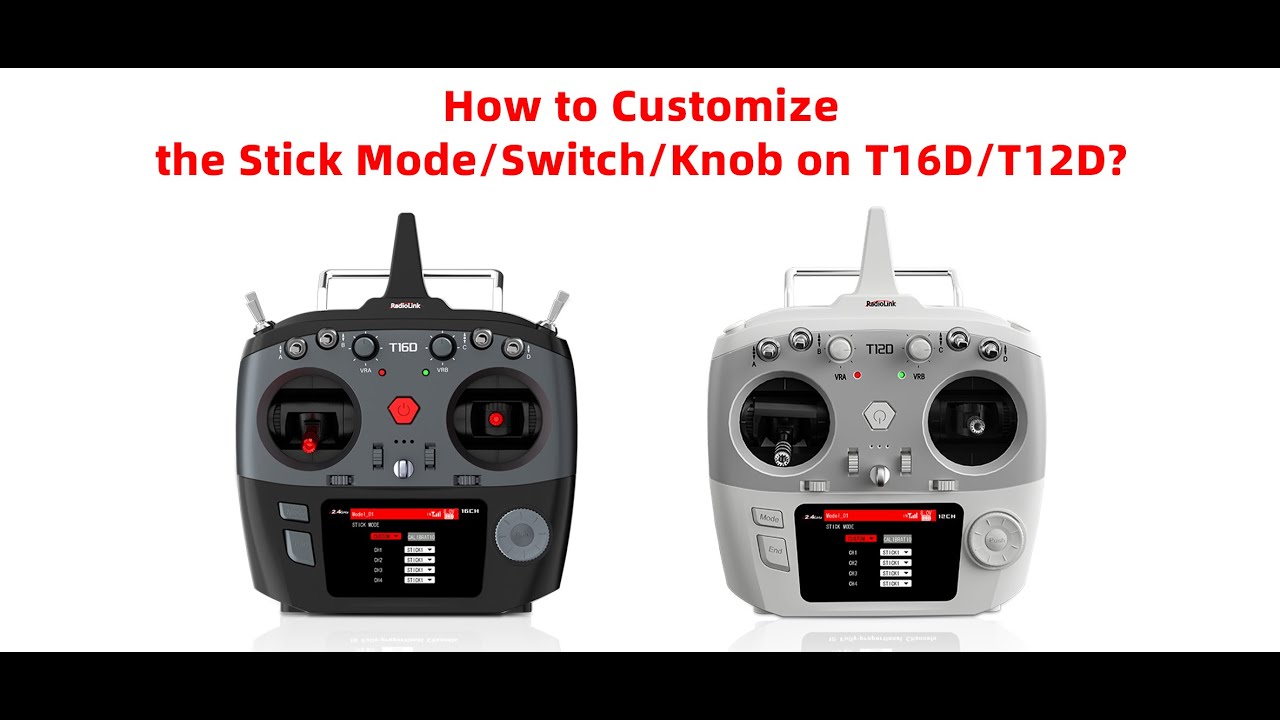

How to Customize the Stick Mode/Switch/Knob on T16D/T12D?
In general, the two sticks control the channel 1 to channel 4 of the model.
Enter main menu--Transmitter Settings--Stick mode. There are four stick modes which are often used.
You can check the introduction of the four stick modes on the screen. And the stick mode of this transmitter is stick mode 2.
So this is channel 1, stick 1. aileron.
This is channel 2, stick 2, elevator.
this is channel 3, stick 3. throttle.
This is channel 4, stick 4, rudder.
But there may be some situations that you don’t want the two sticks to control channel 1 to channel 4. Instead, you want use the switches or knobs to control channel 1 to channel 4. You can achieve this function by selecting the custom mode.
Select Custom. Then you can assign the switches you want for channel 1 to channel 4 here.
You can set switches from SWA to SWH, VRA to VRD.
For example, I assign SWA to control CH1, SWB to CH2, SWC to CH3, and VRB to CH4.
After that, enter Basic menu--AUX-CH. Please also check the switches for the other channels. Make sure the switch is not used to control the two channels. Otherwise, there will be mix for the two channels.
I can also assign the sticks to control the other channels, For example, I assign STK1 to control channel 5, and STK 3 to control channel 6.
Return to the servo display.
SWA is used to control channel 1
SWB for channel 2
SWC for channel 3
VRB for channel 4
STK1 is used to control channel 5
STK3 for channel 6
That is to say, in custom mode, you can customize the switches for every channel, which will be helpful for users to control different models.
For more details of T16D, please refer to the link:
radiolink.com/t16d
For more details of T12D, please refer to the link:
radiolink.com/t12d
If any question about RadioLink products please feel free to contact us. Our email is: after_service@radiolink.com.cn
