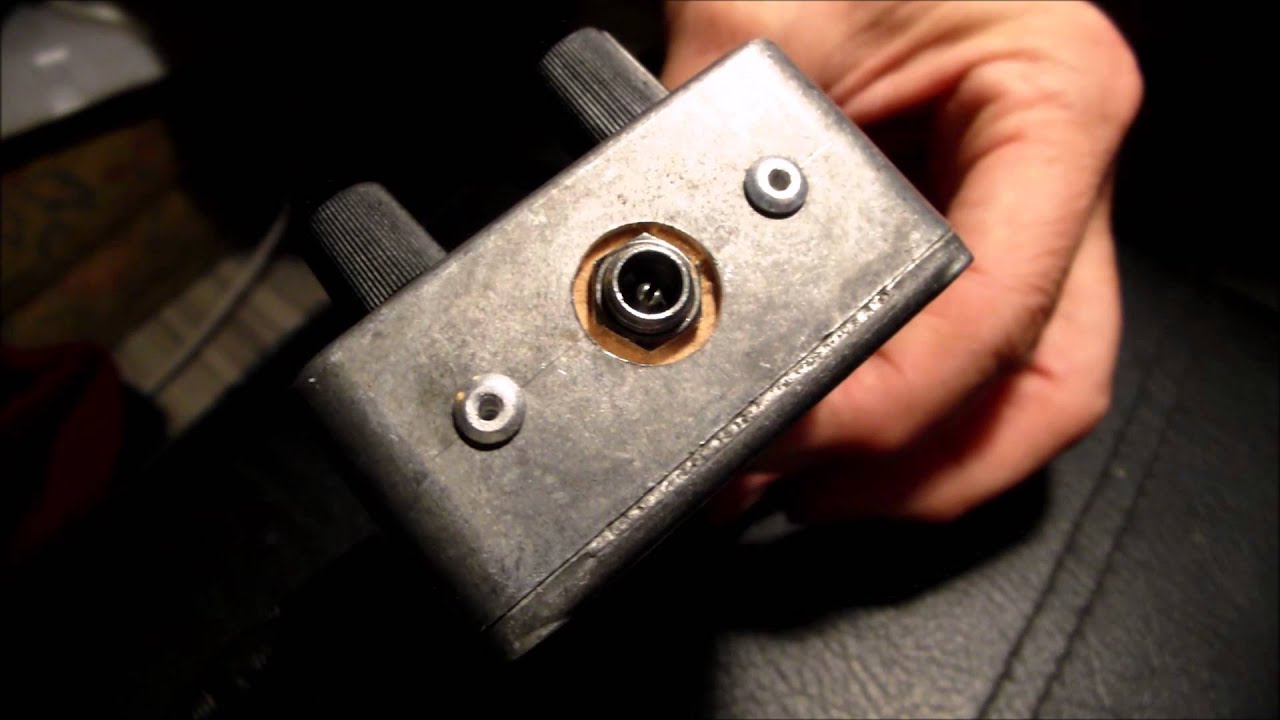

It's interesting to make comparisons between various fuzz boxes: most guitarists can perceive differences between I.C., Si, tube/valve and Ge. Using a combination of Si and Ge semiconductors, this one is an old circuit from a 1960s electronics hobby magazine. It has three transistors: a metal can BC109, a Mullard Germanium OC107, and a Mullard Germanium AC127. The circuit was originally designed for use with PNP transistors and I used NPN ones instead so that the unit has a negative ground. All the capacitors had to be reversed to suit the revised grounding and there's a reverse polarity protection diode, so the unit won't get ruined if the wrong polarity PWR unit is connected.

The LED 'on' indicator is wired in such a way that it doesn't use up any extra battery power: as it has a 2.5 volt drop, is inserted at a point where a 2.5 volt drop is needed. If used in it's battery only configuration, the PP3 9 volt one can wear down to about 3.5 volts (near exhaustion) before any unit malfunction can be perceived. Battery lasts for really long time because this fuzz only draws about 3mA. Negative grounding is important when in use with other equipment running from the same supply.

The use of three transistors enables a long sustain and unique sounding distortion. It's also reasonable to state that this fuzz is more 'fuzzier' than most over fuzzes so it's a sort of 'megga fuzz'. Left hand knob is output level: which should be adjusted so that the 'through' (bypassed) setting is approximately the same audio level as the inserted effected level. The right hand knob is effect intensity. As can be demonstrated there is a very great deal of fuzz intensity. The only disadvantage with this sort of circuit is a background hiss that is a little higher than Si only fuzzes. This, however, is barely noticeable in normal use. It also has about 15 db boost for insensitive amplifiers.
