Uploaded January 2018 | Updated November 2026, 2 hours ago
Modules used:
Thomas Henry VCO X-4046
birthofasynth.com/Thomas_Henry/Pages/X-4046.html
Roland TB-303 filters based on the schematic here. Some of the classic 303 sound is supposedly from the specific transistors Roland used, but I just used 2N2222s for the NPNs.
timstinchcombe.co.uk/index.php?pge=diode2
TR-808 drum voices: kick, snare, clave. Schematics can be found all over the place
808 kick going through an Engineer's Thumb compressor, which I accidentally made with NE5532 op amps instead of TL07x, which makes it work not as intended, but gets just STUPID dirty when set up right.
valvewizard.co.uk/engineersthumb.html
Percussion going through a Polyfusion high-pass (LOVE this filter)
synthfool.com/docs/Polyfusion/polyfusion_vcfhi.gif
Noise is from a reverse-biased transistor, taken from the noise-section of Ken Stone's Cynare project.
cgs.synth.net/modules/cgs47_cynare.html
Envelopes generated by a nice simple AR generator designed by Thomas Henry
electro-music.com/forum/topic-61297.html

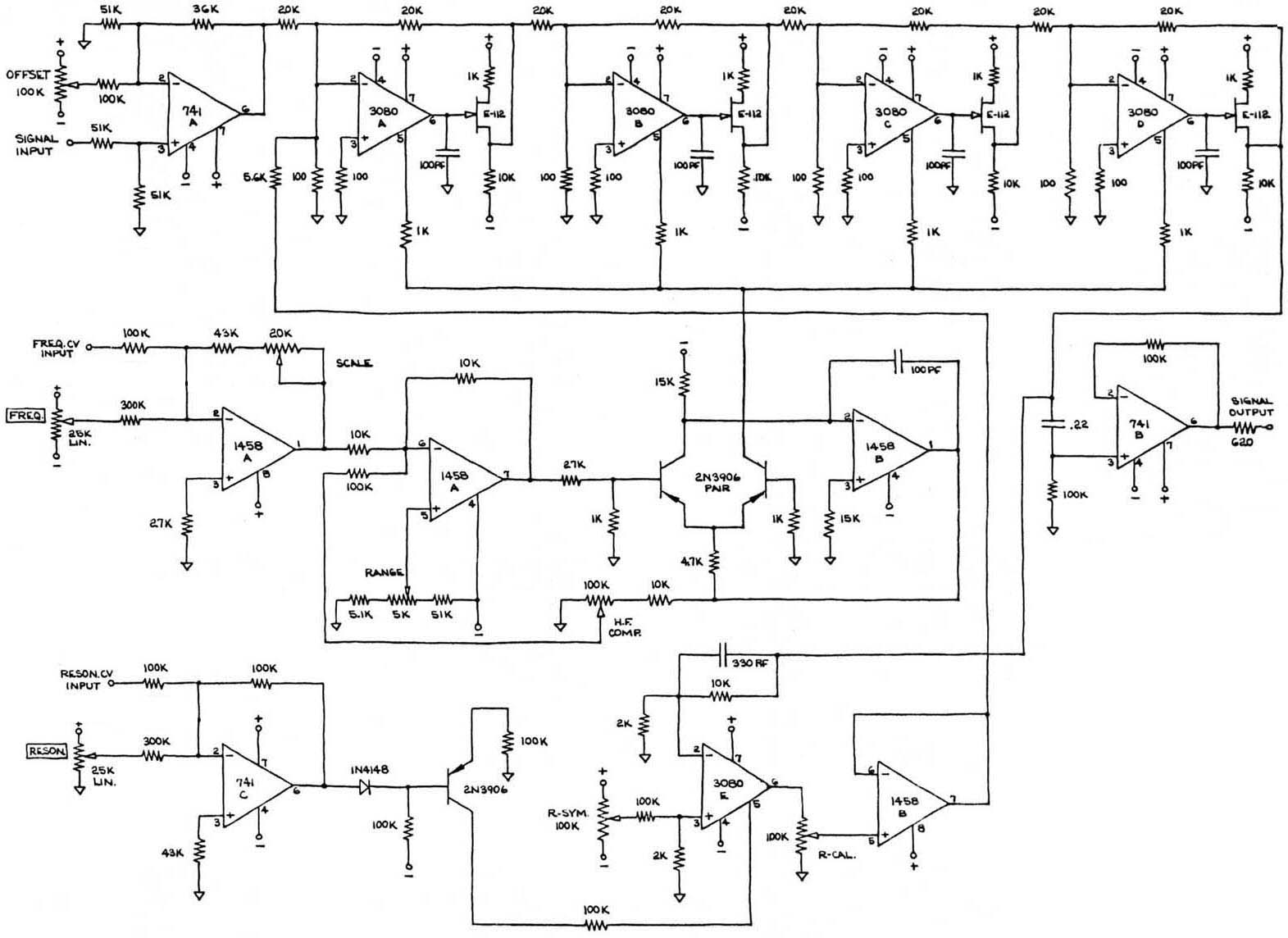

There's some sidechain ducking going on of the noise thing, which uses a Polyfusion envelope follower and some other wizardry... my compressor doesn't have a sidechain out. But the main noise shaping is the Polyfusion low pass VCF
synthfool.com/docs/Polyfusion/polyfusion_vcf.jpg
