Last operations (tapping) on the body, then it’s finished …
↓↓↓ Complete description, time index and links below ↓↓↓

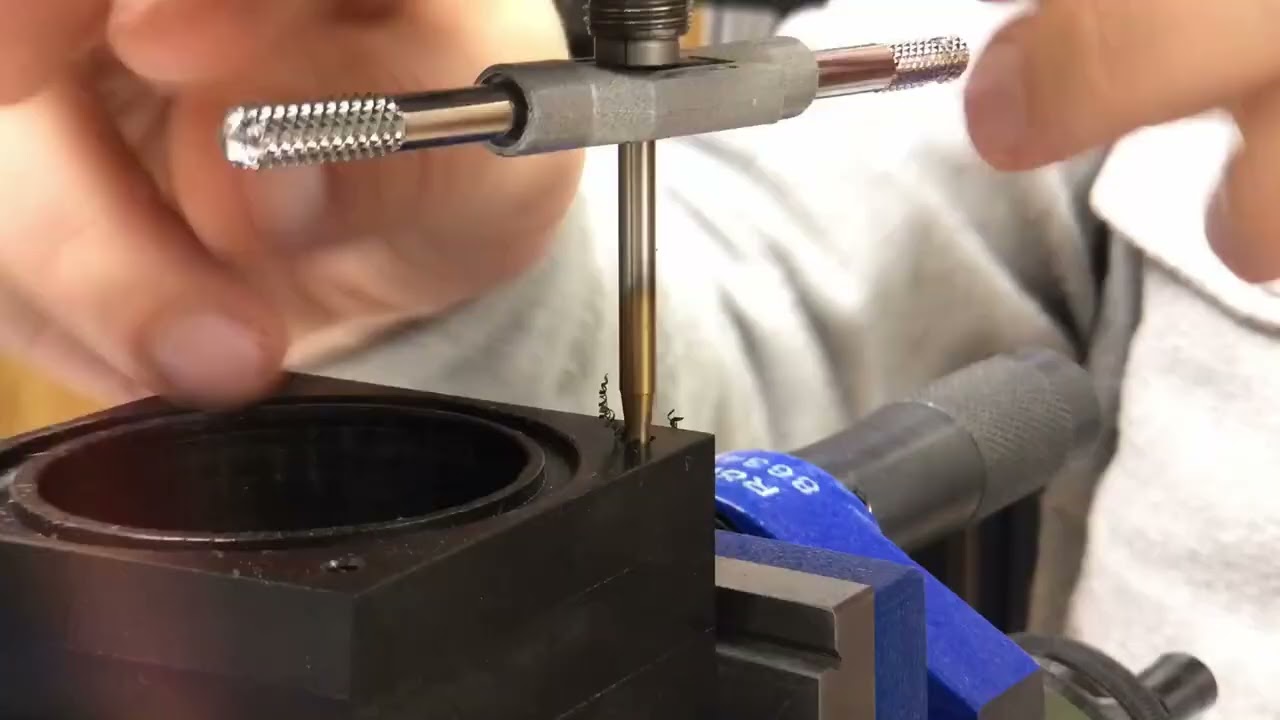

Last week we performed the last round table milling operations on the body (link blow). That leaves us with eight already drilled holes in the body which have to be tapped, and then the body is done.
First we have a look at the drawing to see how deep the threads need to go. Then we tap four M4 threads followed by four M6 threads. Finally we test if the threads are really deep enough for our bolts.
00:00 Intro – just tapping eight threads
00:45 Drawing – recap of all the threads
01:24 Tapping (1) – four M4 threads
04:29 Tapping (2) – four M6 threads
07:17 Results – if the bolts fit I’m happy
08:12 Wrap-up – next will be the shaft, bye
