Drilling three holes in a 120° circular pattern using the round table …
↓↓↓ Complete description, time index and links below ↓↓↓
Last time we made a shaft for centering our workpieces on the round table (link below). So now it’s time to perform some actual operations using the roundtable, first on the wheel hub.

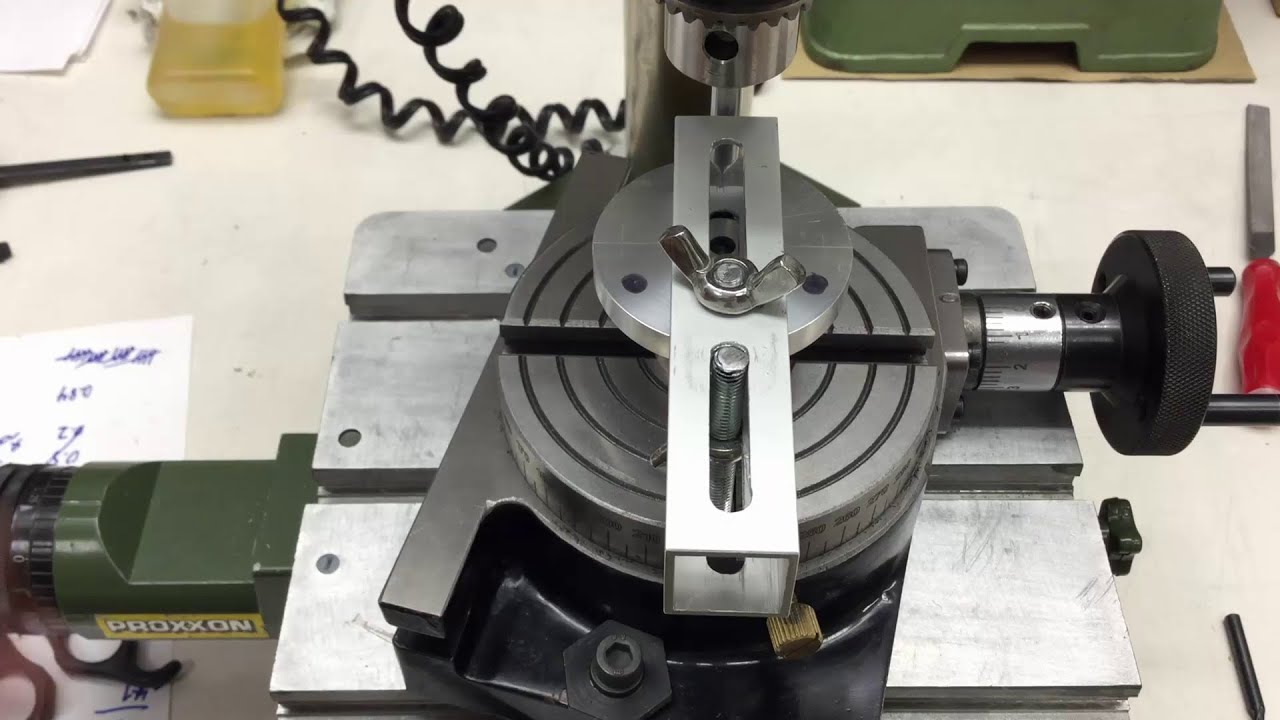

We have a quick squiz on the drawing for the wheel hub before clamping it onto the round table. Then we drill our circular hole pattern, put some chamfers on the holes, and cut some threads into them.
00:00 Intro – continuing work on the wheel hub
00:38 Drawing – three holes in a circle, 120° apart
02:14 Clamping – the wheel hub on the round table
03:18 Drilling – three holes on the round table
07:00 Chamfering – the three holes
08:01 Threading – the three holes
10:55 Attaching – the wheel hub to the wheel
11:07 Wrap-up – next is a hole in the wheel, bye
