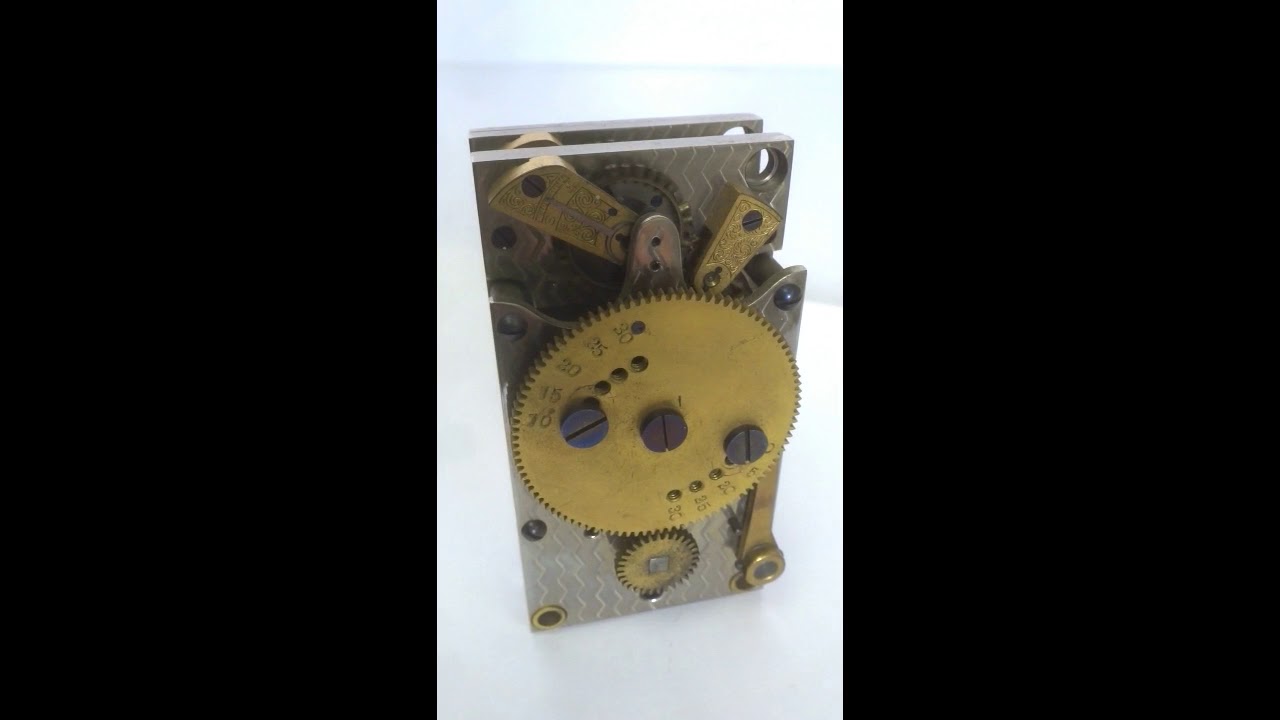

Short-term timer c.1940. Seth Thomas movement. The unusual feature of this movement is the use of two platform escapements within one timer movement resulting in a triple plate design. Note the front main wheel is denoted from 10 to 30 minutes in five-minute increments which is adjustable via two removable screws and the rear main wheel also has the same denoted sequence; but with a permanent pin, in this case at 20 minutes. One main spring drives both escapements, each providing redundancy. This design appears to be an attempt to provide the redundancy of two separate movements, but within the confines of one movement. There is no winding square for a key to directly wind the movement so this must have been provided externally by an additional winding gear probably meshing with the small wheel on the front of the movement.
