This jig is used to drill a hole in a small green workpiece (in the prayer necklace).

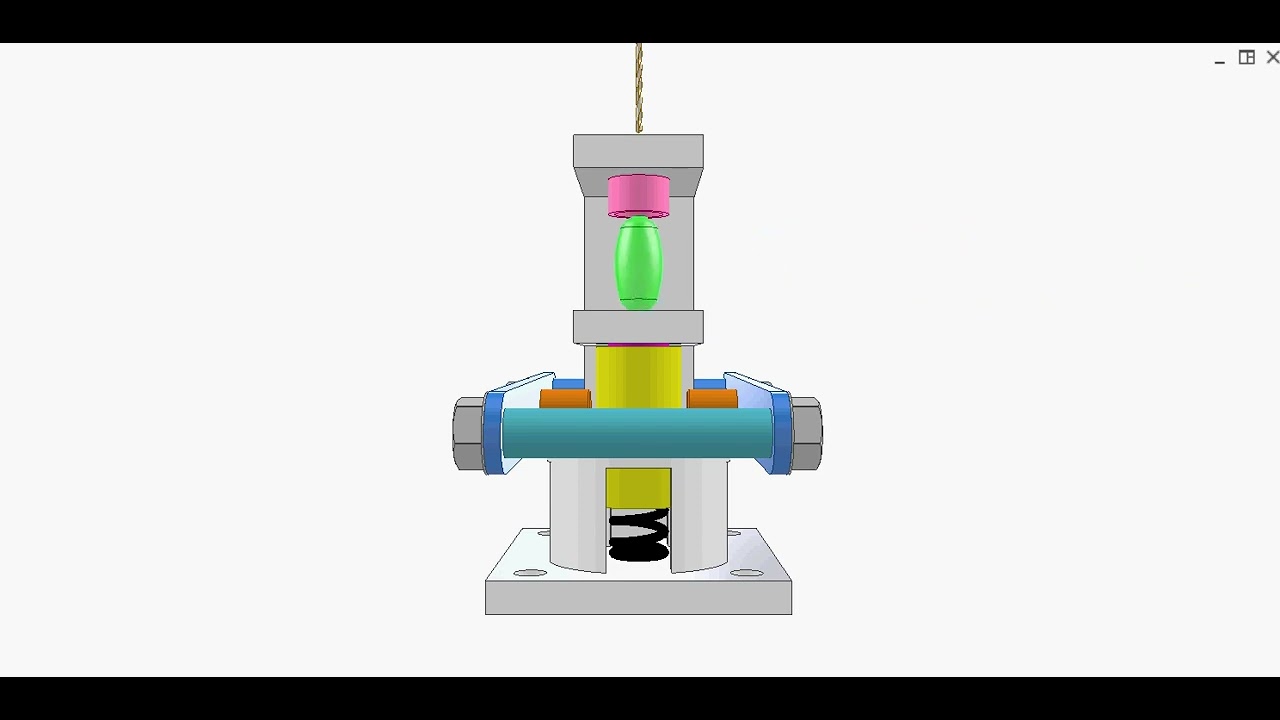

The workpiece is positioned (using tweezers) between two cones (pink and magenta) and clamped with a black spring when the blue levers are released. The spring force must be large enough to withstand the cutting force (torque and axial force) of the drill bit.
Press the blue levers down to remove the workpiece.
This video was made in response to a YouTube viewer's request.
STEP files of this video:
mediafire.com/file/ds6rnkvys9ukvfe/DrillingJig3STEP.zip/file
Inventor files of this video:
mediafire.com/file/44w9njagz14nm1d/DrillingJig3Inv.zip/file
