Uploaded November 2023 | Updated September 2026, 3 weeks ago
Full install video here: youtu.be/pSahyUMZbn4
Parts used linked in the description below!

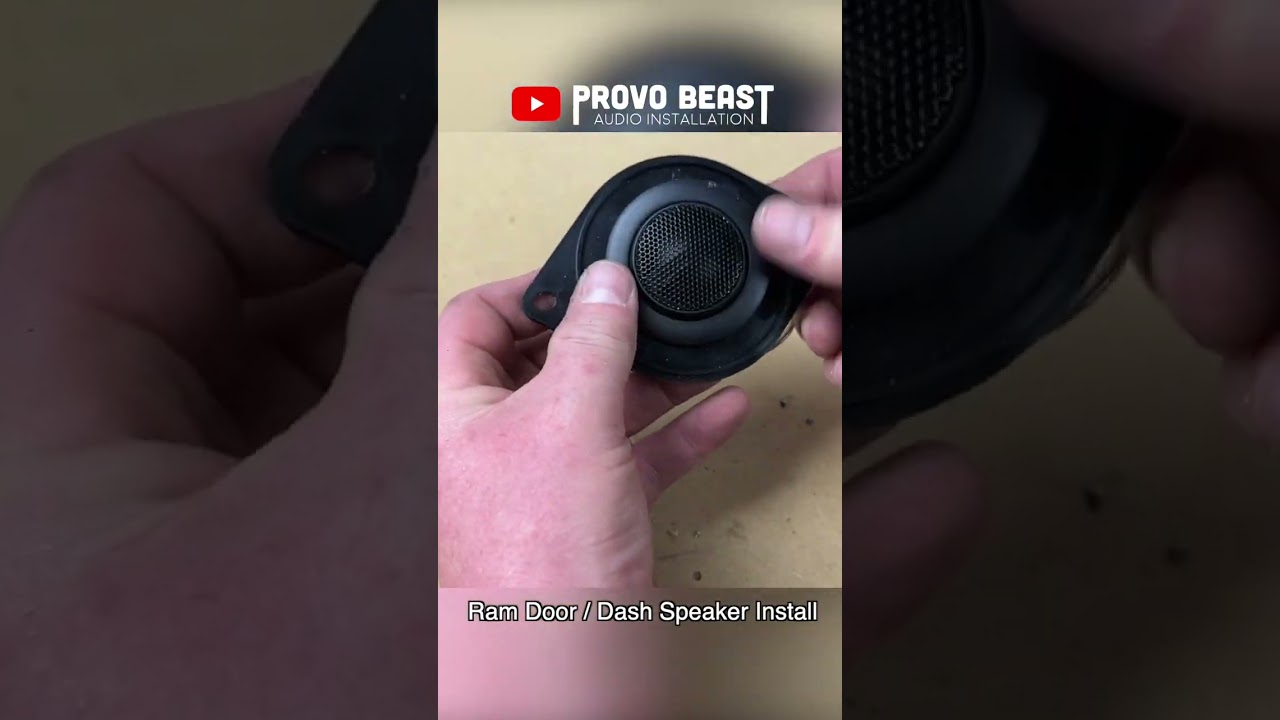

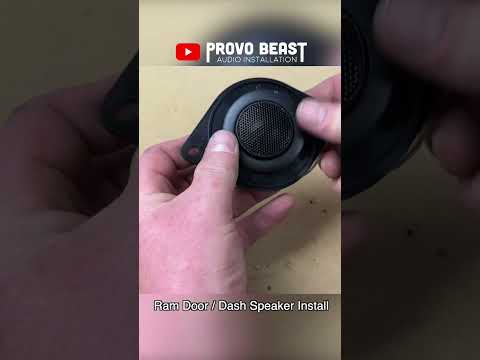

Watch a full tutorial as a 2019 Ram Truck Rebel will have a front door midrange 6x9" speaker and tweeter in the dash location. We will be using the Alpine S-S69C 6x9" component speakers for enhanced audio quality while keeping the factory look. We are retaining the factory radio.
NOTE: Our Ram truck was equipped with ANC (Active Noise Cancellation) which may need to be bypassed if you are getting any feedback in your newly installed door speakers. We can link the bypass in the description which is installed under the driver side front seat if needed.
NOTE: Our ram also wasn't equipped with the Alpine audio sound system. If you have the alpine audio system, you may need a different (lower) impedance speaker to be most compatible with that factory amplifier. We can link those specific speakers below.
This video applies to Ram Trucks / Rebel models for years 2019, 2020, 2021, 2022, and 2023+. This video also includes door trim removal, complete speaker wiring instructions, installation, and testing.
Factory Wiring Colors (Base audio system):
Front Left (+): Gray / Violet
Front Left (-): Gray / Yellow
Front Right (+): Dark Green / Violet
Front Right (-): Dark Green / Yellow
Rear Left (+): Gray / Dark Green
Rear Left (-): Gray / Light Green
Rear Right (+): Dark Green / Light Green
Rear Right (-): Dark Green / Gray
Click here to see the rear door speaker install video:
youtu.be/K_JFElB_ARY
Click here to see the amp and sub install video:
youtu.be/kv1mj75rVuE
If you have any questions, leave a comment below! Be sure to like and subscribe!
Parts used in this install (Amazon Associate Paid Links):
*Alpine S-S69C 6x9" Component Speakers: amzn.to/3kPlosO
--If you wish to do a simple coaxial, here are those versions: amzn.to/3mMNsyd
*Metra 72-6514 door speaker wiring harness adapters: amzn.to/35WNKIY
*Metra 72-7902 tweeter harness adapters: amzn.to/46bhheM
*Metra 82-3016 dash tweeter bracket adapters: amzn.to/3jpy6xX
*Disclosure: As an Amazon Associate I earn from qualifying purchases*
