Uploaded March 2025 | Updated September 2026, 2 weeks ago

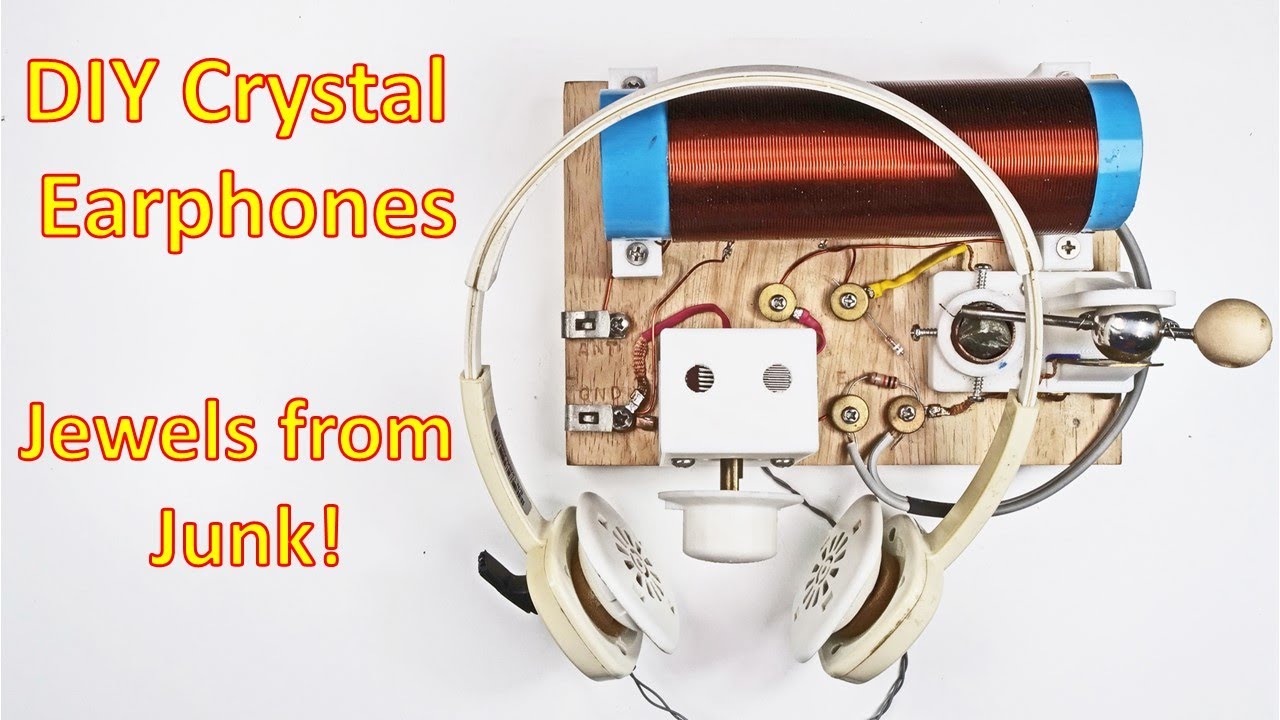

Here is a crystal radio earphone replacement that does not require a 3D printer. It's a converted old headset with a piezoelectric element that can be driven by a crystal radio.
In this first part we tackle the challenge of converting a set of broken or unused headphones into crystal earphones using simple tools. With a piezoelectric element, some clever mounting solutions (from PVC rings to caulking nozzles), and a bit of soldering, we walk step-by-step through how to repurpose everyday materials into a comfortable, long-wear headset for crystal radios. Along the way, we troubleshoot volume issues, experiment with sound focusing, and explore the benefits of larger vs. smaller piezo elements (27mm vs. 20mm). Whether you’re into DIY electronics, vintage radio restoration, or creative tech hacks, this build will help you craft a lightweight, durable, and ear-friendly headset perfect for long crystal radio listening sessions—no fancy tools required.
#CrystalRadio #DIYHeadphones #ElectronicsDIY #Piezoelectric
MATERIALS
- Old headphones
- Piezoelectric element / sounder
- Plastic pipe
- Glue (I used both epoxy and superglue)
RELATED VIDEOS (including this one):
Crystal Radio Headphone Mod--DIY Part 1/2
youtu.be/oG5cDi9Va_Q
Crystal Radio Headphone Mod--DIY Part 2/2
youtu.be/v_9InMj-eL8
Problems with piezos video here: youtu.be/Ol4vRyaK9E0
Crystal Radio Earphone From Common / Cheap Stuff youtu.be/dWkKFD_yZs8
Crystal Radio--DIY Crystal Earphone youtu.be/ARtfLB0nQ5k
Crystal Radio--Bad Earphone Diagnosis & Fix (Remix Pts 1-3) youtu.be/D9HVJ5GOaEE
Crystal Radio Headphone--DIY Part 1/2 youtu.be/oG5cDi9Va_Q
Crystal Radio Headphone Mod--DIY Part 2/2 youtu.be/v_9InMj-eL8
WARNING: This project uses soldering. Soldering uses lead solder which is known to be toxic. It also involves high temperatures which can cause burns and start fires. If you don't know how to safely solder, learn first or don't do it.
Disclaimer: This information is presented as entertainment only on an "as is" basis and any use the viewer makes of it is solely up to them, and it is their responsibility to determine if the information remains current and if it is applicable to their situation. The viewer is responsible for any and all safety involving this. Viewing this video is the viewer's agreement to these terms and conditions. If you do not agree, stop now.
