Learn how to set up the HolidayCoro Long Range 16 Smart Receiver Version 1 (#951-77) in xLights with a HinksPix Pro controller.

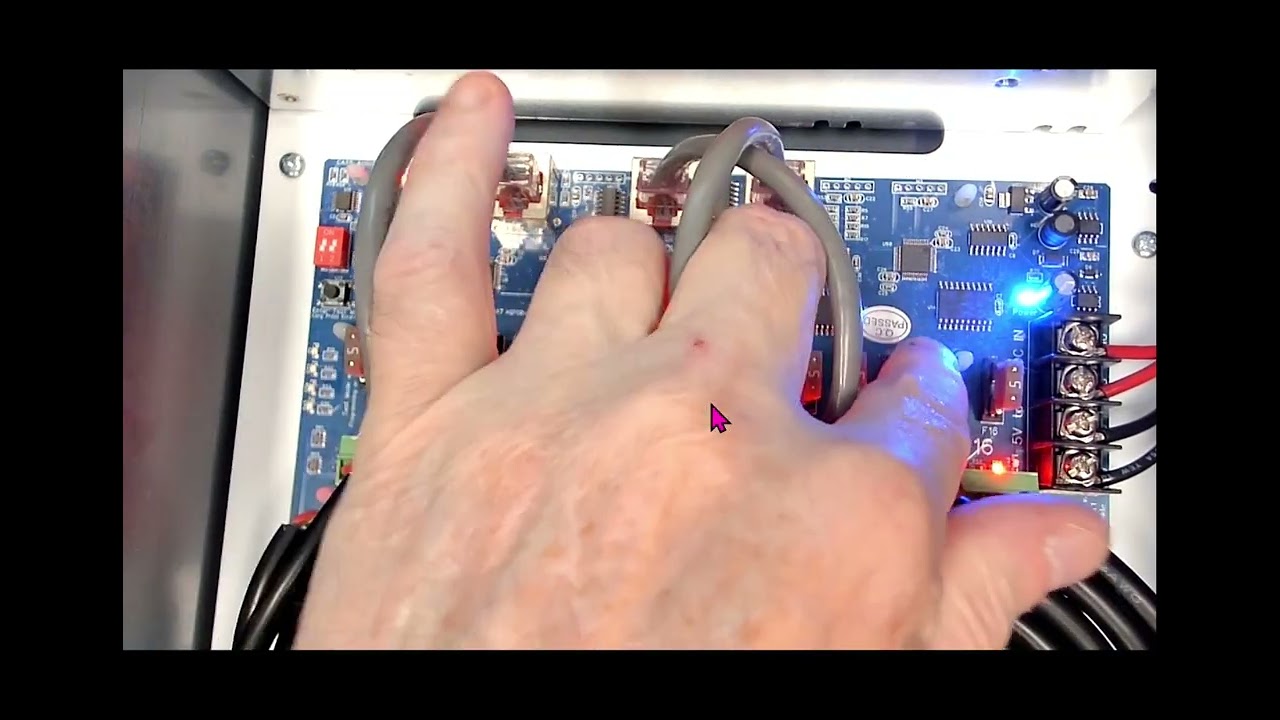

This video shows how to configure the Long Range 16 Smart Receiver in the xLights Visualizer, assign it as a Smart Remote, select Smart Remote Type 16, set cascaded remotes, upload the configuration to the controller, and verify that the receiver is programmed correctly. It also explains how the long range expansion board maps ports 1 through 16, how receiver addressing works, and how onboard green and red LEDs help confirm programmed outputs, fuse status, and data activity.
This tutorial is helpful for HolidayCoro customers using Long Range Smart receivers for matrix props, seed pixels, and node strings in distributed displays. The video also demonstrates how to test outputs from the controller interface and inside xLights, how to confirm that data is reaching the receiver, and how to match physical outputs to the correct smart remote ports for setup and troubleshooting.
See: holidaycoro.com/Ready2Run-16-SPI-Long-Range-SMART-Receiver-700w-p/938.htm
holidaycoro.com/Flex-Long-Range-Differential-Receiver-16-SPI-SMART-p/951-72.htm
