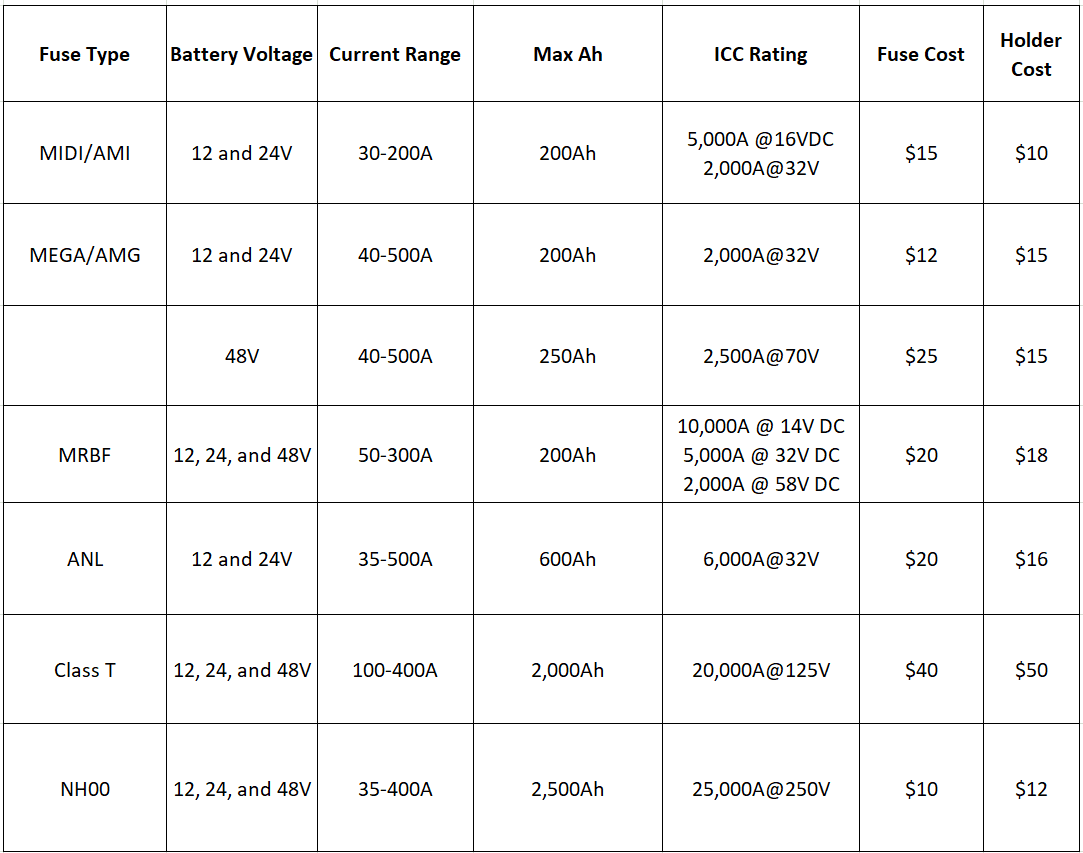

UPDATE: 3:50 the Icc at specific voltage is the max voltage the fuse can handle. The updated (more complete) table can be found here: cleversolarpower.com/icc
đ Free Diagrams: cleversolarpower.com
đ My book on Amazon: cleversolarpower.com/off-grid-solar-power-simplified
MIDI: amzn.to/3V0XU5t
MEGA: amzn.to/4hWSIJE
MEGA 70V: cleversolarpower.com/go/70VMEGA
ANL: amzn.to/4hYo6Y8
MRBF: amzn.to/4hZOL6T + amzn.to/4hYo96g
Class-T: amzn.to/3CGkRV9
NH00: Siemens, Bussmann, or Eaton
Imagine this: a short circuit happens, and your battery releases 4,000A of current. If your fuse isnât up to the task, it wonât stop the flowâpotentially leading to catastrophic damage or even a fire. Many people donât realize their fuses arenât properly rated until itâs too late.
Why Most Fuses Fail
A fuse isnât just about matching the current rating to your systemâit needs to handle worst-case scenarios like short circuits. Thatâs where two key specs come into play:
1ď¸. Interrupt Current Capacity (ICC): The maximum short-circuit current the fuse can safely interrupt.
2. Voltage Rating: The system voltage the fuse is designed for.
Lithium batteries, with their low internal resistance, can deliver currents up to 10 times their capacity during a short circuit. For example, a 12V 300Ah lithium battery can produce up to 3,000A in a shortâfar beyond what many fuses can handle. If the fuseâs ICC is too low, it may fail, causing dangerous arcing or melted components instead of breaking the circuit.
Link to the study mentioned in the video:
researchgate.net/publication/316171277_Temperature_Overcharge_and_Short-Circuit_Studies_of_Batteries_used_in_Electric_Vehicles
Voltage rating matters too. A 32V-rated fuse wonât safely protect a 48V system and could fail dangerously. For 48V setups, always use fuses rated at 70V or higher.
Fuse Recommendations for Different Systems
Hereâs how to choose the right fuse for your setup:
MIDI/AMI Fuses: Best for 12V and 24V systems up to 200Ah. These are compact and ideal for smaller systems.
MEGA/AMG Fuses: Suitable for 12V and 24V systems up to 250Ah. MEGA fuses also come in 70V versions, making them usable in 48V systems with up to 250Ah capacity.
MRBF Fuses: These mount directly to your battery terminals, reducing cable crimps. Perfect for 12V, 24V, and 48V systems up to 200Ah.
ANL Fuses: These larger fuses are suitable for 12V and 24V systems with capacities up to 600Ah. However, theyâre not recommended for 48V systems due to their lower voltage ratings.
Class-T Fuses: Ideal for larger 48V systems. With ICC ratings of 20,000A and voltage ratings up to 125V, they work for batteries up to 2,000Ah.
NH00 Fuses: Commonly used in Europe, these can handle ICCs of 25,000A and are suitable for 48V batteries up to 2,500Ah.
Parallel Battery Systems
If you have parallel batteries, fuse each battery individually and add a main fuse to handle the combined short-circuit current. For example, with two 12V 200Ah batteries in parallel (producing 4,000A during a short), use MEGA fuses for each battery and a Class-T fuse for the main line.
Donât Rely on Your BMS
Your Battery Management System (BMS) is designed for normal operation, not short-circuit protection. It canât handle the massive currents produced in a fault. Thatâs why correctly sizing your fuses is critical for safety.
