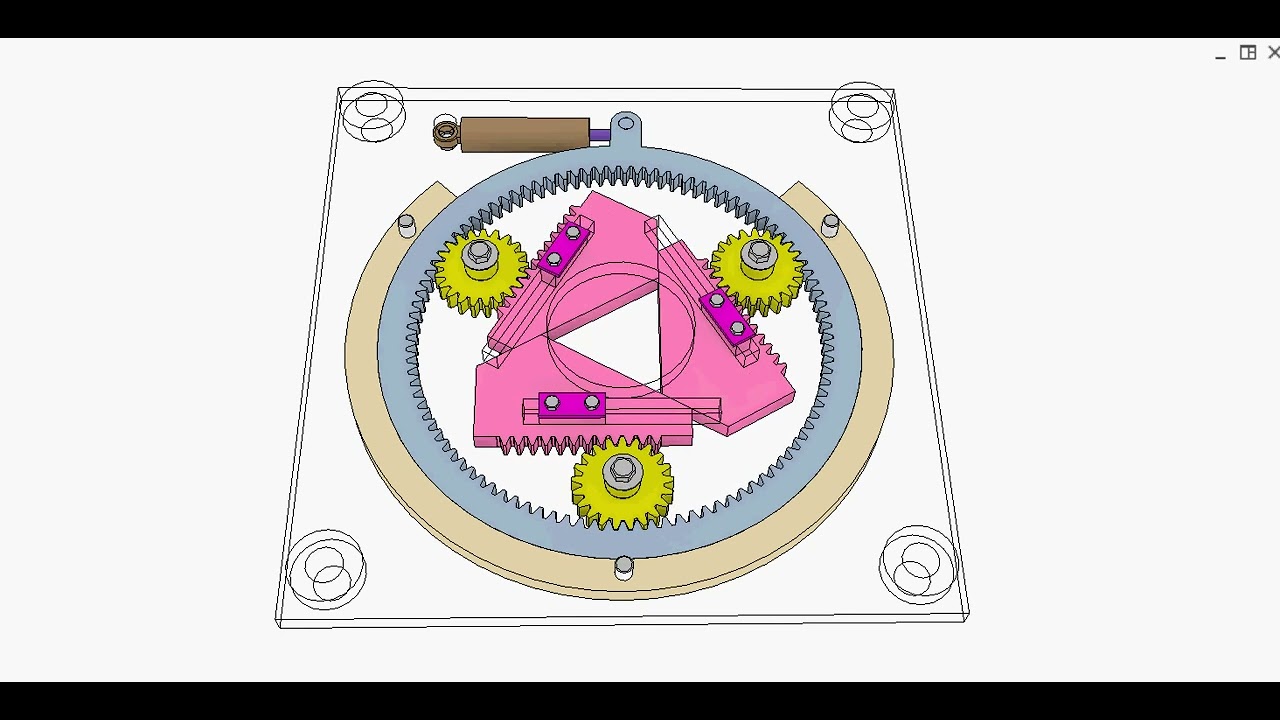

Input: blue internal gear driven by violet piston of brown cylinder.
Output: three pink jaws.
The jaw has teeth that mesh with the yellow gear. This gear meshes with the internal gear. The jaw also has a key that slides along the slot in the base.
The video shows how to clamp triangular and hexagonal tube.

STEP files of this video:
mediafire.com/file/a93v2784kq4o1ar/ClampTriangularObject1STEP.zip/file
Inventor files of this video:
mediafire.com/file/u114v1b6v3f28ey/ClampTriangularObject1Inv.zip/file
