Chain reversing box @thang010146
Chain reversing box  @thang010146
Uploaded April 2025 | Updated November 2026, 14 hours ago

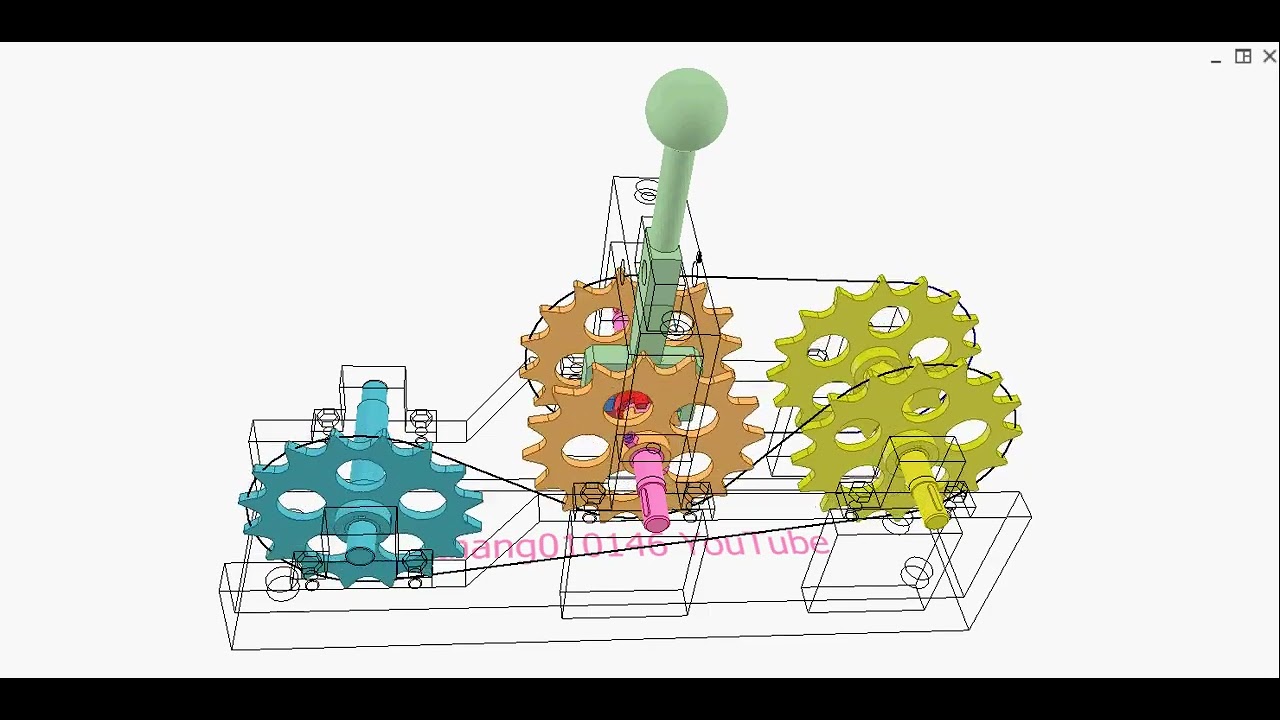

Input: yellow shaft rotates in one direction.
Output: pink shaft.
Use the green lever to control the output movement: stop, clockwise rotation and counterclockwise rotation.
The black loops represent two chains.
The two orange sprockets rotate idle on the pink shaft.
The red jaw clutch has a prismatic joint with the pink shaft.
The blue sprocket helps reverse the rotation.
See the prototype of this mechanism:
youtube.com/shorts/jBJMxDF9U78?feature=share
