A crystal is made up of lots and lots and lots of copies of the molecule(s) you’re trying to look at arranged in a repeating 3D pattern. Each copy is too tiny to see by itself, but if you put a ton of them together, their signals can contribute to each other such that you get a strong enough spots on the diffraction pattern to work back from.

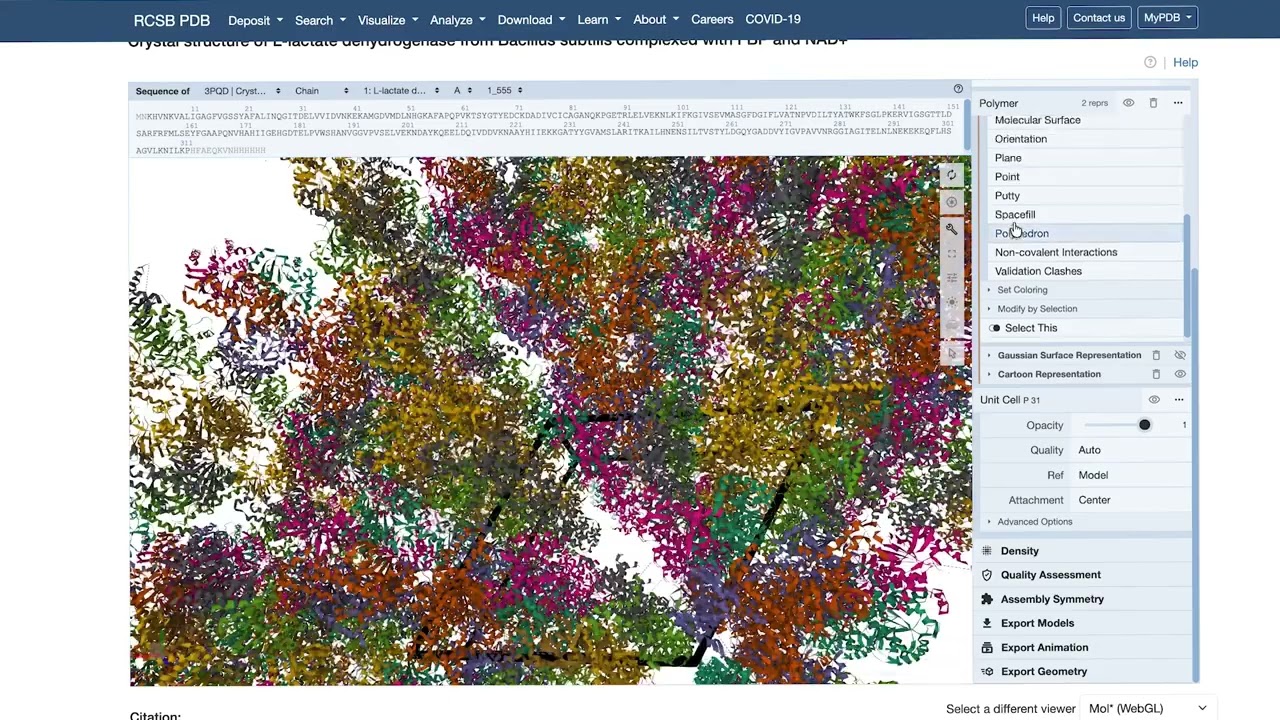

That protein or complex you’re interested is looking at is usually the “biological assembly” which is the form of the molecule that is thought to be the active form. But, if you look at the “Model” in the 3D viewer, you might see something different. This is because it’s showing you the “asymmetric unit” which is the smallest repeating part of the crystal. If you know the structure of the asymmetric unit and the dimensions of something called the unit cell, you can recreate the whole crystal just using symmetry operations (rotate, move left, move up, etc.). Confusingly, that asymmetric unit might itself contain more than one copy of the biological assembly.
The copies of the biological assembly within the asymmetric unit are identical in their sequence but they might be slightly different in their shape, and during the structure-solving they are therefore treated separately. In the PDB, these “different copies” within the asymmetric unit are called “instances” so if you’re confused by that, that’s what it refers to and you can choose which one you want to look at.
In sum:
* Crystal lattice: the “whole” crystal - it contains lots and lots (billions typically!) of copies of the thing you care about
* Unit cell: the basic repeating unit of a crystal, like the bricks in a brick wall
* Asymmetric unit: The smallest “unique” part of the crystal
* Biological assembly: The biologically relevant form - might be different than the asymmetric unit.
Each unit cell has one or more full or partial copies of the asymmetric unit
Copies of the asymmetric unit are related to one another symmetrically through space group transformations to build up the unit cell. Unit cells are positionally related through lattice transformations to build the entire crystal.
much more here: pdb101.rcsb.org/learn/guide-to-understanding-pdb-data/biological-assemblies
more on PDB entries: bit.ly/pdbstructures
Structural biology resources guide: bit.ly/structural_biology
My structural biology YouTube playlist: youtube.com/playlist?list=PLUWsCDtjESrGhwVxsRbTJdL-BEsN60RCs
My x-ray crystallography YouTube playlist: youtube.com/playlist?list=PLUWsCDtjESrHIGzgUctYRWSWm-lw9_VhX
more on crystallography here: bit.ly/xraycrystallography2
more about all sorts of things: #365DaysOfScience All (with topics listed) 👉 bit.ly/2OllAB0 or search blog: thebumblingbiochemist.com
⠀
#scicomm #biochemistry #molecularbiology #biology #sciencelife #science #realtimechem
