Uploaded June 2022 | Updated November 2026, 3 hours ago
A pretty detailed video log of an Acorn A3000 repair. The machine was purchased from Ebay and was apparently recovered from a skip years previously. It was in very good cosmetic condition but had several faults and would not even POST or boot initally.
The video covers the fault finding process, using the the service manual, schematics and an oscilloscope to get the machine to boot.
After that, the floppy drive, power supply, keyboard and mouse controls are serviced and/or repaired.
Key points:
Intro:
Initial cleanup and board repairs: 02:33
Fault finding steps per the Service Manual: 06:10
Floppy drive: 18:51
Keyboard: 20:53

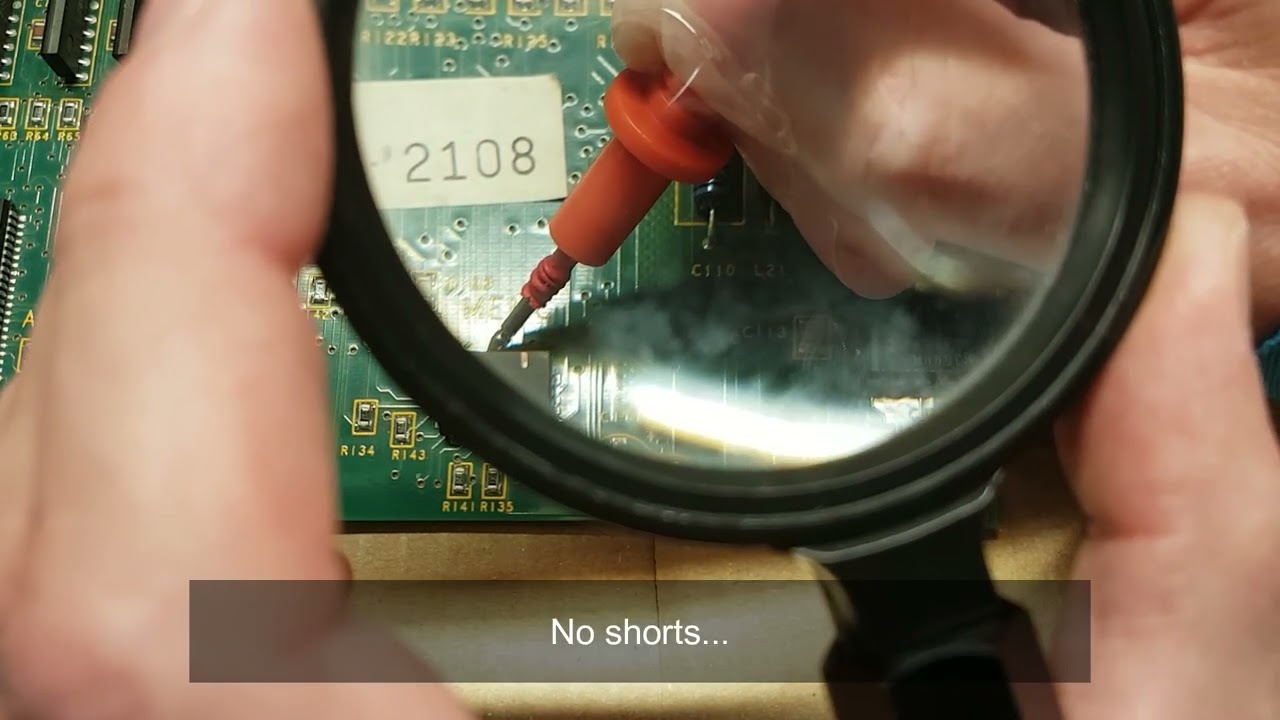

PCB trace repairs: 25:24
Power supply tests: 27:44
Mouse trace repairs: 31:07
Keyboard ribbon repairs: 32:02
To do: 33:51
Service Manual:
chrisacorns.computinghistory.org.uk/docs/Acorn/Manuals/Acorn_A3000SM.pdf
Bwack Saver:
github.com/bwack/C64-Saver-bwack
Good Luck All
