Altair Hyperworks #short - How Tetra growth parameter negatively impacts Topology Optimization @ManuelRamsaier

Uploaded July 2023 | Updated September 2026, 2 weeks ago

Hi guys,

please don't forget to turn off tet growth when doing topology optimization. It hinders you to create thinner structures well inside the design space (exectly where you would want to be able to do so).

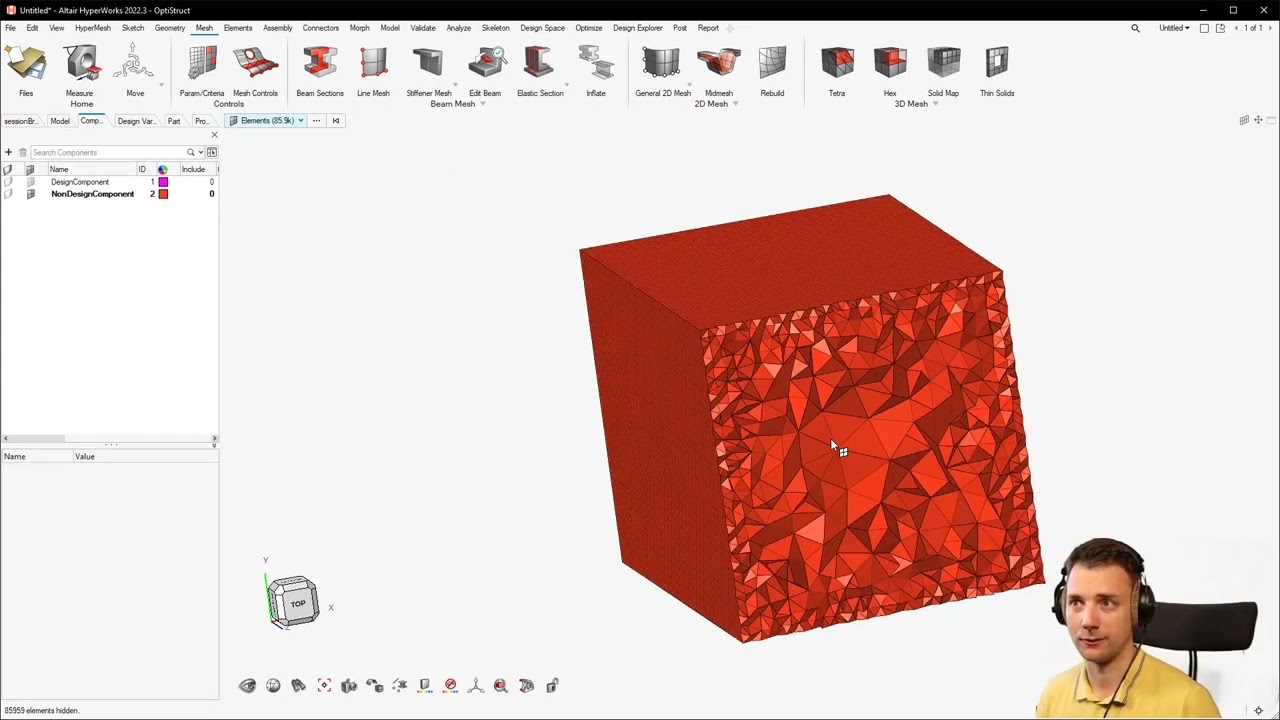

This video shows you the impact and how to set tet growth parameter for topology optimization.
