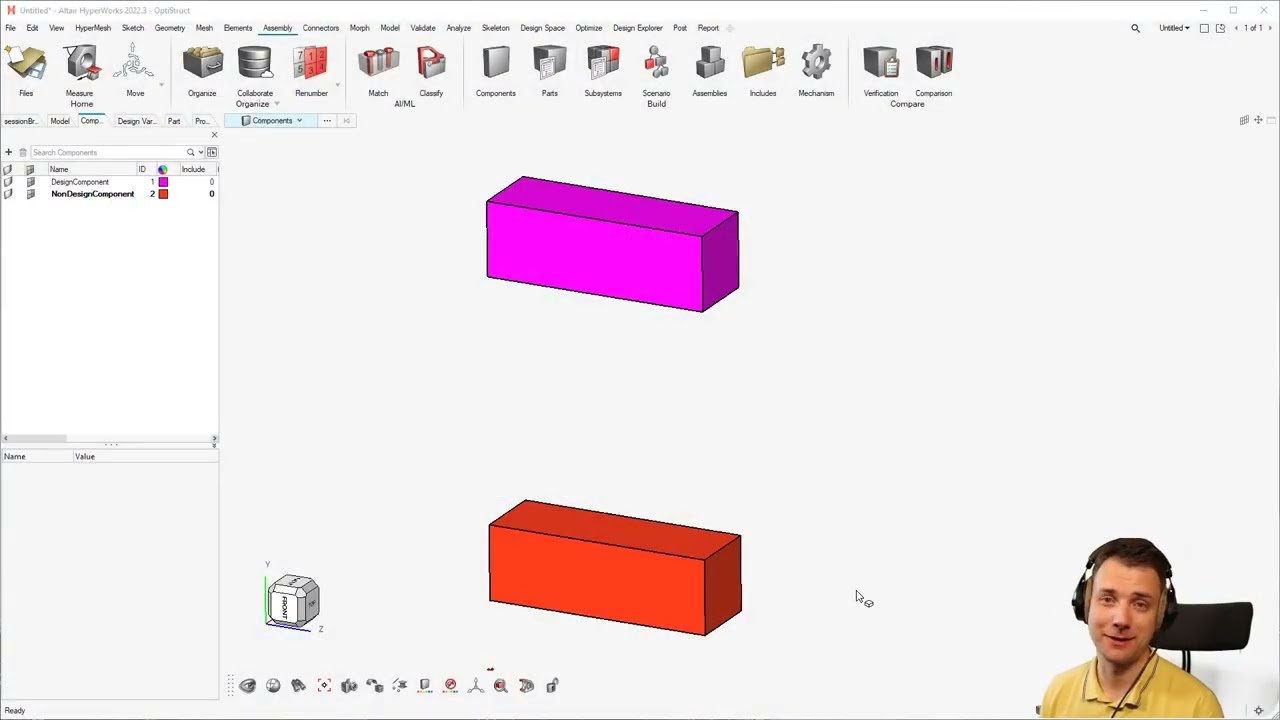

Altair Hyperworks #short - How you mesh into the current or the geometry component @ManuelRamsaier

Uploaded July 2023 | Updated September 2026, 2 weeks ago

If not careful all your elements will land in the current component and that is maybe not what you want - its a simple but often overlooked setting when performing your mesh operation
