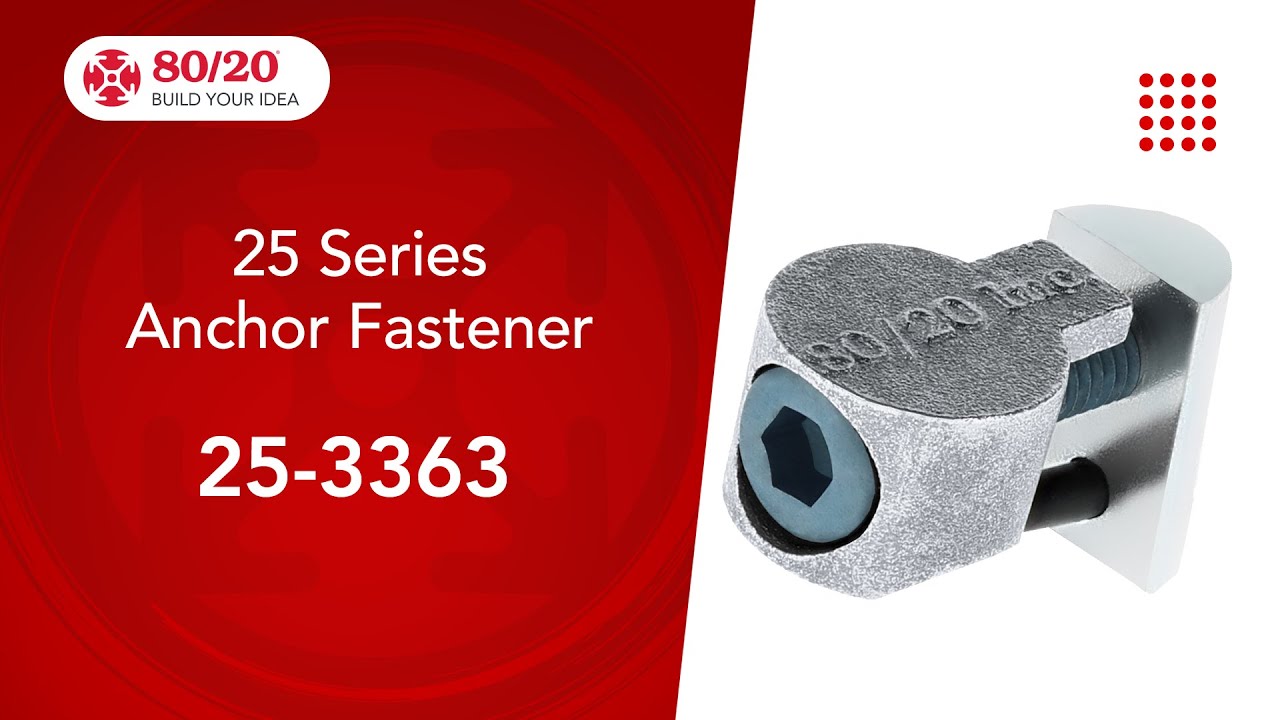

80/20: 25 Series Anchor Fastener (25-3363) @8020llc

Uploaded November 2023 | Updated September 2026, 1 week ago

To Purchase: bit.ly/3CAuvoN
Find in Catalog: bit.ly/428g7iZ
80/20 Website: bit.ly/3peM7n3

The standard anchor fastener assembly is comprised of a socket head cap screw, cam, and T-nut. It is one of the strongest internal fastening methods, offering a long-lasting connection. The anchor fastener provides infinite positioning along the mating profile’s T-slot, allowing a large degree of adjustability. The anchor fastener provides 90 degree, flush, vibration resistant connections, especially convenient where space restrictions apply. This connection method requires a counterbore machining service on the mounting profile. Additional Information: Cams are available separately (without the socket head cap screw and T-nut) for instances where you want to create your own custom assembly.
