RC FPV Gel Blaster Mod Test Magneticitist 2024-12-31 | Since it looks like air FPV might be taking a dump real soon maybe gel blaster FPV is what people need to get on haha. Using Walksnail Avatar on this 1/16 Hypergo rig that finally has a purpose. It's small, not really intimidating, and clearly shows it's feeding gel balls to shoot through what otherwise looks like a projectile firing barrel of some kind. That's the other problem though, a more purpose built rig should probably not make it so obvious that it's able to shoot something if you're riding it around all over the place. The barrel needs to be adjustable within a certain range on the pitch and yaw but it also needs to be inconspicuous so people don't freak out unnecessarily. The best way I can describe the gel balls and the FPS they are traveling from this thing is it's not something that's actually going to cause any physical harm unless it's being shot directly at someones face at close range. For that reason it doesn't need to be any more powerful. I plan on some shenanigans with this test rig for a little while to feel it out but I need to come up with good targets.
Typhon 3s FPV HEQ Gimbal Cruising (DJI O3) Magneticitist 2024-12-25 | Goggles V2 footage of what I see when driving. This is the 2nd HEQ Gimbal I'm testing out after deciding I want the butter smooth view on my Typhon. This one had all the same initial problems I was expecting so I went ahead and added the 3 penny counterweight to the back and upped the torque settings. This time I think I'm going 15000 pitch, 15000 roll, and 25000 yaw and I'm able to leave the FPV mode locked instead of just temporarily triggering it on with a momentary function. When the one on the Big Rock is left in FPV mode HIGH then it vibrates. By just temp triggering it there is no vibration and the yaw stays locked until next power down but the movement speed does not increase to what it's supposed to be in FPV mode. This one doesn't have that problem. These rigs also have a lot going on in terms of wiring so I was noticing a lot of noise jitter in the gimbal on the first test before I cleaned up the signal paths some. I think a clean rig with good settings will work almost perfectly. I'm totally fine with how this is working on the Typhon though and it's definitely much easier to drive fast with clear visibility on almost any surface. The C20-T gimbal looks like a promising alternative but to me it appears similar to the Caddx GM3 (for Walksnail). The GM3 offers out of the box usability without any settings or upgrades or extra control channels but you'll be dealing with a 3 axis follow that has a little bit of stabilizing (all 3 axes will be loosely locked from factory). If you add 2 extra control channels to switch modes and change the sensitivity I can see it working pretty good. You would need a controller with enough knobs and toggles though.

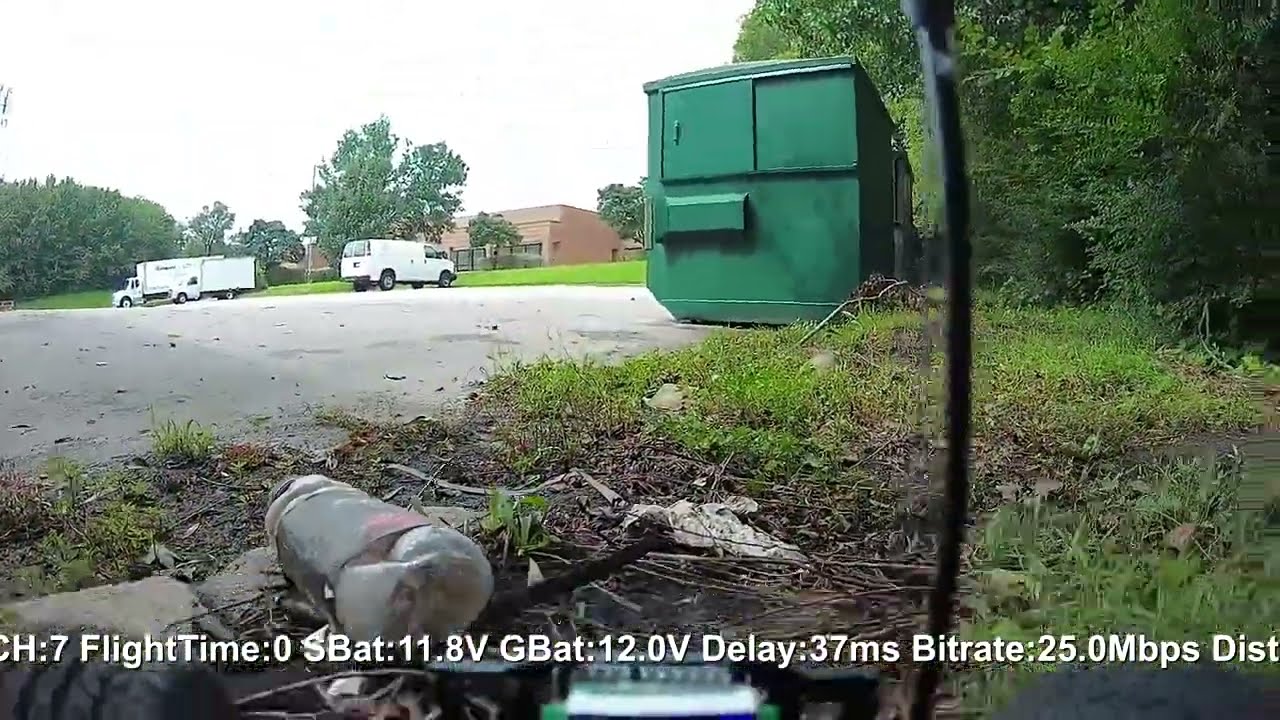

RC FPV HEQ Gimbal Run (DJI O3) Magneticitist 2024-11-30 | Goggles V2 footage of the Big Rock 3s rig doing a loop through roots galore park. Still using the HEQ G-Port gimbal with the 3 pennies stacked on the back as a counterweight (plus torque setting increase on the yaw) and it still works pretty good. First half I forgot to lock the yaw so steering is funky. Getting that time of year again where I have to knock the dust off some FPV stuff.
Another 60V 700W HFSSTC Magneticitist 2024-11-24 | UJ4C0750334KS7.5kV 100pF doorknob resonant capPrimary 6 turns 10AWG 95cm wide 85cm tall Secondary 43 turns 24AWG 3.5cm wide 70cm tall19nF Cgs100pF Cds9.4ohm gate resistance

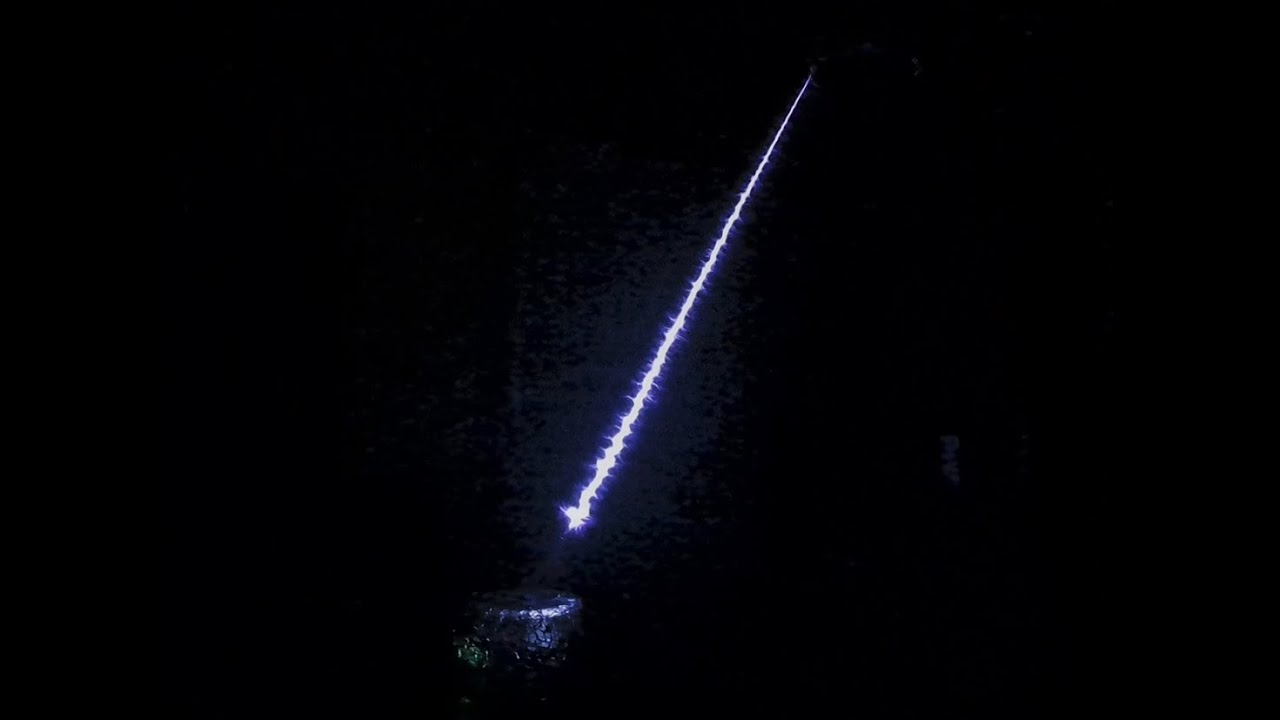

HFSSTC 11.5Mhz 60VDC 600-700W Magneticitist 2024-11-20 | Finalized tuning on one of the circuits I made based around Steve Ward's designs. This one easily wants to pull over 12A at only 30V or less with a certain coupling and gate bias so I back that down to about 3.5V using the pot. With a tiny drop of glass on the breakout point the arc can easily hit about 7-8 inches at 60V/600W. That's actually about all I really want from one of these but since it only had about 300V on the drain I could probably push this one to ~100VDC no problem. Without the glass, the soldering iron tip electrode is no longer viable beyond about 500W. UJ4C075033K4S SiC fet100pF 7.5kV RF ceramic doorknob + primary 6 turns (10AWG 7.5cm wide x 8.5cm tall)16AWG secondary (3cm wide x 3.5cm tall)100pF Cds12nF Cgs4.7ohms gate resistance (2S2P 1W 4.7ohm metal film resistors)
Half Bridge Flyback/TC Driver 20-200khz Magneticitist 2024-11-18 | This is basically just a screw-around bridge that just has a driver I can jumper between schmitt trigger feedback and variable frequency drive. An old single phase 120VAC VFD is a good foundation for the power section. -1400V 150A IGBT Brick-100A 3p full wave rectifier module -2x 200V 3000uF caps for doubler-2x UCC2732_ gate drivers and GDT (I like to use T37 cores like B64290L0647X037)-TL494 set for 50% duty and 22khz-200khz operation.I believe the TL494 frequency range was easy to trim by placing a particular value resistor across the frequency potentiometer to limit the max resistance it could reach. To go well below 20khz you first need to make sure your GDT can pass that low of a frequency properly, and your actual flyback core won't saturate at the voltages you're driving the primary. I found staying above 20khz to be pretty reasonable. I should also be able to drive a Tesla Coil with this so long as the secondary is under 200khz or so. Got too many random bricks I need to do something with so I figured I'd try a half bridge and eventually wind a high voltage transformer I can drive with this. Was also curious if the UCC's would struggle with just the one brick up to around 200khz. Seems like they can do it. This test transformer only had maybe 100 turns on the secondary but it was hissing pretty bad at only about 150V pk to pk on the primary. It could probably draw some pretty good arcs before crapping out if it was in oil. Ideally I would have about double the primary turns and run it at about 250-300V pk to pk.

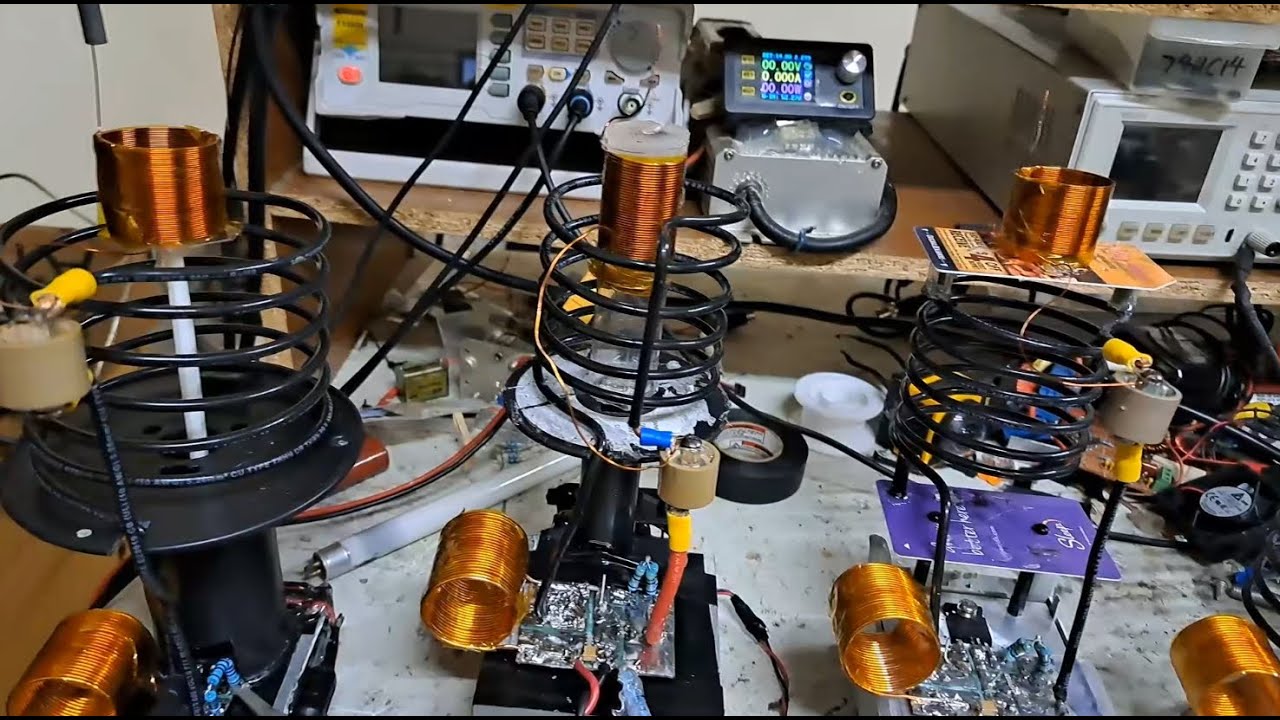

More Steve Ward HFSSTC Testing Magneticitist 2024-11-16 | 4 iterations of Steve's circuits I've shown now where they are all basically going off the general values of the coils and using the recommended SMD capacitors (Wardpowerelectronics.com). This is pretty handy because I'm pretty familiar with those dimensions from previous circuits. I had several 75-100pF small doorknob caps so I basically have a bunch of these plasma flame builds now. I can say that if you stick to these general values then you shouldn't have too much trouble getting one of these to work at several hundred watts or more. Now over time I'll be messing with each of these to see if I can tune them better etc.I'm not 100% sure what was going on when using the MLCC's as the resonant caps but it's either the general design of how I soldered them, or they are just too badass and the circuit couldn't handle the initial oscillation current. That immediate failure was twice on the same circuit and one more time on a different circuit. The other problem could have been using a double sided copper clad board and having the caps sitting right next to the coil. I found that just building it so that the coupling of the secondary could be easily adjusted, it helps allow for wider voltage ranges without losing the switching too much. Maybe that is a lazy solution for wanting to run it at 50V or less relative to 100V or above, and still being able to maintain switching that will avoid a lot of mosfet heating at the time.

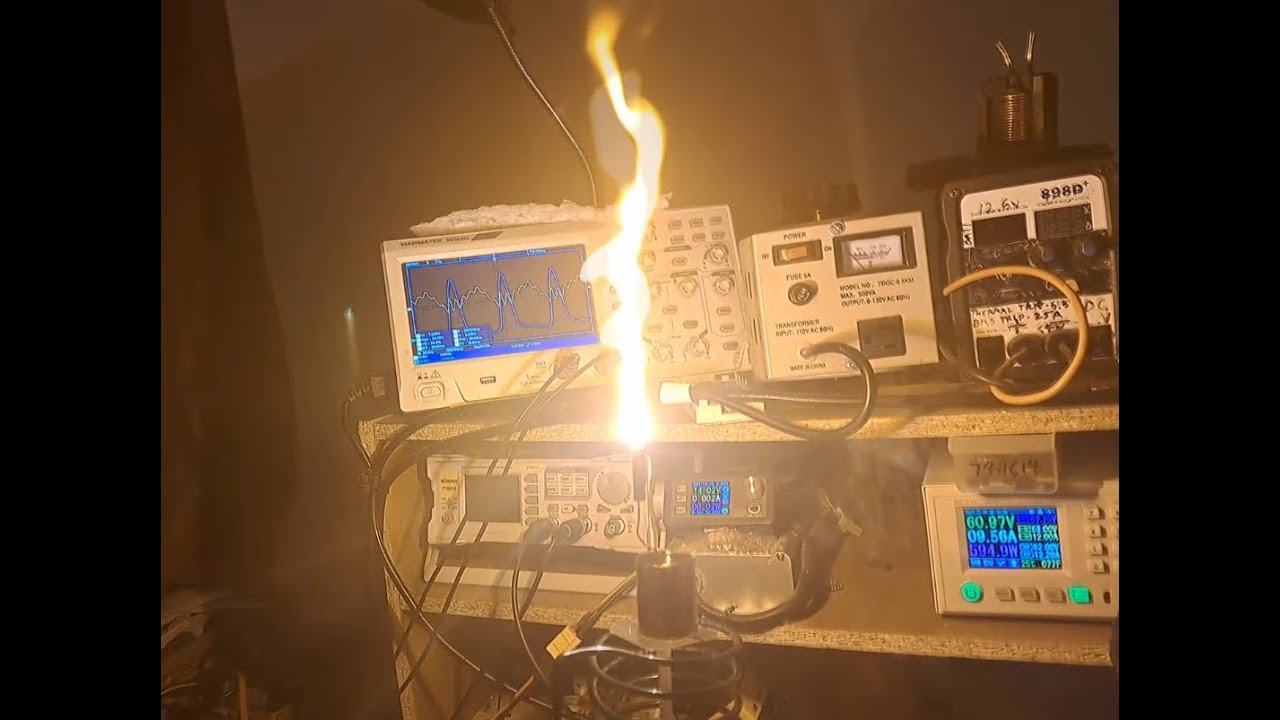

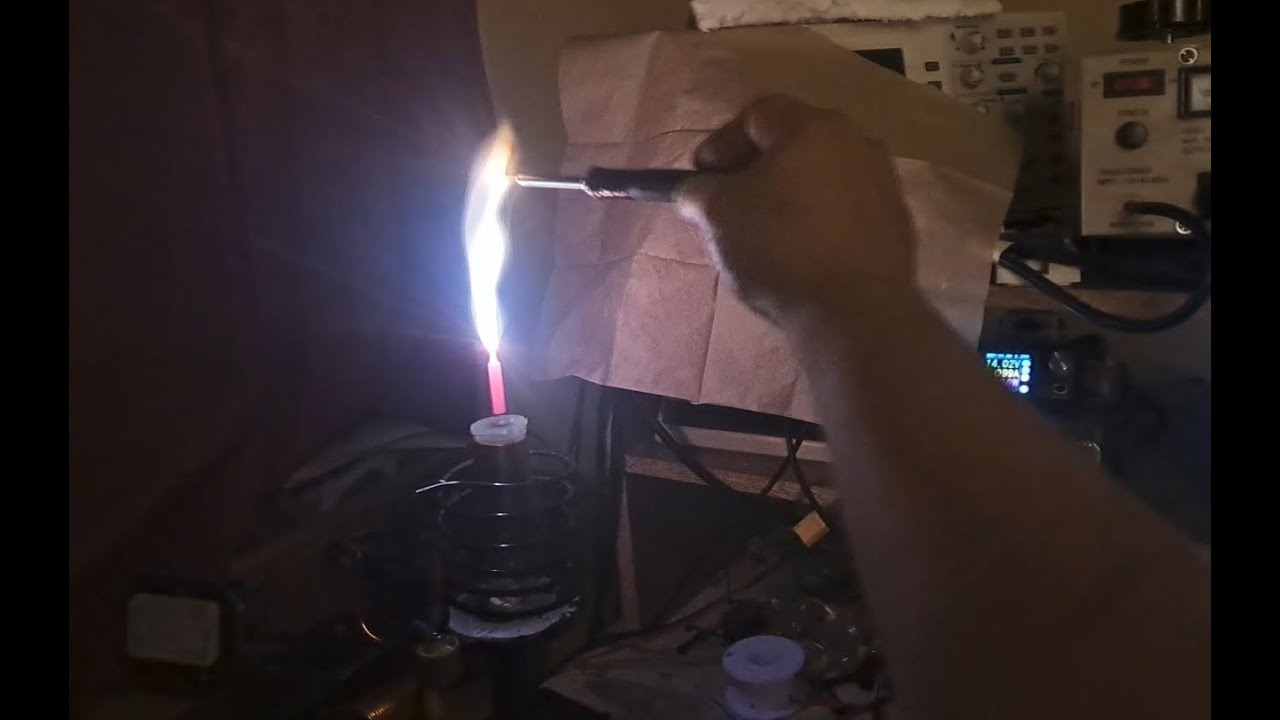

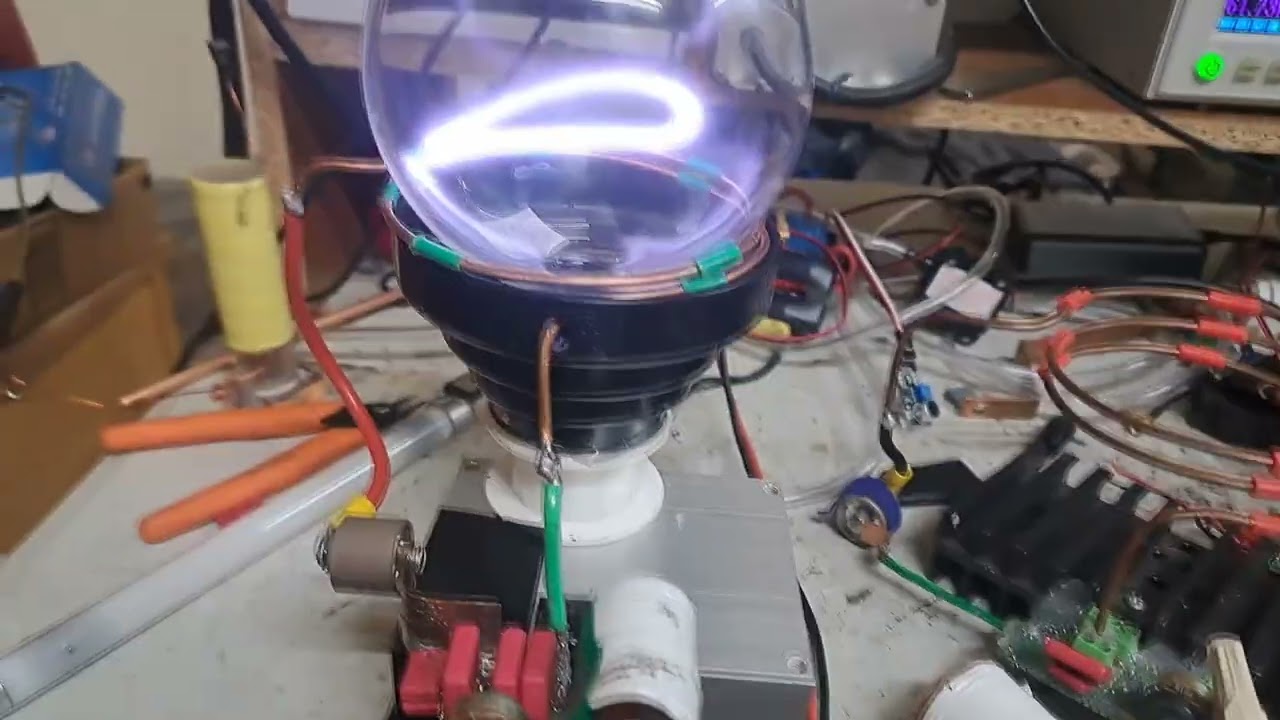

11Mhz SiC HFSSTC w/Glass Magneticitist 2024-11-12 | Some more runs of the most recent one I made. The plasma loading changes the network so you can see how this works with the flame burning the glass drawing less power than without. It's more of a stringy flame with the glass and much thicker without.Probably going to make at least a couple more of these, one being for 150-200V using a 1200V fet. Maybe after 4 or 5 of these and playing around with them I'll have a better idea of how to tune them at any given time.
HFSSTC Class E 11Mhz 350W Magneticitist 2024-11-11 | I killed my other 1200V fets by not noticing my resonant caps were destroyed, probably when I soldered them, so I went back to this 75pF doorknob even though I needed 100pF instead. I'm using the *UJ4C0750334KS fet now (oops I read it totally wrong off the package first, now corrected). I'm using the same general dimensions as Steve's circuit for the LC but have the 75pF cap and the primary is 7 turns instead of 6. The secondary is about 40 turns of 24AWG on a 1.25" former. I started with 100pF Cds, 14nF Cgs, and 4.7ohm series gate resistance. I ended up with no external Cds, 5nF Cgs, and the same 4.7ohms which I might increase a little. From there playing with the coupling helped me get it to switch nicely at 60VDC but it's still not quite pulling enough current. I'll need to add a few more nF on the gate then decrease the coupling a bit more, then hopefully this will put me in a region where I can hit about 400W at 60V and still have room to push 100V or so.
Steve Wards HFSSTC Circuits Magneticitist 2024-11-10 | Check out Ward's website covering HF stuff at wardpowerelectronics.comWhile the general operation of the circuit can be made to seem as if you only have a few variables to deal with, it's a lot more complicated than that. My attempted replication that immediately failed could have been for many reasons related to slight variations I made.When I get some more 1200V fets to play with I'll go for the replication that will take closer to 100-150VDC. The circuit I made using the 750V fet seems pretty resilient so far for just running at around 50V 9-10A. I have another I'm making using the same fet but I'll also test the UF3C120080K4S circuit when I get some wire for a secondary.
4.5Mhz PLL HFSSTC 5 Minute Run 250W+ Magneticitist 2024-11-03 | Driving a 650V SiC fet with the IXDD630 + SN74LV4046A for PLL feedback using a CT. It's a lazy mans approach with only the single drive stage using an IC and the final SiC fet power stage. The SiC is made to be able to take +15V/0V gate drive. My first run of this circuit at about 43V max was switching a little differently but it was still running cool at about 250W. I just didn't trust running it much over 40V. I have a single tiny 1nF cap on the drain of this fet and if I recall it had a lot more gate charge and drain capacitance than I anticipated. Maybe double that of the ones I'm going to start using. For that reason I decided to leave this at 4.5Mhz and just call it done after switching to 15V gate drive. While this can be a more complicated approach than the self oscillating circuits I find it to be more resilient and I can play around a little with the tuning at over 40VDC without worrying too much. I hit about 300V on the drain with 50VDC input. To keep the voltage down to about 60VDC or under I could try playing with the coupling to see if it could hit about 400W or more at that 60V.
H-Bridge Induction Heater + Enclosure 410g Copper Magneticitist 2024-10-25 | I had to run test this one more time after putting it all in the enclosure. It's still a little bootleg but overall will work out better. I ended up cutting some copper sheets to fit the capacitor and soldered them to the pipe to mount the cap that way. It ended up being more difficult to route everything than I thought and I needed all the extra space. Adding the bricks onto little cooling blocks saved a lot of space but when doing that you really need to make sure the water stays cold so the big fans need to stay running full blast. When combining my previous melts to remelt the full 400+ grams I only went up to about 1100W toward the last 5 minutes. The top started melting before the bottom and I had to add another piece in there to see the point at which it fell all the way through liquid and hit the bottom of the crucible.
H-Bridge Induction Heater Resonant Cap Test 1200W Copper Melt 87kHz Magneticitist 2024-10-19 | This was the last test run using the aliexpress resonant cap I just got before transplanting into an enclosure. Went from a ~3.3uF cap (1200V 330nF bank) at 74khz to 2uF (600V 650A) and adding 1 turn to the coil. This brought me to right around 85khz. After adjusting for a better bridge waveform it was around 87khz. It seems like running it at about 1kW got the crucible hot faster and even to copper melting point faster than before. The big resonant cap also feels like it's getting slightly warm at only 1200W so it will definitely need better cooling. The coupling transformer was not getting warm at all after shielding it from the crucible. I don't think the diameter of the copper pipe I'm using for the work coil is really big enough to be running anything over maybe 3-4kW. Or maybe it would still work by just moving more water that stays colder. In hindsight I probably could have gotten away with 1500W using the cheap induction cooker caps in a smaller build just to melt copper in a graphite crucible. Just putting a fan on them seemed to keep them from getting above warm. After melting down my first piece again and adding my leftover scrap pipe it came out to 170 grams. For the full pound or something like 2 pound capacity of the crucible with this tuning I can see it would automatically go up to maybe 1400-1500W and probably take something like 10-20 minutes all depending on the approach.
H-Bridge Induction Heater Copper Test 1200W Magneticitist 2024-10-18 | It's kind of cold out right now so instead of running my heater I'm just running this thing. I did eventually have to stop running it because it was starting to burn the wood next to the crucible due to an opening in the ceramic insulation. I had a suspicion that I was running this thing a little too far above resonance and tuned around with it but I ended back up at 74khz as giving me the best tank current. I turned it up to around 800W with some copper in it and let it sit there for about 10 minutes. After that time everything was pretty red hot but the copper was still rigid. Then I turned it up to about 900W and quickly noticed slight changes in the surface of the copper. It was getting there. I went ahead and just cranked it to 1200W and let it sit for a few more minutes and that's when I came back and saw it was melted. I'm not sure how long it actually took, it could have been pretty quick. Either way it was a nice liquid pool and it seemed to melt the copper down about as good as the aluminum at 700W. It would melt copper pipe almost instantly and the thicker bus bar copper just took a minute or so. This is giving me some confidence that maybe I could melt down larger amounts of copper at only around 1500W. I'll have to actually see how long it realistically takes on the next run cause I let this one sit at 800W for a while before upping the power. I have a nice industrial PC case I'm going to put this thing in but I really need to finish it first.. but I also don't really want to run any higher power unless I have it in the case. I might just lay some more ceramic wool down over the nearby components. The previous runs I actually had a 6A fuse in the variac which eventually popped and confused me cause I thought it was a 20A. I was at about 12A when it did. So that 6A fuse was sitting there red hot the whole time while I was melting aluminum haha. What I've learned so far is the bricks I'm using seem to handle 74khz fine and the induction cooker caps seem to handle 1200W just fine, but that's with a different tuning than I had before. What seems to struggle the most now is the water cooling. If I let the 24V fans run at full power I would guess it could keep the coil no more than lukewarm at up to around 2.5kW. Any higher than that I would assume I'd need to upgrade the water cooling even more by adding another water block and fans. I could swap out the large heatsink and replace it with small water blocks as well.

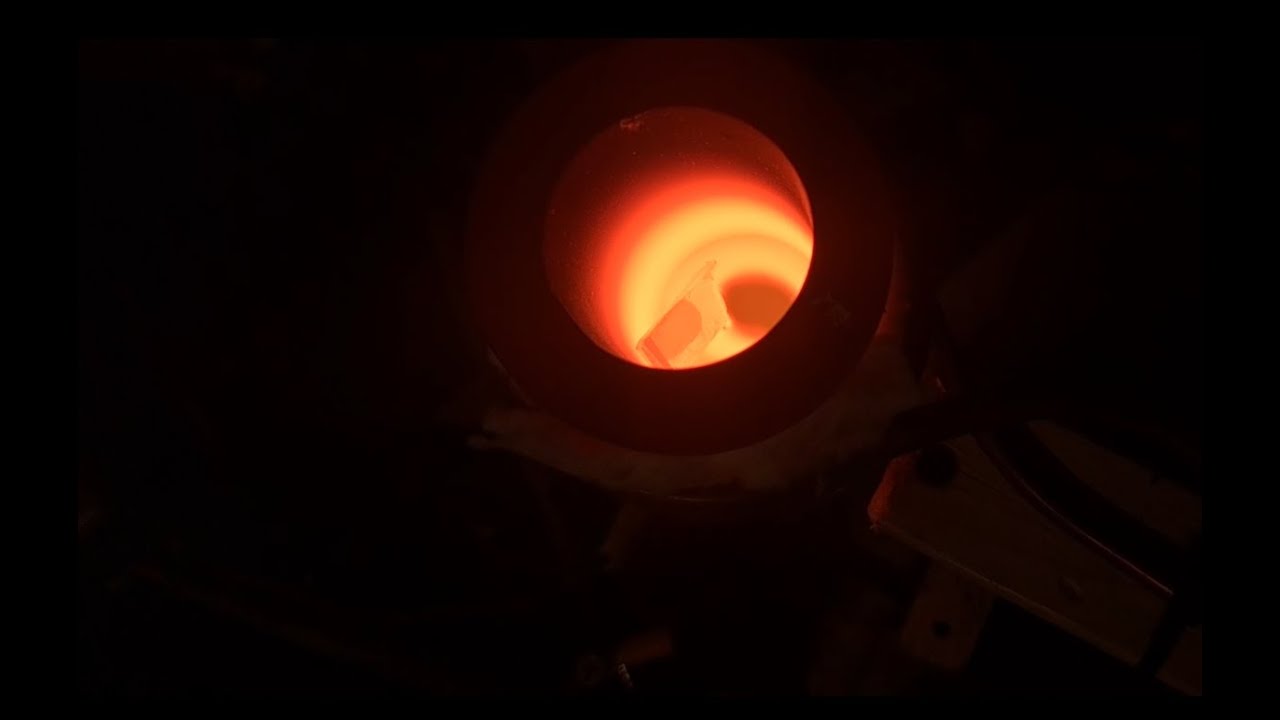

H-Bridge Induction Heater w/Pure Graphite Crucible 700W Magneticitist 2024-10-17 | I looked it up and realized I was using a silicon carbide graphite crucible before, which apparently works but just wasn't being heated up enough to help melt the aluminum all the way. This new crucible works much better and actually loads it down quite a bit. It's able to get red hot easily and then the aluminum inside also easily melts. The speed at which I could fill the crucible was kind of surprising. I can see how at twice the power or more it's just going to basically instantly melt down into the pool. Once the crucible gets hot enough at about 700W it seems like it could be filled to the top in just a few minutes. After cooling, the chunk was easily removed by just pulling it out. I can smell the presence of enough sulfur in the aluminum slag to make it smell like dookie so this is definitely not something I want to be doing without a lot of ventilation. There's basically more crap you end up with when melting aluminum alloys than I thought. Maybe one particular mix of alloy I added in there is what caused the sulfur smell because the other chunk I made about 1/3rd the size didn't smell at all.
H-Bridge Induction Heater Alu Nug ~600W Magneticitist 2024-10-15 | Looks like a lot of slag in that nug for the amount of aluminum I put in there so I'm guessing that's mostly from the foil. I should have a better sized crucible tomorrow to try again and hopefully fill more in it. I'll probably try 800W max for some time before waiting on the better resonant caps. I also tried some pieces of copper but it wasn't coming anywhere close to actually melting. I would need everything to get about twice as hot. It would get red hot but not pliable. While the Aluminum would increase the current draw, the copper did not.

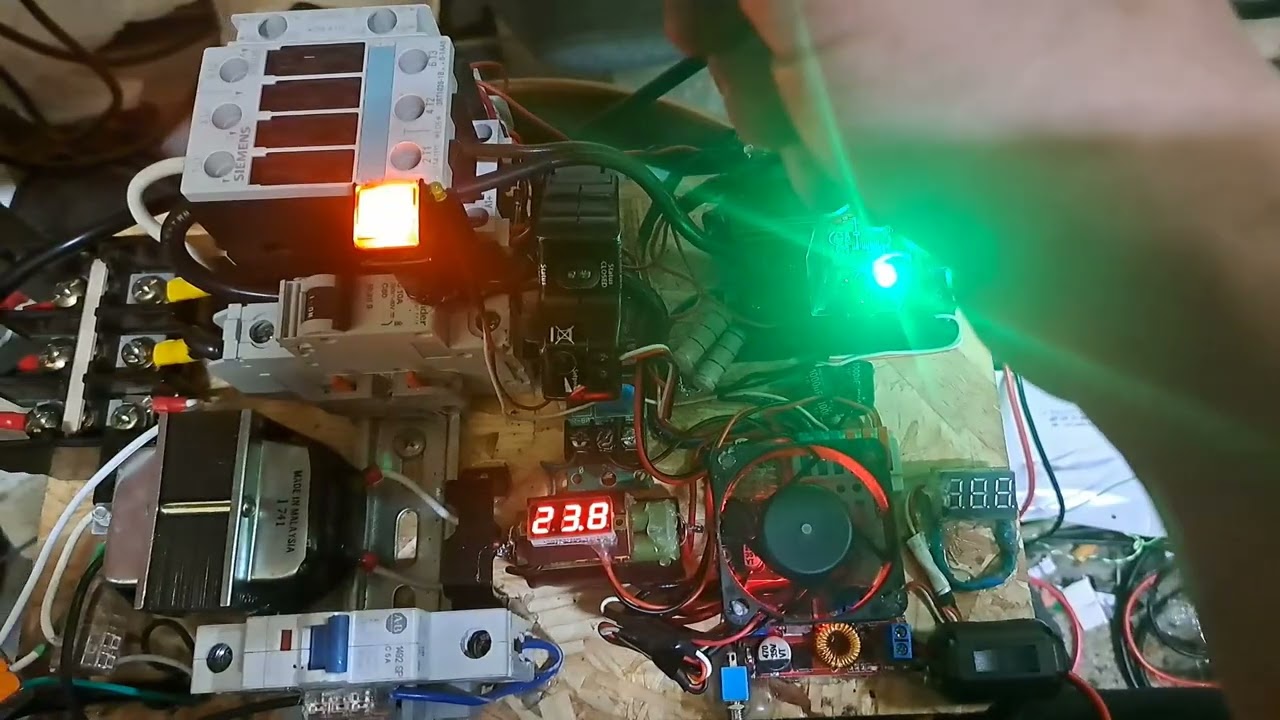

H-Bridge Induction Heater Aluminum Test ~500W Magneticitist 2024-10-13 | Added another CT to give me feedback again so now this is running with PLL feedback, has the LC OCD, and also has the line input OCP.Barely melting a small aluminum heatsink here at about the 450-500W RMS region. It took about 10 minutes of running at that wattage before the fat crucible and small heatsink started to turn red hot. Another 5 minutes or so before the aluminum started to sink down on its own. I'm guessing it would take at least a couple more hundred watts of power for that to turn into a molten pool over some course of a few more minutes. I can imagine based off that, some input closer to 1kW would easily melt larger amounts of aluminum for me without needing tons of supply amps. I still have a test rig here with caps I don't want to push too hard and some 10A switches but otherwise everything seemed to run great with this setup. I'm glad I added the current trip because my tank OCP is not really tuned yet and there are times the input current will start shooting up pretty quickly. I haven't tried yet but I imagine I could detune the PLL quite a bit and be able to crank the input voltage a lot higher. It's nice to be able to somewhat melt aluminum at only about 10A but I bet I could get that 10A at closer to 100VDC input with detuning and actually melt it.When I add the legit resonant cap and retune everything I'll need to then play with the windings on the coupling transformer. It looks like I'd be hitting close to 20A+ at only 120VAC. That's the only way I'd ever push over 2kW on 120 at home but I'll try to limit to around 15A for 1800W since that seems like it would melt a lot of things no problem. I don't really have a need for melting steel aside from being tempted to make evil security bolts. Luckily I would like to melt some copper and that should be easier than steel.I saw the crucible on scamazon for like 10 bucks so I grabbed it, but it has a strange shape which tapers in toward the bottom and it barely jams into the coil with the ceramic wool around it. I went ahead and got another one which is perfectly cylindrical all the way through and isn't quite as a big. That should make melting aluminum a lot easier. When I get my resonant cap in I still actually won't be able to run it cause I don't want to add like 2 more turns. I just need to dbl check all the dimensions etc then figure out how to stack 2 in parallel for 4uF. These random bricks works but it's already sort of an undertaking building this thing and I'd like it to be able to easily do a couple hundred khz. Not really sure how I'll pull that off without stacking a bunch of 247's but I need to make it all work well enough to cram into this old computer case I'm going to use for the enclosure.
