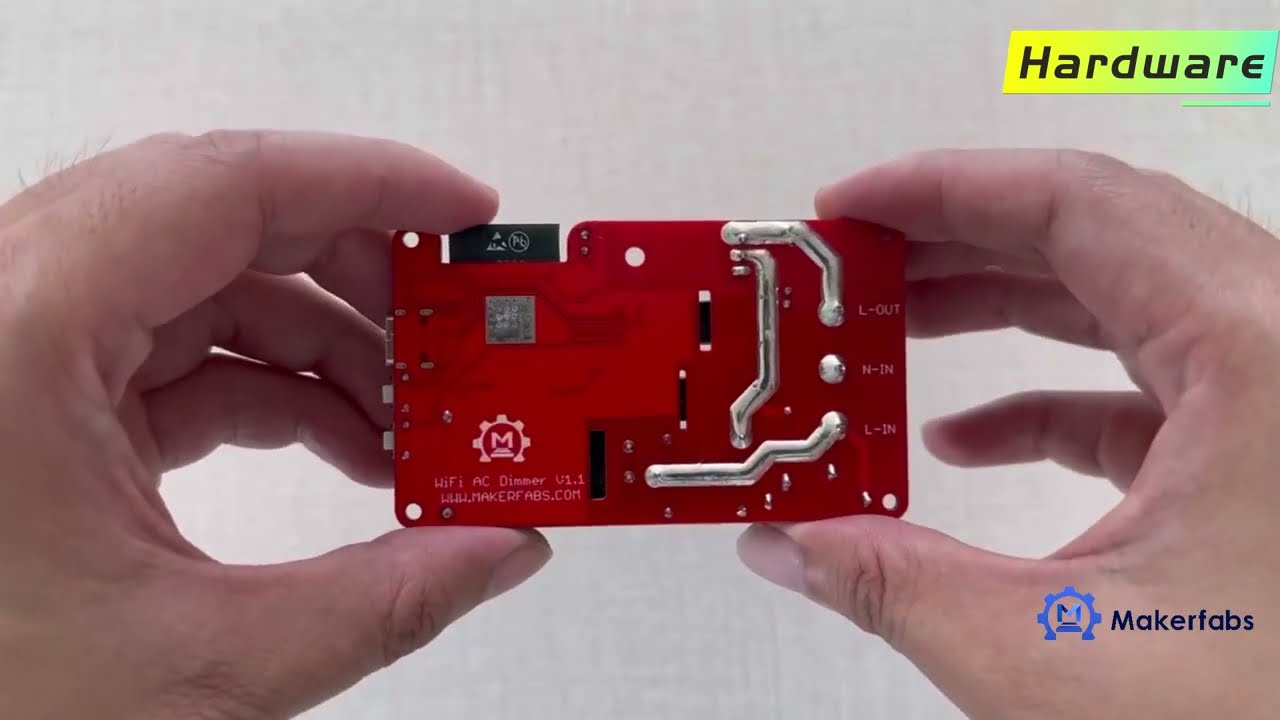

Makerfabs WIFI AC Dimmer chopper circuit is based on Triac BT139, and a zero-cross checking circuit, it detects the zero-cross points, and then the Triac controlled to chop the AC. Besides, to avoid the problem of AC can not be totally shunted off with Triac, a relay is implemented to make the AC totally On/Off.
Product Link:makerfabs.com/ac-dimmer-for-home-assistant.html
