When adjustable holes aren’t adjustable enough @Shapr3D
When adjustable holes aren’t adjustable enough  @Shapr3D
Uploaded January 2026 | Updated November 2026, 1 day ago

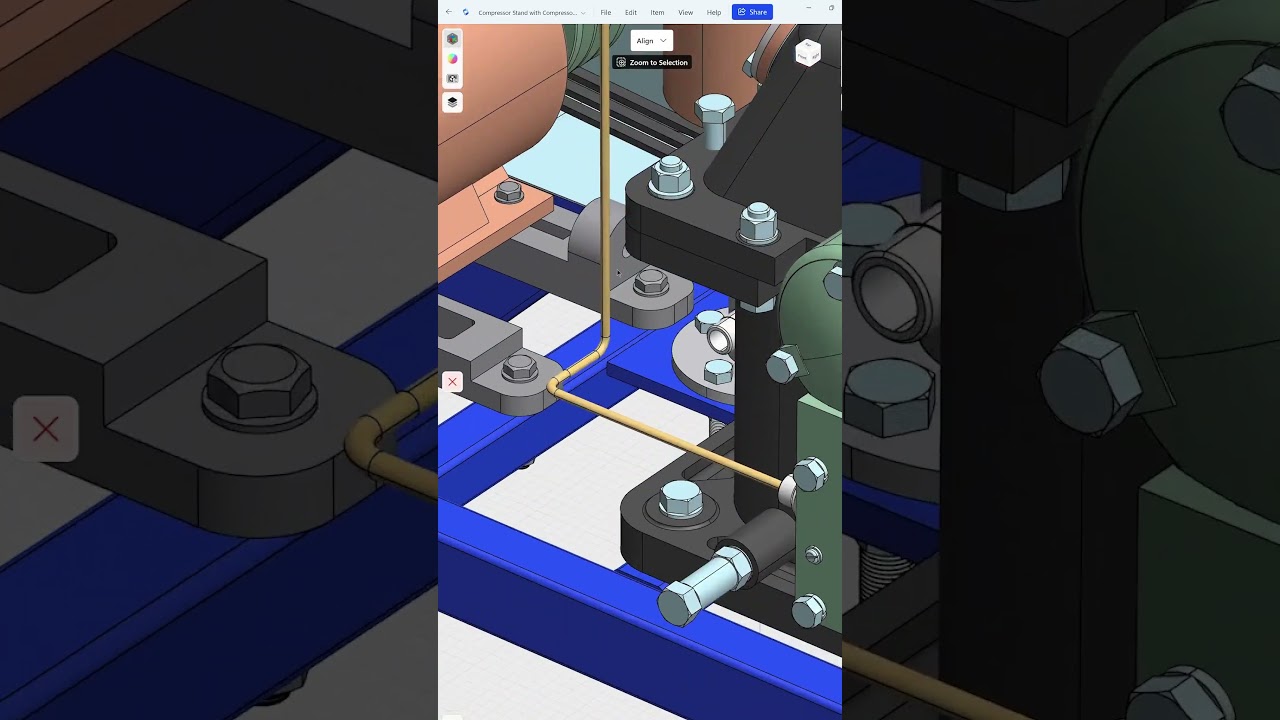

The original motor fixture used slotted holes for positioning. Works fine for rough adjustments, but try getting precise alignment and you’re stuck moving the motor by hand, tightening bolts, checking, loosening, adjusting again.

The redesign swaps that guesswork for a threaded rod. Now you can dial in exact motor position with controlled, incremental adjustments. No more iteration cycles with a wrench.

#Shapr3D #MechanicalEngineering
