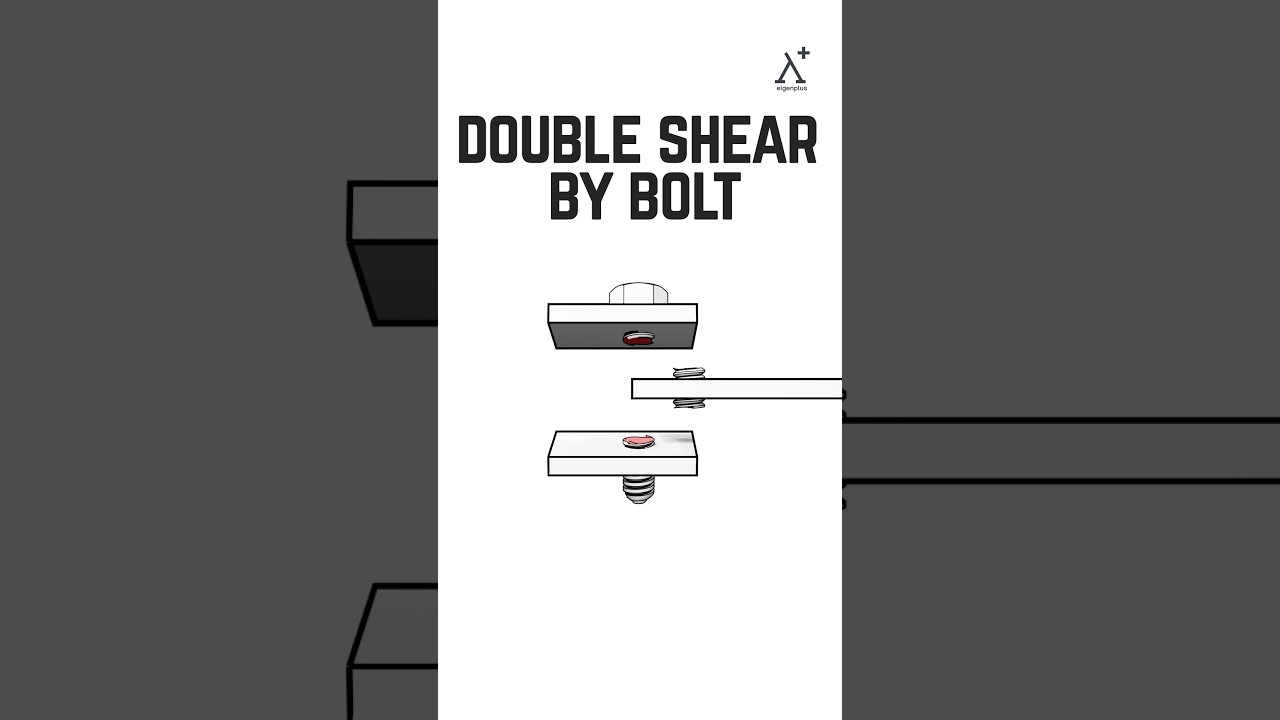

In a double shear connection, the bolt is resisted by two shear planes instead of one. This means the load is shared across two cross-sectional areas of the bolt, effectively doubling the area resisting shear.
π In this short, you'll learn:
β What the shear-resisting area really is
β Where the two shear planes are located
β Why a double shear connection is stronger than a single shear connection
β The engineering logic behind bolt design
Understanding shear planes is fundamental in machine design, structural engineering, and mechanical joints.
