Uploaded October 2020 | Updated September 2026, 21 minutes ago
VW long axle vs short axle. In this video I went over some of the differences between the long and short axles. Remember though, stock application, 67 was the first year of the long axle, but had a short spline. 68 (Non-IRS) had the long axle with a long spline.
Below is where I bought my VW Thing drums to solve my issues using the long axle/long spline setup, but allowed me to retain the 5 lug pattern.

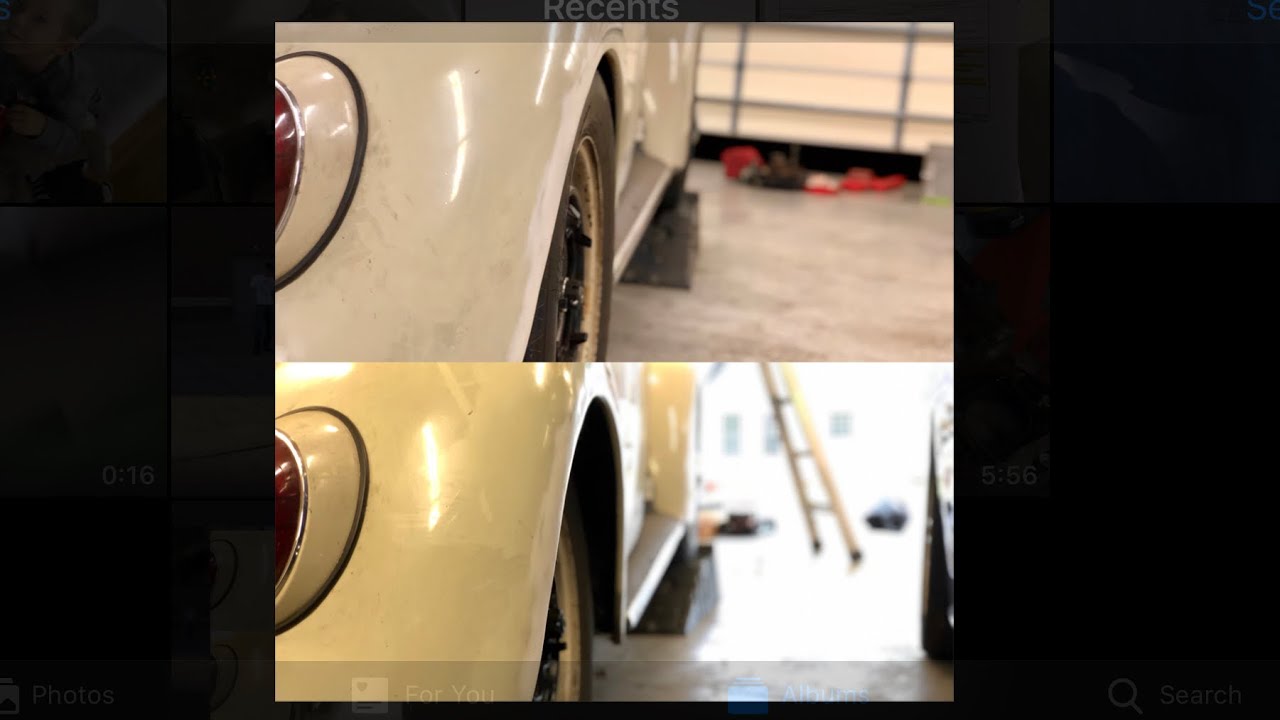

The over all difference in length (how much wider your tires will sit) was about 3.5” on each side.
*** I had no clearance issues!! ***
pacificcustoms.com/mm5/merchant.mvc?Screen=PROD&Product_Code=501615181a&Store_Code=PC
You will also need to get the longer hard brake lines and the longer emergency hand brake cable (using the longer ones off a 1968). If you are putting a longer axle on a 66 and older.
This is the backing plate assembly I bought:
Right side:
vwparts.aircooled.net/Rear-Brake-Backing-Plate-ASSY-Right-113-609-640E-p/113-609-640e.htm
Left side
vwparts.aircooled.net/Rear-Brake-Backing-Plate-ASSY-Left-113-609-639E-p/113-609-639e.htm
*Shot with GoPro Hero 8, in 4K.
