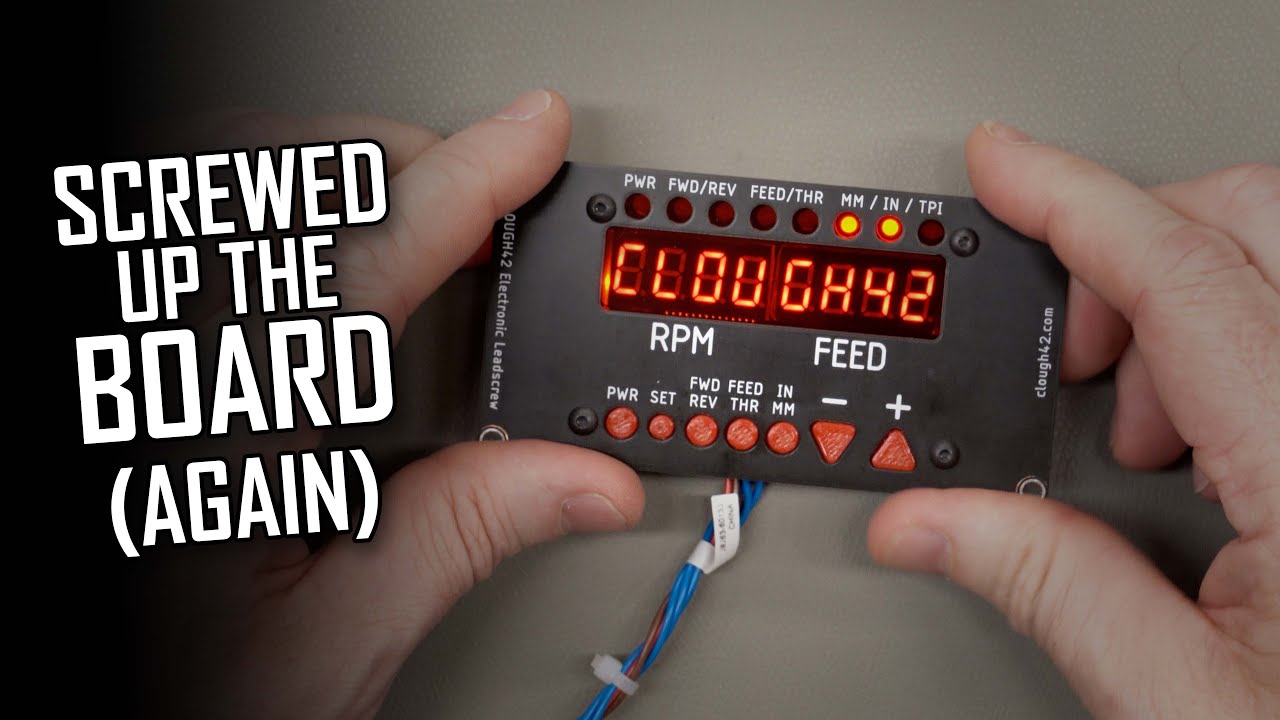

Today we're working on the Electronic Leadscrew project again. I've assembled and sold quite a few kits over the years, and as the market has changed, I've started having trouble getting good display boards, so today we're going to put together a design and have some manufactured. While we're at it, we'll take a look at all of the other parts of the kit and make some changes to make manufacturing them more efficient.

Lathe Electronic Leadscrew playlist: youtube.com/playlist?list=PLDlWKv7KIIr90ZZ7Zqt-ge5nVVdS3WVgg

Bambu Lab provided one of the 3D printers shown in this video:
*This site contains affiliate links for which I may be compensated

Bambu Lab X1-Carbon: bit.ly/3XzuET9
Bambu Lab X1-Carbon Combo: bit.ly/3JzYQaX
Bambu Lab Filament Guide*: shrsl.com/43e5h

Tools used in this video:
*This site contains affiliate links for which I may be compensated

Bondhus Metric Hex Key Set (Amazon*): amzn.to/3eqZzwb
Bondhus SAE Hex Key Set (Amazon*): amzn.to/3h9bJLZ
Dynamite Hex Driver Metric Set (Amazon*): amzn.to/2AUGIbX
Dynamite Metric Nut Driver Set (Amazon*): ebay.to/2C9w2GR
Mitutoyo 4"/100mm Digital Caliper (Amazon*): amzn.to/3dEBDb2
Hakko FX-951 Soldering Station (Amazon*): amzn.to/2XB9CD0
Hakko 611-2 Dual Solder Reel Stand (Amazon*): amzn.to/2H0Yhaf
High Temperature ESD Safe Mat (Amazon*): amzn.to/2Xz0n6D
BUD Industries CU-124 Project Box (Amazon*): amzn.to/2XSsORX
Kester #951 No-Clean Flux Pen (Amazon*): amzn.to/2KfuZq4

Bambu Lab X1 Carbon Combo 3D Printer: us.store.bambulab.com/products/x1-carbon-combo
Bambu Lab ABS Filament: us.store.bambulab.com/products/abs-filament

Raw Kevin MacLeod (incompetech.com)
Licensed under Creative Commons: By Attribution 3.0 License
creativecommons.org/licenses/by/3.0

00:00 Intro
00:58 Removing the elctronic leadscrew from the lathe
01:40 Disassembly
02:42 A closer look at the display boards
05:52 Designing a replacement
07:26 Testing the replacements--bad news
08:30 Double-checking the schematic
09:22 Testing again
10:14 Simplifying the lenses
12:27 Simplifying the spacers
13:57 Now the buttons don't fit
15:37 Making new buttons
16:43 Testing on the lathe--noise problems
19:02 Surface mount soldering
20:53 Testing again--Success?
23:11 Conclusions
