Uploaded October 2025 | Updated September 2026, 2 weeks ago

---

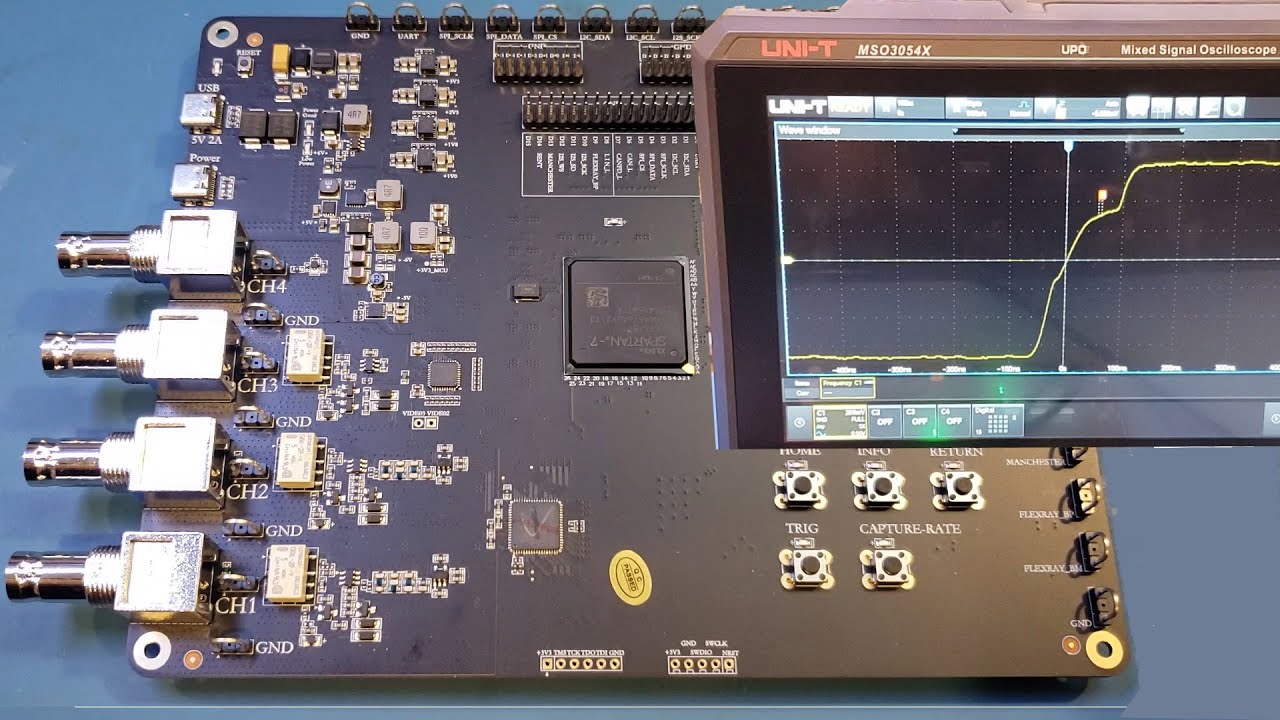

In this video, I demonstrated some of the capabilities of a UT-M13X oscilloscope demo board from UNI-T. This board can be used for functional testing of oscilloscopes and logic analyzers. Product link: uni-trendus.com/products/ut-m13x-oscilloscope-demo-board

youtu.be/Oytx2ASs3mw

00:00 Overview
01:56 Walkthrough of the hardware
05:10 Test setup, controls
07:39 ASK signal, trigger holdoff
09:14 PSK signal, region trigger
10:09 Complex signals, short pulse
11:01 Clock signal with glitch
11:38 None monotonic signal
12:57 Capture rate
14:20 Video signal
15:14 UART signal, conclusions
