UNI-T UT-ISOT Injection Transformer, Phase/Gain Margin Measurement, Loop Stability Analysis @KerryWongBlog
UNI-T UT-ISOT Injection Transformer, Phase/Gain Margin Measurement, Loop Stability Analysis  @KerryWongBlog
Uploaded October 2025 | Updated November 2026, 5 days ago

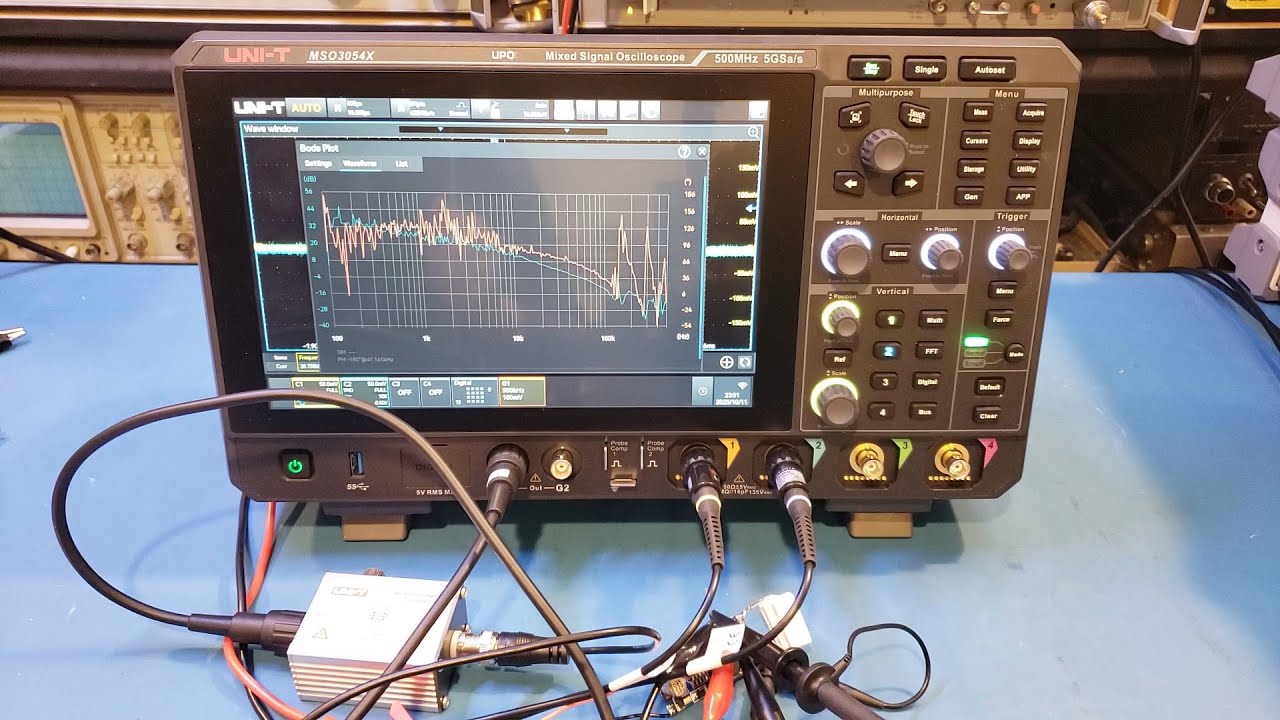

In this video, I demonstrated the measurement of phase margin and gain margin of a switching power supply using UNI-T's UT-ISOT isolation transformer for signal injection. Product link: uni-trendus.com/products/ut-isot

UNI-T MSO3054X 500 MHz Mixed Signal Oscilloscope Review: youtu.be/Oytx2ASs3mw

00:00 Oerview
01:48 Teardown
03:28 UT-ISOT frequency response
05:10 Experiment setup
08:20 LM2596 board modifications
09:52 Control loop phase/gain margin
13:59 Bode plot analysis, conclusions
