Uploaded February 2018 | Updated September 2026, 3 days ago

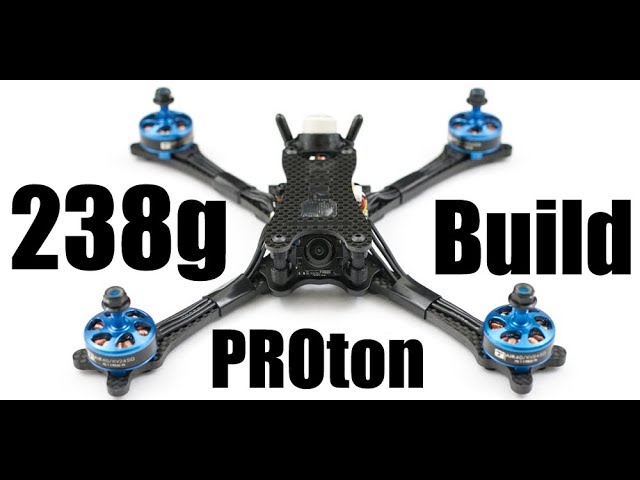

This ultralight quad build is part 1 of the PROton build series. There will be a race PROton, 6" long range/freestyle PROton and this build, the ultralight PROton.
A lightweight quad with moderately powerful motors, this setup is great for beginner to intermediate pilots. A 1300mAh 4s will get around 5 min flight time.
** EDIT**
I made a boo boo. At 21:30 I soldered the Smart Audio to RX6 instead of TX6. It needs to go to TX6. Follow the schematic on the website. That's what happens when I film with a camera in my face.
Check out the website for the build guide:
fpv-flightclub.com/ultralight-quad-build-proton
A bind and fly version is now available:
fpv-flightclub.com/products/dtf-flightclub-proton-ultralight
Chapters:
Intro
Build list - 0:32
Parts used - 1:48
Mount RX - 7:00
Put frame together - 9:57
Mount Arms - 13:10
Cut motor wires and mount - 14:52
Install wires for vtx and cam - 17:45
**Put white smart audio at TX6, not RX6 like I did, oops - 21:30
Add LED - 26:06
Test power up - 30:10
Bind the RX - 31:02
BetaFlight Flash Flight controller - 33:00
Motors tab - 34:30
BLHeli Configurator - 37:50
Star Wars! 38:08
Betaflight Configuration - 39:17
Ports - 40:25
PIDs - 40:55
Receiver - 41:35
Modes - 42:22
OSD - 43:15
CLI commands - 44:20
Mount VTX and camera - 46:06
GoPro mount - 52:34
How to use BetaFlightOSD - 53:12
Test before flight - 55:29
Finished weight - 57:00
EnvyAstro Test flight - 57:50
FlightClub PROton Skeleton with 5" Race arms - tinyurl.com/yb8ml7zg
Cicada F4 30A ESC with BetaFlightOSD - tinyurl.com/yd7ah94b
FrSky XM+ - tinyurl.com/y8c8cspa
Foxeer Arrow Micro 2 - tinyurl.com/yd36brlm
TBS Unify RACE VTX - tinyurl.com/y7bgacb4
U.FL AXii LHCP antenna - tinyurl.com/y8376hjb
Tmotor Air40 2450KV - tinyurl.com/yc5dofrn
PROton LED - tinyurl.com/yd8jee3g
Matek LED - tinyurl.com/y82vv5dt
Bondic great for securing U.FL connector - amzn.to/2FhJaWo
Gorilla Glue Double Sided tape - amzn.to/2DDbuSR
Weller WESD51 Soldering station - amzn.to/20s97Zn
Rosin core solder - amzn.to/1l6IM2P
Soldering Vise - tinyurl.com/ybey638c
PROton GoPro Session Mount - tinyurl.com/y8wquldl
GoPro Session - amzn.to/2GVF3Ru
HQ Props 5040 tri blade vs1- tinyurl.com/y7p64dsk
A build kit is available for this build. It includes all the misc parts (heat shrink, m3x16 screws, 20mm standoffs, XT60...), the cheat sheet, Taranis file and BetaFlight CLI program files.
fpv-flightclub.com/products/ultralight-build-kit
If you found this post helpful, it would be super cool if you purchased the components from my store or purchase items from my Amazon links. These posts are expensive and take a loooong time to make so the purchases make it possible for me to keep making them. Thanks in advance, I greatly appreciate it :)
-------------------------------------
Don't forget to subscribe!
Check out our website - fpv-flightclub.com
Like us on FaceBook - facebook.com/fpvflightclub
Follow us on Instagram - instagram.com/fpvflightclub
