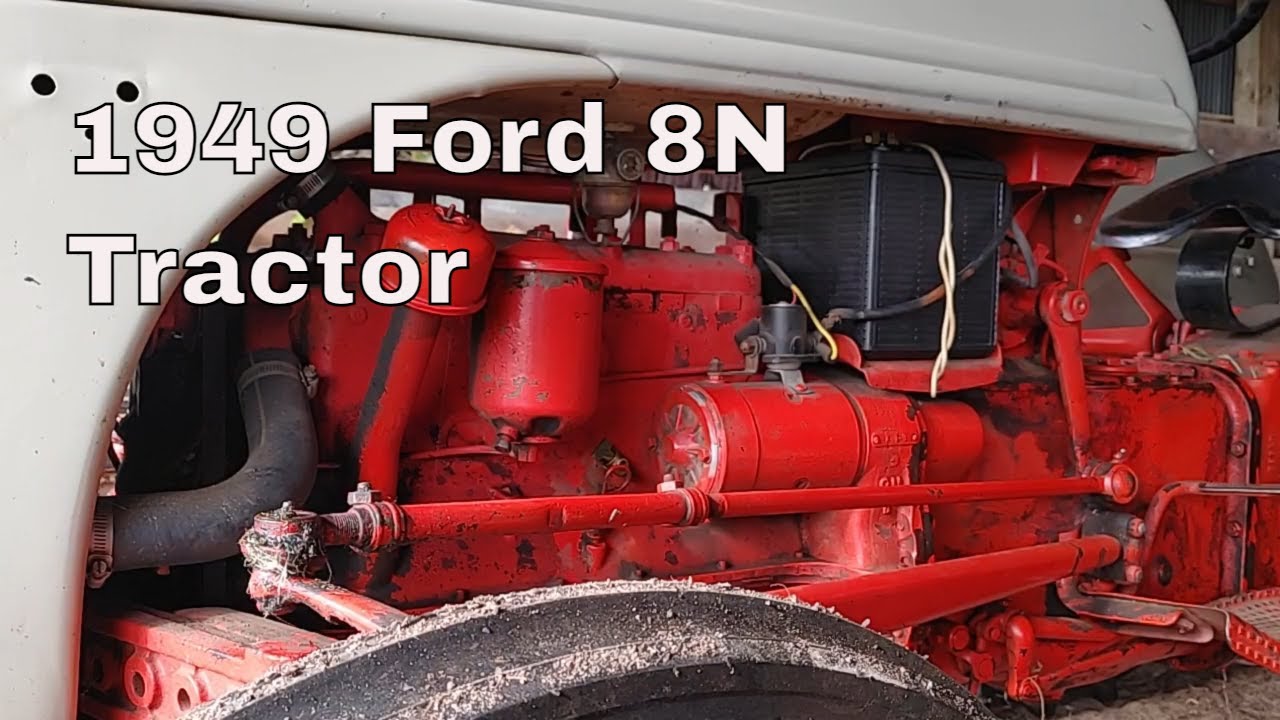

To remove the sediment bulb (fuel bowl assembly) from your 1949 Ford 8N tractor, follow these steps:
Turn off the Fuel: Locate the fuel shutoff valve, typically under the gas tank, and turn it off to prevent fuel from flowing while you work.
Release Pressure: Open the fuel line (where it connects to the carburetor) to release any remaining pressure. You can loosen the line or a drain plug if present.
Remove the Fuel Bowl Assembly:
Unscrew the retaining nut or clamp that holds the sediment bulb in place.
Carefully lower the glass sediment bowl.
Be mindful of the gasket that seals the bowl to the housing. If it’s worn, you may need to replace it.
Clean or Replace the Bowl: Clean any dirt or debris from the bowl and check the screen filter above it. If damaged, replace the screen and gasket.
Reassemble: Put the cleaned or new sediment bulb back in place, ensuring the gasket is seated properly to prevent leaks, and tighten the retaining nut or clamp.
Turn Fuel Back On: Reopen the fuel valve and check for leaks.
