Totally Homebrew 40M CW Transceiver @N6QW
Totally Homebrew 40M CW Transceiver  @N6QW
Uploaded February 2021 | Updated November 2026, 4 hours ago

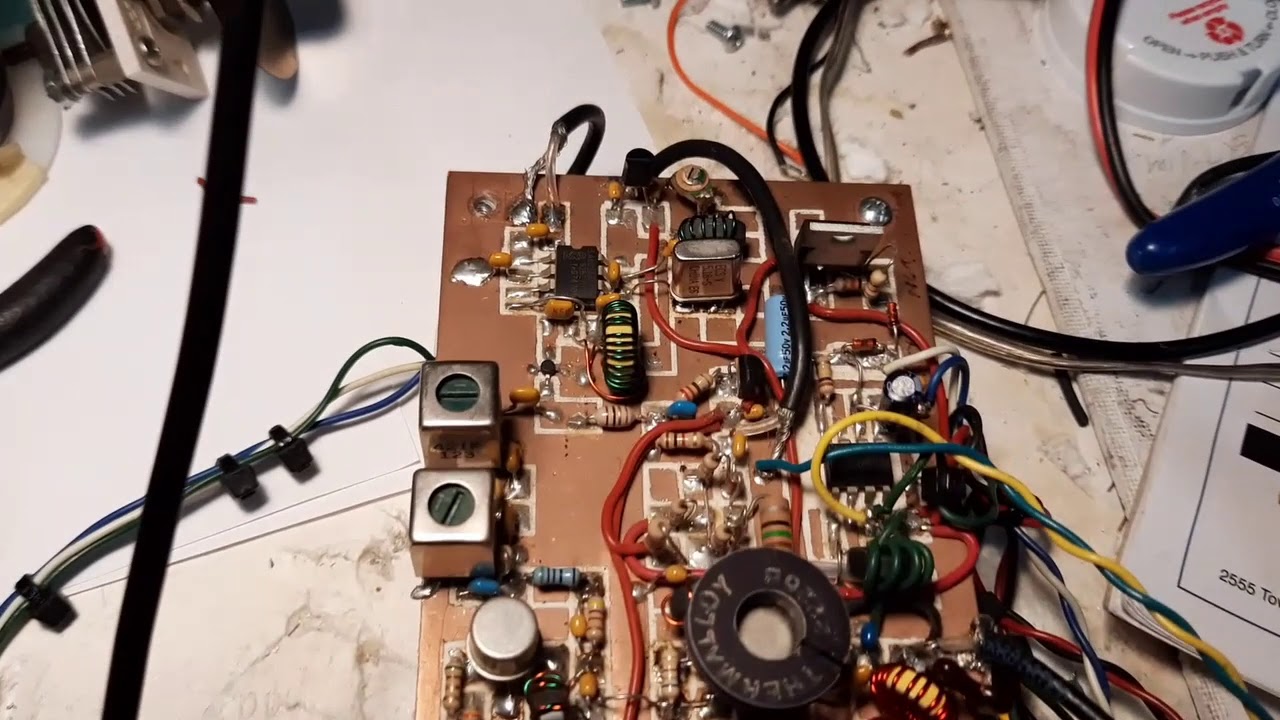

This is an advanced technology CW Transceiver featuring 4 MMIC Amplifiers, Break-In operation with a superhet design and Varactor Tuned VFO. The power output is about 600 milliwatts and tunes 100 kHz of 40Meters. Includes side tone.
