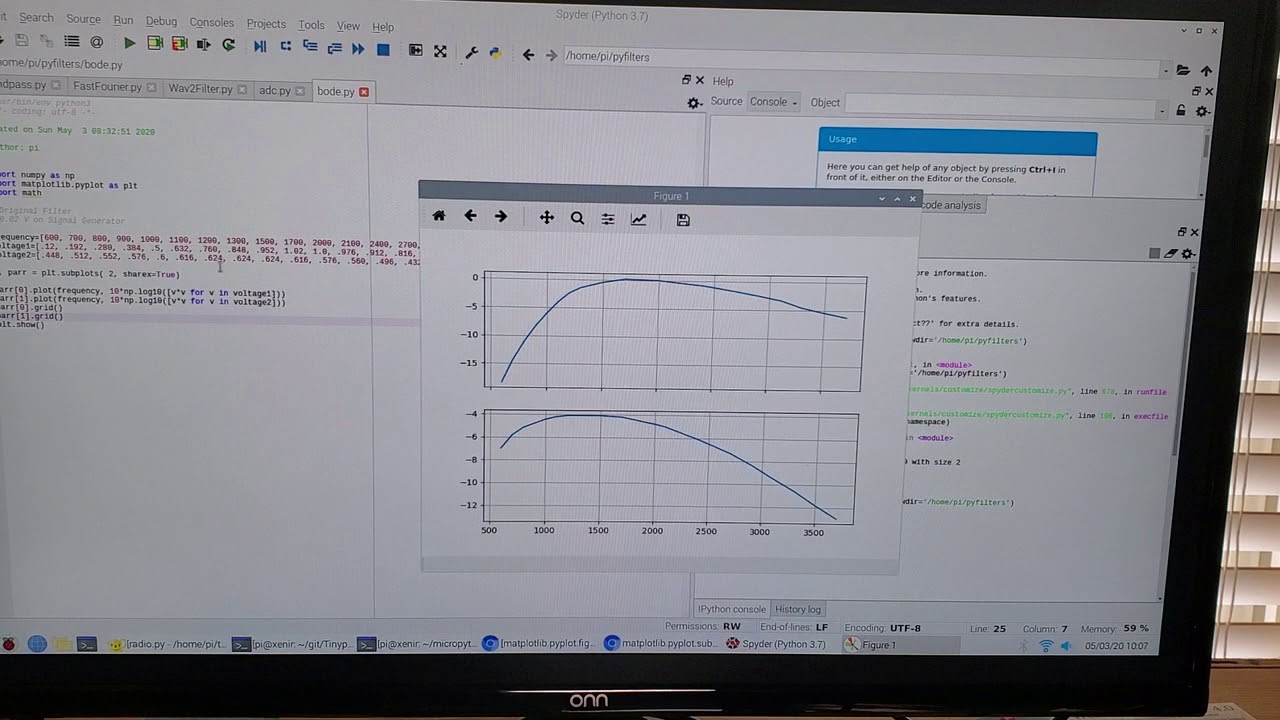

This is the final video in the receiver side. I'll move on in the next videos to a phasing SSB exciter. I ended up with an 8 pole Chebyshev filter the design files for use in the filter design tool tools.analog.com/en/filterwizard are here:
github.com/thaaraak/Tinypico-Radio/tree/master/filter
Just use the "load" button
The kicad schematic and board is here
github.com/thaaraak/Tinypico-Radio/tree/master/kicad/Receiver
I have included a pdf of the schematic also
