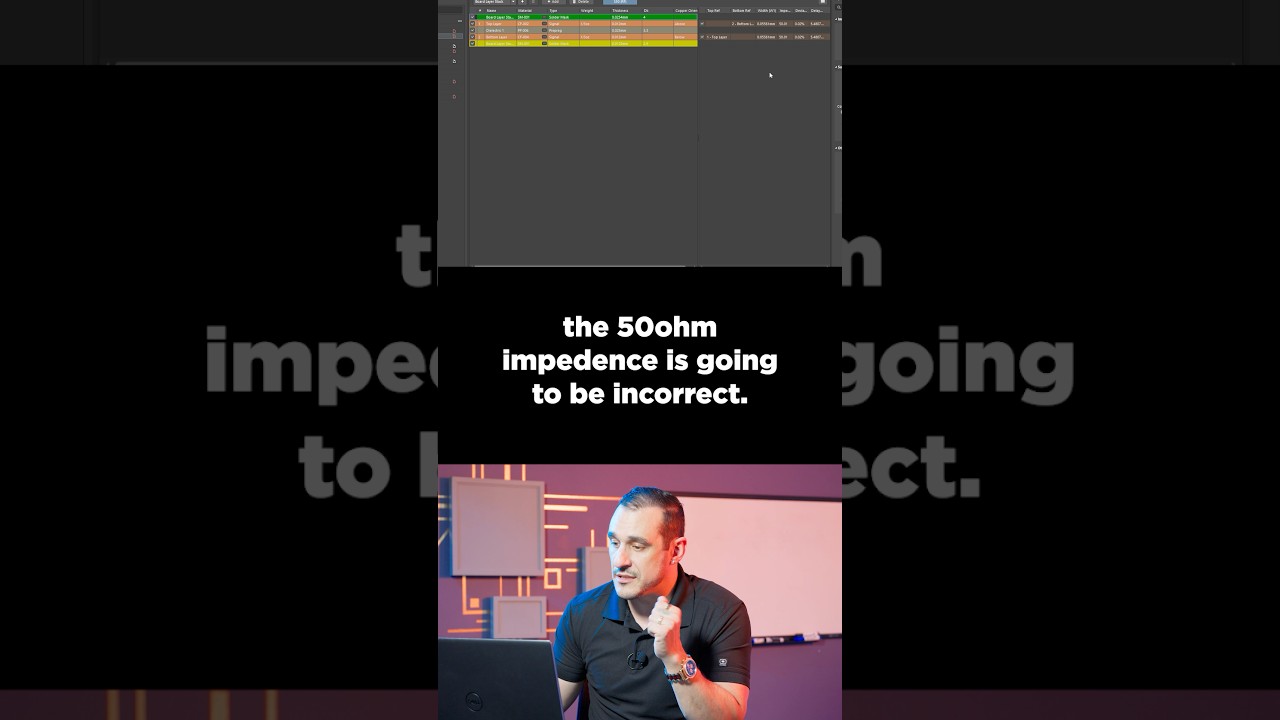

In this One Minute PCB Design Review, Tech Consultant Zach Peterson reviews a GPS pet tracker built on a flexible PCB. Zach opens by praising the project's complete, well-organized hardware specifications document before digging into the board itself, where he examines the power architecture, the non-rechargeable battery driving a 2.8V main power rail, and the flex stackup behind the design. Along the way, he flags a 2mil trace width calculated for 50ohm impedance that won't hold up on a true flex construction with base material, coverlay, and adhesive.
Zach also explains why a rechargeable battery paired with a USB charging port could improve this GPS tracker, and how stiffeners are essential for protecting the solder joints on the large integrated circuit and LGA package in a flex design. If you're designing flexible PCBs, wearables, or compact IoT tracking hardware, this quick review packs in practical guidance on controlled impedance, flex stackups, battery selection, and component placement.
