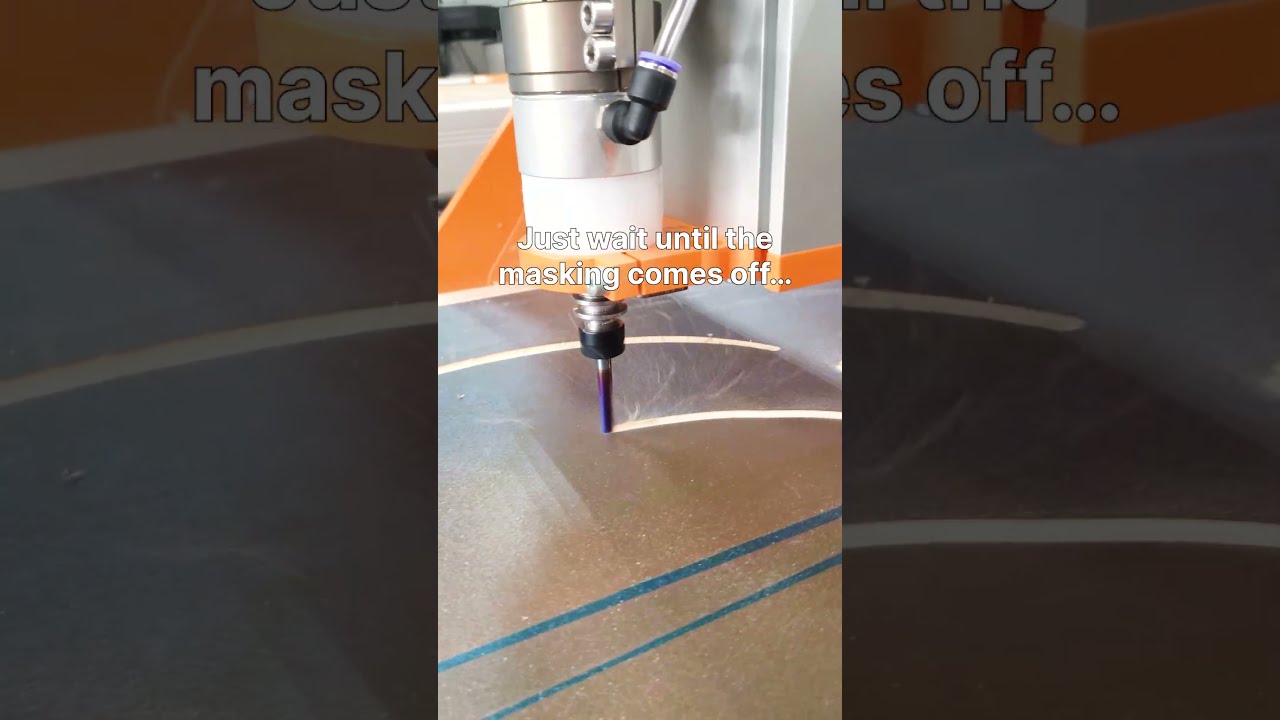

Cut. Paint. Peel. đ What do you think of how it turned out? Making a layered pumpkin cutout on the Stepcraft M.1000 CNC! I used three different size downcut bits to efficiently clear the larger areas while still getting all of the fine details, then finished the outside profile with a compression bit.
After cutting, I rounded over the backside, pulled off the Oramask, and revealed the finished design. Definitely one of the most satisfying parts of this project! Project plans and all of the tools used are available on our website.
Project Plans, item no. PUMPKIN-STACK
toolstoday.com/pumpkin-stacked-cutout-cnc-plans-downloadable-and-customizable.html
Stepcraft M.1000
toolstoday.com/stepcraft-m-1000-cnc-system.html
I started by applying Oramask 813 to the painter surface of the plywood, then. I picked up the Amana Tool 2-Flute Spektra⢠coated downcut bit to do the large area of the pocket. Please watch and let me know what you think!
Amana Tool 46202-K SC Spektra Extreme Tool Life Coated Spiral Plunge 1/4 Dia x 3/4 CH x 1/4 SHK 2-1/2 Inch Long Down-Cut Router
toolstoday.com/v-13779-46202-k.html
RPM: 18,000
Feed Rate: 100ipm
Plunge Rate: 50ipm
Depth of Cut: 0.06â
Amana Tool 46200-K SC Spektra Extreme Tool Life Coated Spiral Plunge 1/8 Dia x 1/2 CH x 1/4 SHK 2 Inch Long Down-Cut Router Bit
toolstoday.com/v-13777-46200-k.html
RPM: 18,000
Feed Rate: 70ipm
Plunge Rate: 35ipm
Depth of Cut: 0.06â
Amana Tool 46233-K SC Spektra Extreme Tool Life Coated Spiral Plunge 1/16 Dia x 3/16 CH x 1/4 SHK 2 Inch Long Down-Cut Router Bi
toolstoday.com/v-14497-46233-k.html
RPM: 18,000
Feed Rate: 40ipm
Plunge Rate: 20ipm
Depth of Cut: 0.06â
Amana Tool 46176-K CNC SC Spektra Extreme Tool Life Coated Compression Spiral 1/8 D x 13/16 CH x 1/4 SHK x 2-1/2 Inch Long Router Bit
toolstoday.com/v-14528-46176-k1.html
RPM: 18,000
Feed Rate: 100ipm
Plunge Rate: 50ipm
Depth of Cut: 0.06â
Amana Tool MR0110 Miniature 3/32 R Corner Rounding with 3/16 D Ball Bearing x 3/8 D x 3/8 CH x 1/4 Inch SHK Carbide Tipped Router Bit
toolstoday.com/v-11229-mr0110.html
#short #shorts
