Uploaded June 2026 | Updated September 2026, 3 weeks ago

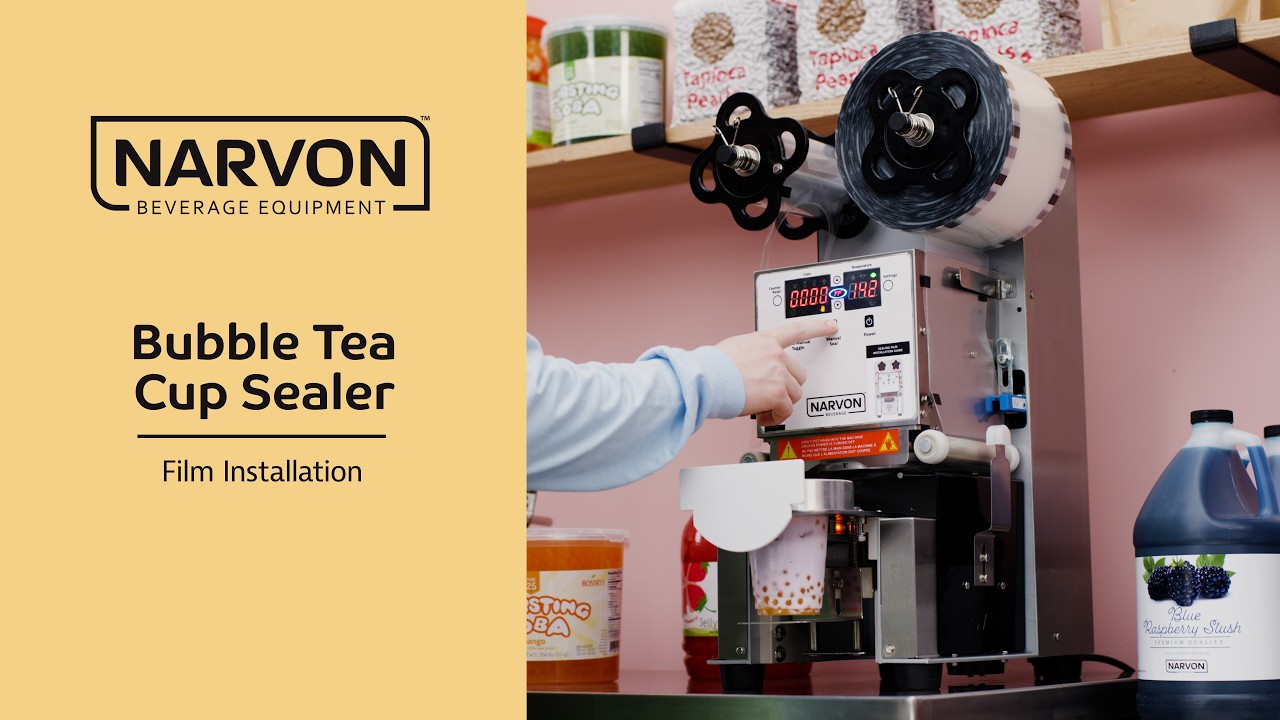

Installing sealing film on a Narvon bubble tea cup sealer starts by removing the butterfly clamp, spring, and washer from the machine's right arm. The film clamp is inserted into the roll of film with the larger side sitting flush against the roll before the assembly is reinstalled and secured on the right arm. The same hardware is then removed from the left arm so the discharge roll can be positioned between the plastic film clamps with the steel bar correctly aligned and secured in place.
Shop All Narvon Beverage Supplies:
https://link.webstaurant.store/narvon-Jun-10
Shop All Bubble Tea Equipment:
https://link.webstaurant.store/bubble-tea-equipment-Jun-10
Learn More about Bubble Tea Supplies:
https://link.webstaurant.store/bubble-tea-supplies-list-guide-Jun-10
After both rolls are mounted, the film is routed under the retention nut and through the film sensor on the right side of the machine. The film is then fed through the bottom of the unit, passing beneath the plastic rollers and over the steel bars before being attached to the discharge roll. To complete the installation, the front plastic clamp is removed, the film is fed through the slit and secured with the steel bar, and the hardware is reattached while ensuring the roll rotates counterclockwise for proper operation.
Installing sealing film on a Narvon bubble tea cup sealer starts by removing the butterfly clamp, spring, and washer from the machine's right arm. The film clamp is inserted into the roll of film with the larger side sitting flush against the roll before the assembly is reinstalled and secured on the right arm. The same hardware is then removed from the left arm so the discharge roll can be positioned between the plastic film clamps with the steel bar correctly aligned and secured in place.
Shop All Narvon Beverage Supplies:
https://link.webstaurant.store/narvon-Jun-10
Shop All Bubble Tea Equipment:
https://link.webstaurant.store/bubble-tea-equipment-Jun-10
Learn More about Bubble Tea Supplies:
https://link.webstaurant.store/bubble-tea-supplies-list-guide-Jun-10
After both rolls are mounted, the film is routed under the retention nut and through the film sensor on the right side of the machine. The film is then fed through the bottom of the unit, passing beneath the plastic rollers and over the steel bars before being attached to the discharge roll. To complete the installation, the front plastic clamp is removed, the film is fed through the slit and secured with the steel bar, and the hardware is reattached while ensuring the roll rotates counterclockwise for proper operation.
