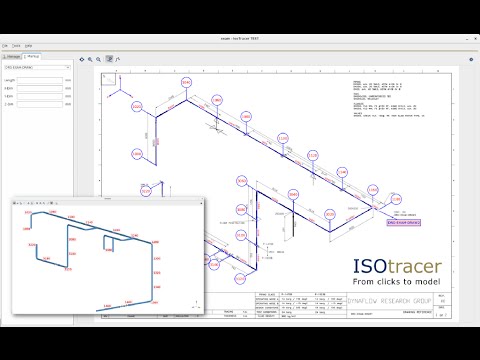

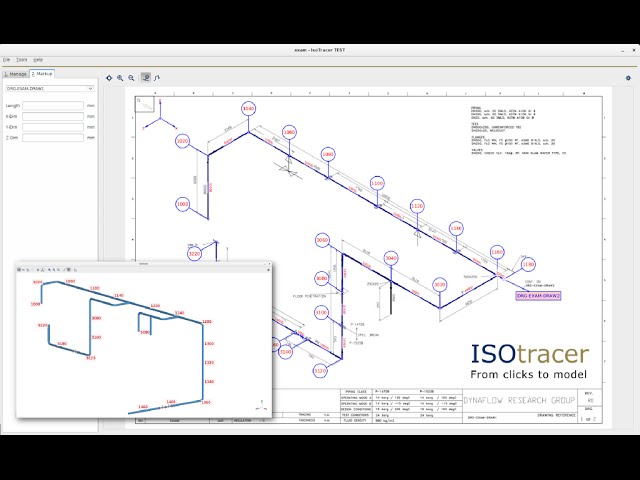

ISOtracer is the most effective tool to rapidly construct a 3-D piping model from isometrics by simply clicking on your isometrics. The high level of build-in intelligence limits the user interaction to a minimum, allowing for an extremely fast modeling. The immediate construction of the 3-D model while ‘tracing’ the pipe system on the isometric allows not only for a visual verification by the user, but also for a number of automated checks to inspect correctness of the constructed model.
In brief, the steps involved are:
Load isometrics
Build model by clicking on (tracing) the isometrics
Export model to Caesar II/BOSfluids and print your marked-up isometrics
