frank howarth | Shop Tour Part 2: Dust Collection @frankmakes | Uploaded January 2018 | Updated October 2024, 17 hours ago.

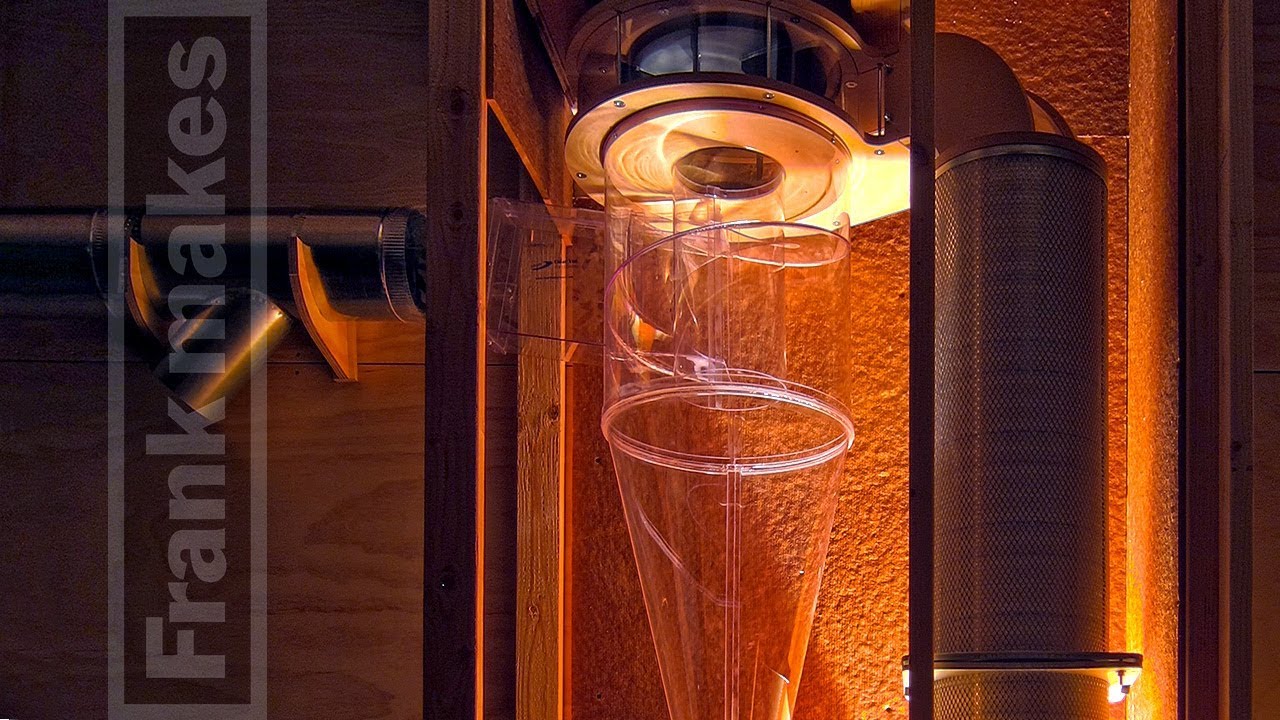

In this second part of a longer series of shop tour videos, I go over the dust collection in the shop. The dust collector is a 5 hp Clear Vue Cyclone. It is in a sound cabinet in the corner of the shop behind the CNC router. The wall construction of the cabinet is 2 by 4 studs with sound board on the inside, ¾ inch plywood on the outside, and batt insulation in the middle. The cabinet consists of a space for the cyclone, the filters, and a 180 gallon dust bin. The dust bin is permanently attached and has to be shoveled out when emptied. There is a main 8 inch line running across the short wall of the shop into the cyclone. Off of this there are three 6 inch lines that drop into the floor and provide dust collection access points in the shop floor.

Shop Tour Part 1: youtu.be/vmV1G2OQO9o
CNC Dust Collection part 1: youtu.be/hqyxRLoujts
CNC Dust Collection part 2: youtu.be/7-HiTWQbprk
DeWalt GE RAS Dust Collection: youtu.be/Rwd6i3UmbMI
