Hi all

I begin to better know how to use those magnetic srean.

Very interesting indeed , not so cheap but very good return on investment i think.

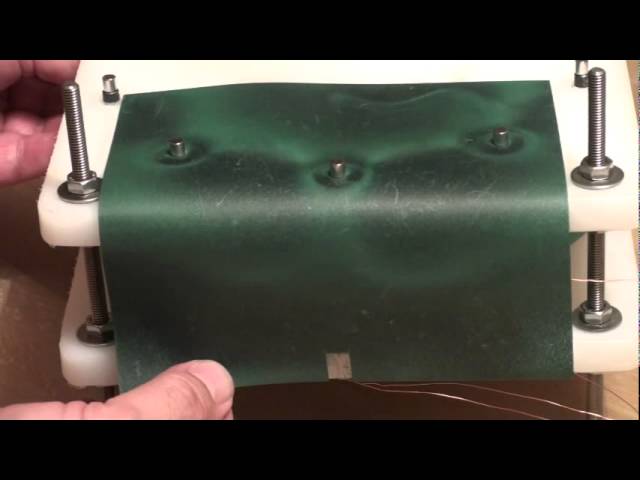

So for this video i try to show in 3 D what occures on the top and on the side
view . so you get ( i hope ) a better idea of the magnetic flux system.

the interesting thing is that the very small but powerfull (N45 ) neo magnet on top of the ferrite core creates a second large orbit on the magnetic screan.
And this orbit is the smallest radius at TDC and fluctuate on all other position of the rotor magnet

Another interesting point is the "Sherlockolmes " effect as Nul-Points denominated it .
If i return one magnet in a repelling position to the passing rotor magnet, nothing more is acting on the magnetic screan. ??
And as i sayd, in my generative test, the best input to output results are in ATTRACTION position of stator magnet.

OK lets discuss it all at OU under "Muller-Dynamo" thread-

Yep anyway always fascinating those magnetic fiel

Good luck at all

Laurent
