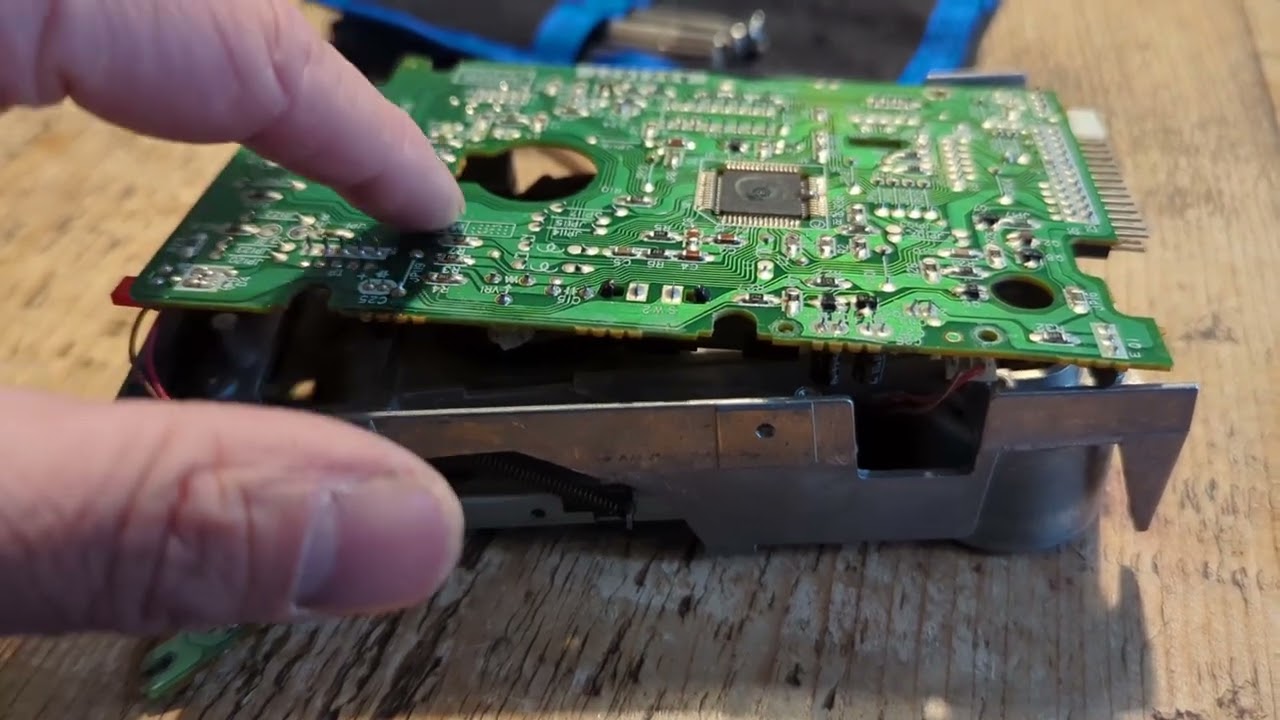

All the guides assume that all the connectors you need to disconnect to access the drive belt are at the rear of the drive. But this 1987 unit has connectors at the side.
Simple enough if you know how.
This applies to older CPC and PCW's but possibly only early +3's. The chips in this 6128 are dated 1986 but the drive 1987. But it may not be the machines original drive.
BE WARNED! When you remove the circuitboard the drive write protect pin will fall out. Make sure you don't lose it and you need a needle tipped plier type tool to reinsert it in the whole. The wide bit goes at the bottom of the hole.
Anyway quick and messy video designed to help people.
