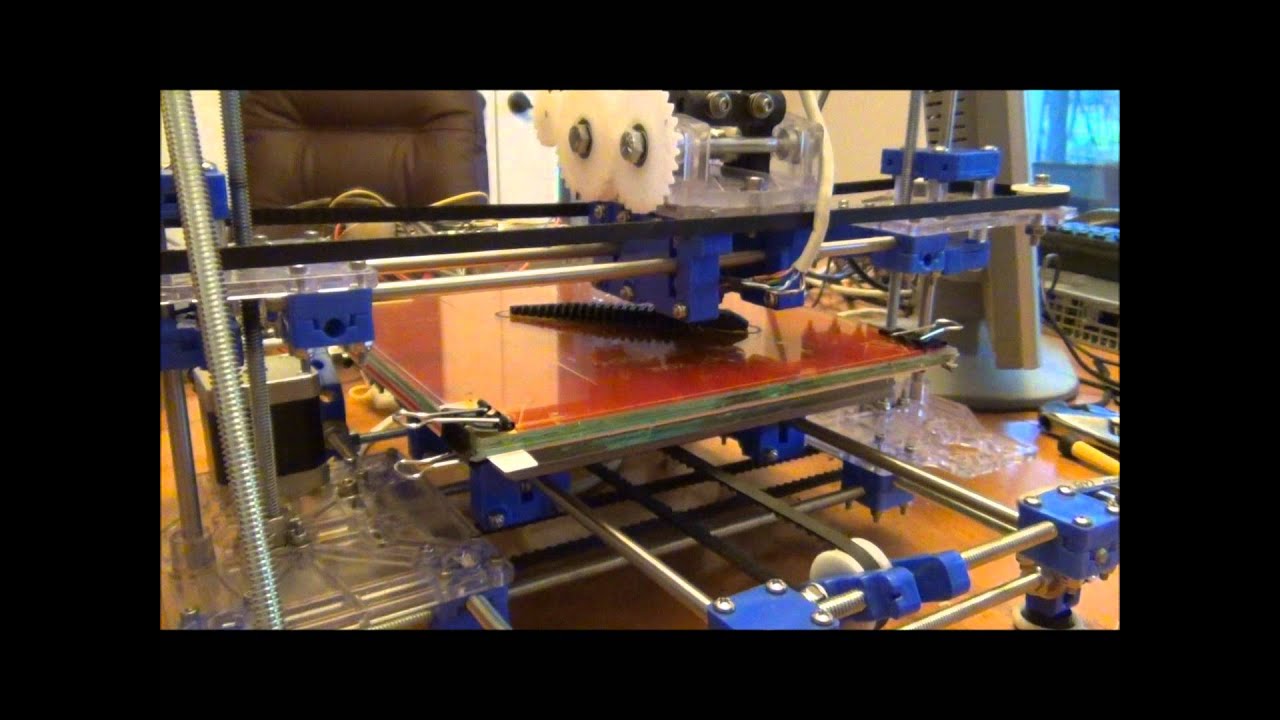

This is my SeeMeCNC H-1 3d printer. I modified it to accept a RepRap style heated printing bed. I am printing a snake that was downloaded from Thingiverse.com
Using 1.75mm black ABS with the hot end at 220C and the headed bed at 100C
Also in the shot is the extruder that shows the various extrusion speeds set up with Slic3r.


Here is more information on the heated bed:
The bed draws 12 amps at 12vdc

cgi.ebay.com/ws/eBayISAPI.dll?ViewItem&item=270924717814#ht_2424wt_1397

PCB Heatbed MK2 specifications:
Dimensions 214 x 214mm
Laminate FR4 1.6+-0.15mm
2 layer, 35um Copper
HAL Lead-Free Plating
Red Soldermask - both sides
White Silkscreen - both sides
Through hole or SMT resistors and LEDs
Description from reprap.org/wiki/PCB_Heatbed_MK2
