I am assembling parts for my Pick and Place machine.

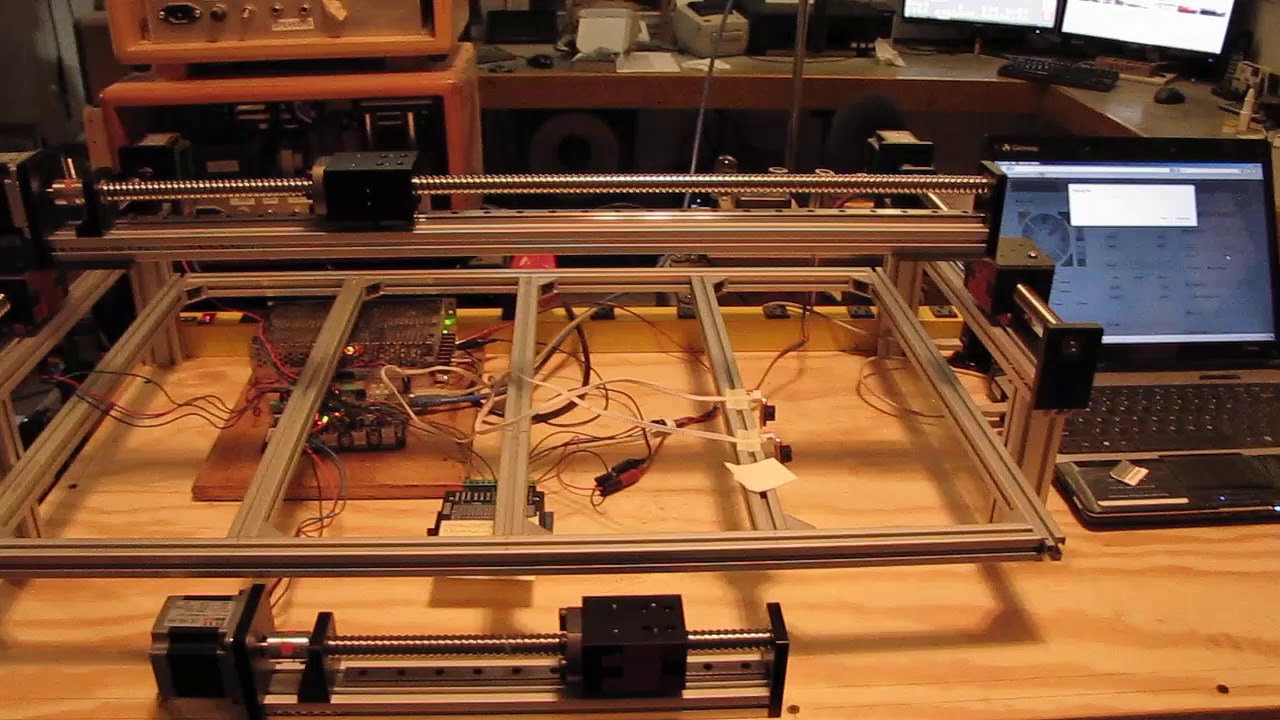

This video shows the ball screws, power supply and Smoothie board and the 80/20 inc frame.
The frame piece are 20 x 20 mm
The stand up legs are 40 x 20 mm
The Y axis is two ball screws running in sync.

Here's a link to the Merchant on Ali Express for the ball screws.
They have a bunch of different lengths
aliexpress.com/item/32590236818.html

My Pick and Place play list is here
youtube.com/playlist?list=PLVvDFekIYJjcKfydrG9djrfOmTVjUm5Yf
