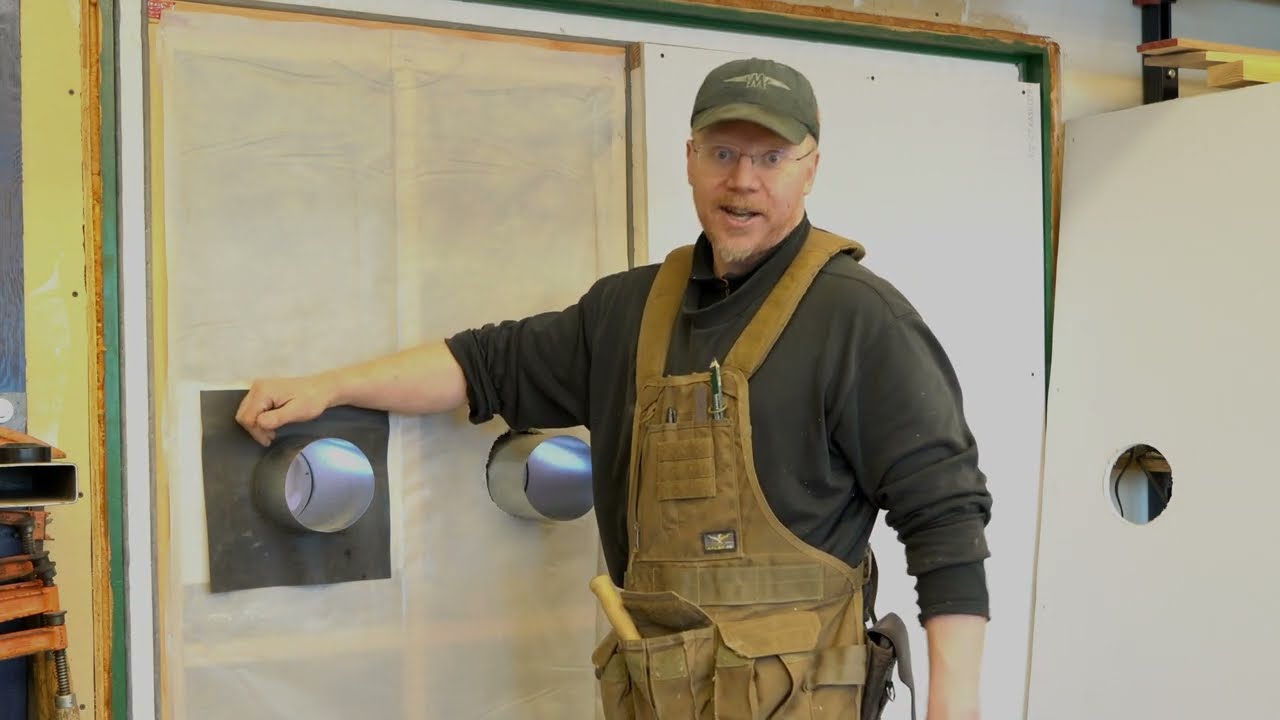

This video details a method for better air sealing of holes in exterior walls by using styrofoam boards to block out known locations for penetrations. The best air sealing can be achieved when exterior duct stub outs/hoods such as HRV intake/exhaust, dryer, range hood, bath fans, etc. are installed before drywall. This pre-install enables the builder to fit and seal EPDM rubber gaskets over the resultant duct penetrations, as shown at 3:25 of the video. Inside connections are made to the stub outs later, after drywall installation. Even in cases where it isn't possible to cut the hole in the wall until the drywall is up, the end result is still a penetration that is much cleaner and easier to seal.
This technique has two advantages: First, it provides a fully supported surface at the vapor retarder level upon which to cleanly seal off external penetrations. Second, these foam blockouts help prevent auger bits from getting wrapped up in batt insulation when drilling through the walls, which can lead to huge chunks of insulation getting removed and a marked decrease in thermal efficiency in the impacted area.
The spray foam insulation gun with disposable brass tips can be found at dap.com/products-projects/product-categories/spray-foam-insulation/spray-foam-tools-accessories
Related CCHRC technical videos include:
Vapor retarder installation details: youtube.com/watch?v=R8RMR-e-LlE&list=PLBtw7qpC24vLes3TTm-6m7Zz7gWf1QgVo&index=2&pp=iAQB
Insulating a cathedral roof: youtube.com/watch?v=mOK-D3rsomw&list=PLBtw7qpC24vLes3TTm-6m7Zz7gWf1QgVo&index=3
Furring in an outside wall: youtube.com/watch?v=BFp3y0KIaqk&list=PLBtw7qpC24vLes3TTm-6m7Zz7gWf1QgVo&index=8
CCHRC website: cchrc.org
CCHRC YouTube channel: youtube.com/user/ColdClimateHousing
